How to Achieve Perfect Perforations on Plastic Film and Foil

Achieving perfect perforations on plastic film and foil begins with picking the right tools. When you use high-quality perforating blades for plastic film, every cut will meet your needs. You should pick blades that fit the plastic type and thickness. The blade’s quality can really change your results:

• Consistent blade geometry stops jagged edges or tearing in plastic.
• The right edge angle and surface finish help make smooth, clean cuts in plastic.
• Choosing the proper blade lowers scrap and saves time when working with plastic.

Maxtor Metal has trusted blades for many uses in the plastic industry. You can improve your work process by setting up carefully and using the best blades for your plastic jobs.

Key Takeaways

• Pick the right blade material and tooth shape for your plastic film type and thickness. This helps you get clean and strong cuts.
• Make sure the plastic film is clean and flat before you start. This stops uneven holes and keeps your blades safe from harm.
• Set the right tension and speed on your machine. This stops the film from tearing and keeps the holes even.
• Put in the blades carefully. Change the pressure and depth to make exact holes without hurting the plastic.
• Use vacuum suction and good machine controls to hold the film still. This helps keep the holes spaced evenly.
• Check the holes often for smooth edges and even patterns. This helps you find problems early and keep the quality high.
• Clean and take care of the blades after every use. This makes them last longer and keeps your work going well.
• Change blades that are worn out or broken right away. This keeps things safe and makes sure your holes stay high quality.

Blade Selection

Perforating Blades for Plastic Film

To get great results, you need the right perforating blades for plastic film. These blades make small holes or cuts in the plastic. This makes it easy to tear or pull apart the material. There are many blade types, but not every blade works for all plastic film. The best blade depends on how thick, bendy, or strong your plastic is.

There are many perforating blades for plastic film. You can pick from tool steel, high-speed steel (HSS), stainless steel, or tungsten carbide. Each blade material has special features that help you make clean, strong holes. If you have a special project, Maxtor Metal can make custom blades for you. You can send them your drawings or samples, and they will make blades for your plastic job.

Tip: Always pick the blade material and design that matches your plastic film. This helps you stop tearing, rough edges, and wasting plastic.

Materials and Coatings

The material and coating of your perforating blades for plastic film are very important. Some plastics are soft and sticky. Others are hard or rough. You need a blade that can cut your plastic without wearing out too fast.

Here is a table to help you compare blade materials and coatings:

Each blade material and coating works best for certain plastics. For example, PTFE-coated blades are good for sticky plastic. Tungsten carbide blades are best for rough or thick plastic films. Custom coatings and heat treatments can help your blades last longer and cut better.

Blade Types

There are many types of perforating blades for plastic film. Each type is good for different jobs. The best blade type depends on your plastic film and what you want to do.

Here is a table showing common blade types and their uses:

You can also pick L knives, V knives, or straight knives. Each type works best for certain plastic films. Rotary blades are good for smooth, long cuts on fast plastic webs. Straight blades help you make neat, straight cuts on plastic sheets.

Note: Custom blade shapes and tooth profiles let you control the size, space, and strength of each hole. This helps you get the right mix of easy tearing and strong plastic film.

Material Preparation

Film Cleanliness

Importance of Clean Film

You need to keep your plastic film clean before you start. Clean film helps each perforation be exact. The blade moves smoothly on clean plastic. Dirt, dust, or oil can make the blade slip. This causes uneven lines in the plastic. Clean film also protects your blade from damage. It helps your equipment last longer.

Common Contaminants and Their Effects

Plastic film can get dirty from many things. Dust, oil, glue, and drinks like soda can stick to it. These things make perforating harder. Dust and dirt can block the blade or make rough edges. Oil and glue can make the blade slide too much. Dirty plastic can cause weak spots or missing holes in the line.

Recommended Cleaning Methods

Always clean your plastic film before you perforate it. Use lint-free wipes or air blowers for dust. For sticky stuff, use a cleaner made for plastic. Test the cleaner on a small piece first. This helps you avoid damage. Keep your work area clean and airy. This stops new dirt from landing on the film.

Tension and Flatness

Proper Tension Adjustment Techniques

Good tension is important for perfect perforation. If the film is loose, the blade may skip. This makes uneven holes. If the film is tight, it can tear. Use tension control systems to keep the film steady. Brakes slow the roll. Unwind motors feed the film. Dancer rollers keep the film flat and straight.

Methods for Ensuring Flatness

Flat film gives you the best results. Check for wrinkles or folds before you start. Do regular flatness checks while working. Dancer rollers and good winding help keep the film smooth. Make sure the film lays flat on the machine. Even small bumps can mess up the holes.

Consequences of Improper Tension or Uneven Surface

Bad tension or uneven film can ruin your work. Loose or wrinkled film makes the blade jump. This causes missed or double holes. Tight film can tear and ruin the product. Uneven surfaces can make the rows of holes crooked. This lowers the quality of your plastic sheets.

Handling Tips

Safe Handling and Transport

Handle plastic film gently to keep it ready. Store film in a clean, dry place. Do not touch the film with bare hands. This stops oil from getting on it. Wind the film right to protect the edges. Make sure reels and cases are not bent. This keeps the plastic safe for perforation.

Best Practices for Laying Out Film

Keep your area clean and bright when laying out film. Align the film carefully on the machine. Small mistakes can cause wrinkles or bad holes. Unroll the film slowly to avoid sudden tension changes. Careful alignment and slow unrolling help you get good perforated plastic.

Installation Precautions

Keep sharp things away from the plastic film. Make sure the film is not twisted or folded. Control static electricity in dry places. This stops dust from sticking. Check the film for damage before you start. These steps help you avoid problems and get good perforated sheets.

Equipment Setup

Setting up your plastic perforation equipment is a key step in the perforation process. You need to make sure every part of your perforating systems works together. This helps you get clean, even holes and strong perforated plastic sheets. Good setup also keeps your perforating tooling and machinery safe and running well.

Blade Installation

Proper blade installation is the first step in the perforating process. You want your perforating blades to cut clean holes and create the right patterns in your plastic. Follow these steps for safe and effective installation:

1. Turn off and unplug your plastic perforation equipment before you start.
2. Put on cut-resistant gloves and safety glasses to protect your hands and eyes.
3. Gather all tools you need, such as Allen wrenches, screwdrivers, a torque wrench, cleaning cloths, lubricating oil, and alignment gauges.
4. Remove the old blade by loosening the screws. Hold the blade so it does not fall.
5. Align the new blade with a gauge or ruler. Make sure the blade holes and edges match the machine and the direction of the plastic.
6. Hand-tighten the screws first. Then use a torque wrench to tighten them to the right level. Do not over-tighten.
7. Check the blade to make sure it is secure, straight, and clean. Wipe the blade holder and nylon anvil to remove any debris.
8. Run a test with sample plastic at a slow speed. Look for clean, even perforations and correct any problems with alignment or pressure.
9. If you see issues, adjust the blade force, speed, or depth. Make sure the plastic is loaded correctly.
10. Clean and oil the blades often. Sharpen them as needed and keep a record of maintenance.

Tip: Careful blade installation helps you avoid uneven holes, jagged edges, and damage to your perforating systems.

Pressure and Depth

You must set the right pressure and depth for your perforating blades. Too much pressure can tear the plastic or make the holes too big. Too little pressure can leave incomplete perforations or weak patterns. Use the controls on your advanced plastic perforation equipment to adjust the blade depth. Check the first few sheets for hole size and pattern quality. Adjust as needed until you see perfect perforated lines and strong plastic.

A table can help you remember what to check:

Speed Adjustment

Speed plays a big role in the perforating process. If you run your perforating systems too fast, you may get uneven holes or missed patterns. If you go too slow, you lose time and may overheat the blades. Start at a low speed and watch the first few sheets. Look for clean, even holes and straight perforated lines. Increase speed slowly while checking the quality of the perforation. Find the best speed for your plastic and the patterns you want.

Note: Each type of plastic and each perforation pattern may need a different speed. Always test before starting full production.

Good equipment setup helps you get the most from your perforating technologies. You will see strong, clean perforated plastic with the right holes and patterns every time.

Perforation Techniques

To make good perforations on plastic film and foil, you need to know how to set patterns, keep them the same, and stop tearing. Pick the right perforation pattern for each kind of plastic. Use advanced machines and follow smart steps to make strong perforated plastic sheets for different uses.

Perforation Patterns

You can make many patterns on plastic film. Each pattern is made for a special use. The space and size of holes change how strong, bendy, and nice the plastic looks. Match the pattern to the plastic type and what you want it for.

PE Film

Polyethylene (PE) film is soft and bends easily. Use bigger spaces between holes, about 5-10 mm. Make medium holes from 0.5-1 mm. This keeps the film strong and stops it from ripping. Perforated PE sheets are great for packing fruits and veggies. They let air in but stay tough.

Tip: Try your perforation pattern on a sample PE film first. Change the space and hole size to fit your plastic’s thickness and bendiness.

PP Film

Polypropylene (PP) film is tougher and less bendy than PE. Use closer spaces, about 2-5 mm. Make smaller holes from 0.3-0.7 mm. This makes the film strong and stops it from ripping. Perforated PP sheets are good for wrapping bread and other foods.

• Use straight or rotary blades for PP film.
• Watch the hole size and space to keep the pattern even.

PET Film

Polyester (PET) film is clear and strong. Use small, exact holes from 0.2-0.5 mm. Space them 3-7 mm apart. This works well for things like medical packs where looks and strength matter. Always test and change your pattern for the plastic’s thickness and what you need.

Consistency Tips

Keeping your perforation pattern the same is very important. You need to fix common problems and use good ways to keep holes and patterns even.

Common Consistency Issues

You might see some problems when making holes in plastic film:

• Holes are not spaced evenly
• Hole sizes change
• Rows of holes do not line up

These problems can make the plastic weak, lower quality, and waste material when you need perfect patterns.

Solutions for Consistency

You can fix these problems by using better machines and careful setup:

• Laser perforation makes tiny holes in perfect patterns very fast.
• Electronic centering helps line up holes and keeps spacing even.
• Needle perforation with special collars (2″ and 4″ wide, with 30 or 60 holes per square inch) keeps hole size and space the same.
• Macro hole punching lets you pick hole sizes (from 1/8″ to 1/4″) and keeps patterns even with electronic controls.
• These ways help keep the film strong and stop weak spots from bad holes.

Note: Check your perforated plastic sheets often. Change your machines and patterns if you need to keep quality high.

Vacuum suction and machine accuracy help make clean and even holes. Vacuum suction holds the plastic tight while cutting. This stops the film from moving or lifting, which can cause mistakes and rough edges. Good vacuum suction keeps the plastic still and helps make smooth edges. Machine accuracy makes sure the blade fits the plastic’s thickness. This helps blades last longer and keeps holes clean. Vacuum pull rolls keep the plastic tight, even when moving fast. This stops stretching and damage. These tools help you keep your holes even and work quickly.

Avoiding Tearing

You need to stop tearing when making holes so your plastic sheets stay strong. Follow safe steps and learn from common mistakes.

Operational Precautions

• Keep the film tight but not too tight. Too much tension can rip it.
• Pick the right blade type and make sure it is sharp for your plastic.
• Use vacuum suction and controls to hold the film still.
• Watch the process and change patterns, speed, and pressure if needed.

Tip: Always check your machines before you start. Clean blades and surfaces help stop damage and tearing.

Typical Mistakes and Cases

You might make mistakes when perforating plastic. Here is a table with common errors, why they happen, and how to stop them:

One packaging line had lots of tears because the tension was wrong. The team fixed this by adding an automatic tension control system. You can stop these problems by checking and changing your tension controls often.

Callout: Always use sharp blades and set tension right. Dull blades and bad tension can make rough edges, tears, and waste plastic.

You can make perfect holes in plastic film and foil by knowing the right patterns, keeping them even, and avoiding mistakes. This helps your perforated plastic sheets meet top standards for every use.

Quality Control

Inspecting Perforation

You need to check every hole to make sure your plastic sheets are good. Look at the holes to see if the edges are smooth and all the same size. Check the patterns to see if they match what you want. Use a magnifying glass or digital microscope to find tiny problems. If you see rough holes or patterns that do not match, you should change how you make the holes. Always look at both sides of the film. Sometimes, problems only show up on one side. Make a checklist for your checks. This helps you find problems early and keep your sheets high quality.

Tip: Use bright lights when you check your sheets. Shadows can hide small problems in the holes or patterns.

Measuring Consistency

Making every sheet the same is important. You want all the holes and patterns to match. Use a perforation tester to see how much force it takes to tear along the line. This tool gives you exact results and helps you change settings for different plastics. Write down your test results and save them for later. Test your sheets often while you work. This helps you find problems before they get worse. It also saves plastic and keeps people safe. When your holes are always the same, people can open packages easily and the plastic does not fail.

Here are some ways to keep your holes and patterns the same:

• Use a perforation tester to check how strong the tear is.
• Change your settings for each kind of plastic.
• Write down and look at your test results for every batch.
• Test samples often while making sheets.
• Compare your holes and patterns to your best samples.

A table can help you keep track of your checks:

Troubleshooting

If you find problems in your plastic sheets, fix them right away. First, check if the pressure is too high. Too much pressure can rip the film and mess up the holes. If you see ballooning or zippering, add more vent holes so air can get out. Try using film that already has holes if you can. Make sure the holes are in the right spots for your product. Change your machine settings to stop damage when sealing or shrinking.

Follow these steps to fix common problems:

1. Check the pressure on your pinwheel device. Lower it if the film rips.
2. Add more vent holes to let air out.
3. Use film with holes already in it for better air flow.
4. Make sure all holes are there and in the right pattern.
5. Take care of your machines and change settings to stop damage.

Note: Keep extra air out of the package when wrapping. Good vent holes help stop ballooning and other problems.

By doing these things, you keep your process working well and your plastic sheets strong. Checking often and fixing problems fast helps you make great products every time.

Maintenance

Blade Care

Taking care of your perforating blades helps you get clean cuts and keeps your production running smoothly. You should always clean your blades after each use. Use warm water and mild soap with a soft cloth or sponge. Avoid steel wool or rough pads because they can scratch or dull the blade. Dry the blade right away to stop rust from forming. Store your blades with a guard to protect the edge and keep everyone safe.

You should also check your blades often for signs of wear. Look for dull edges, chips, cracks, or rust. If you notice any of these, sharpen the blade with the right tool, such as a whetstone or professional sharpener. Always keep the original angle and use even pressure. Wear cut-resistant gloves and keep your fingers away from the cutting edge during cleaning and sharpening.

Tip: Proper cleaning and maintenance can double the life of your blades and reduce how often you need to change them. This means better cuts, safer work, and less downtime.

Equipment Checks

Regular equipment checks keep your perforating system working at its best. Start by inspecting the blade alignment. Check for any wobbling or uneven movement. Clean the main shaft and flange before installing a new blade. Make sure the flange is flat, clean, and sits at a right angle to the shaft. Use the largest flange you can—about one-third to half the blade’s diameter—to keep the blade stable.

After installing a blade, let it spin freely for about 30 seconds. Listen for any strange noises or vibrations. Tighten all nuts and bolts properly to prevent the blade from slipping or getting damaged inside the machine. Always wear protective gear and make sure all machine guards are in place before you start.

Replacement Guidelines

Knowing when to replace your blades and equipment parts is key to keeping your operation safe and efficient. Here are some signs that it’s time for a replacement:

1. The blade feels dull and does not cut cleanly.
2. You see nicks, chips, cracks, or rounded edges on the blade.
3. The machine makes more noise or vibrates more than usual.
4. Cutting takes longer or the finish looks uneven.
5. The alloy edge wears down by 0.2mm or more.

When you replace a blade, handle it carefully to protect the sharp edge. Remove the old blade on a stable surface. Clean all parts before installing the new blade. If your machine uses sets of teeth or blades, replace them together to keep the rotor balanced.

Callout: Replace damaged or worn blades right away. This keeps your cuts precise and your team safe.

Regular maintenance and timely replacement help you get the best results from your perforating blades and equipment. You will see better performance, longer blade life, and fewer production stops.

Applications and Uses

Perforated Plastic Sheets

Perforated plastic sheets are used in many places. They are made by picking the right plastic first. Then, special blades or lasers make holes in the sheets. You can choose how big the holes are and what shape they have. You can also pick the pattern for the holes. Some sheets have round holes for air to move through. Others have slots to let water drain.

Here are some ways people use perforated plastic sheets:

• Packaging: These sheets are in food packages and freezer bags. The holes let air move, so food stays fresh.
• Industrial filtration and drainage: Special hole patterns help separate things and control water in factories.
• Construction: Builders use these sheets in panels and vents. The sheets help lower noise and let air flow.
• Medical: Hospitals use them for trays and containers. The plastic does not get damaged by chemicals and can be cleaned easily.
• Advertising: Stores and cars use these sheets for window ads. You can see out, but people outside see the ad.
• Specialized industrial uses: Factories use them in tanks and chemical machines. The plastic does not rust.

Perforated plastic sheets are light, so you can put them in place easily. They do not get ruined by chemicals or rust, so they last a long time. These sheets are strong and bendy, so you can use them for many things.

Industry Uses

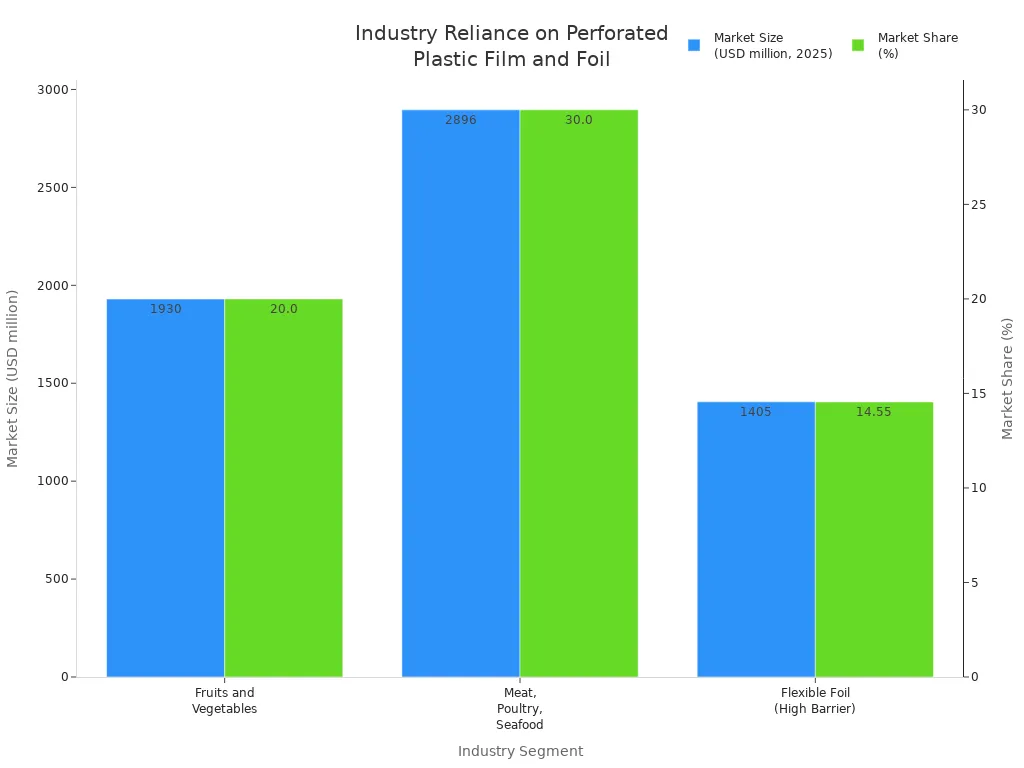

Many businesses need perforated plastic sheets every day. You can see how different industries use these sheets in the table below:

The food industry uses perforated plastic sheets the most. These sheets help keep fruits, veggies, meat, and seafood fresh. Flexible foil packaging uses these sheets to keep food safe from air and water. Other industries, like building and medical, use them for sound control, air flow, and clean packaging. The sheets help food last longer, spoil less, and stay clean.

Custom Solutions

Sometimes you need special perforated plastic sheets. Companies can make sheets with custom hole patterns and sizes. Some use lasers to make tiny, exact holes. This helps in microwave food packs, so steam can get out safely. Tobacco packs use laser holes to control air and burning speed. Special packs use custom holes to control gas or water, making products better.

Companies like Folene Packaging and Spectrum Plastics make custom sheets for you. They help you pick the hole size, pattern, and color. Their teams use labs and quick service to give you what you want. Many people say their products work better after using custom sheets.

You can use custom perforated plastic sheets in food, medical, electronics, and car parts. These sheets help you fix problems, make things safer, and meet specific needs. When you know how these sheets are made, you can ask for what you want. Custom sheets give you more choices and let you use them in new ways.

You can make perfect holes in plastic film and foil if you follow steps. Pick the right blade for your job. Get your materials ready before you start. Set up your equipment carefully so everything works well. Use high-quality perforating blades from Maxtor Metal for good results. Check your work often to catch mistakes early. Take care of your tools so they last longer and work better.

Tip: Always check your work and keep your tools clean. This helps your production go well and makes your products look great.

FAQ

What is the best way to choose a perforating blade for plastic film?

You should match the blade material and tooth profile to your film type and thickness. For example, use tungsten carbide for thick films and PTFE-coated blades for sticky plastics. Always test on a sample before full production.

How often should I replace my perforating blades?

Check your blades daily for dullness, chips, or cracks. Replace them when you see rough cuts or increased resistance. Sharp blades help you get clean, even perforations and reduce waste.

Can I use the same blade for different types of plastic film?

You should not use one blade for all films. Each plastic type needs a specific blade material and tooth design. Switching blades for each job helps you avoid tearing and keeps your cuts precise.

What should I do if my film keeps tearing during perforation?

Check your film tension and blade sharpness first. Lower the tension if it feels too tight. Replace dull blades. Make sure your film lays flat and your machine settings match the film type.

How do I keep my perforation patterns consistent?

• Use tension control systems.
• Check blade alignment often.
• Test samples regularly.
• Adjust machine speed and pressure as needed.

Consistent setup and regular checks help you avoid uneven holes.

How do I clean and store perforating blades safely?

Clean blades with mild soap and a soft cloth. Dry them right away. Store each blade with a guard in a dry place. Always wear gloves when handling blades to protect your hands and the blade edge.
