What does Press Brake Tooling Mean?

Press brake tooling, also known as press brake dies or forming tools, refers to the specialized tools used in a press brake machine to bend and form sheet metal into desired shapes. Unlike cutting blades, press brake tooling applies controlled force to the metal workpiece, causing it to plastically deform along a specific line or across a defined area. The term “press brake tooling” encompasses a wide variety of punches (the upper tool) and dies (the lower tool) that work together to create bends of different angles, radii, and forms in sheet metal.

Uses and Applications of Press Brake Tooling

Press brake tooling is fundamental in sheet metal fabrication across numerous industries. Its key applications include:

• Automotive Industry: Forming car body panels, chassis components, and structural parts.
• Aerospace Industry: Bending and shaping aircraft skins, brackets, and structural elements made from aluminum and other alloys.
• Appliance Manufacturing: Forming housings, panels, and internal components for refrigerators, washing machines, ovens, and other appliances.
• Construction Industry: Manufacturing metal roofing, cladding, door and window frames, and structural supports.
• 전자 산업: Bending enclosures, brackets, and chassis for electronic devices.
• Furniture Manufacturing: Forming metal parts for chairs, tables, and other furniture items.
• Agricultural Equipment: Manufacturing metal components for tractors, harvesters, and other agricultural machinery.
• General Metal Fabrication: Creating custom metal parts and components for various applications.

Common Materials for Press Brake Tooling

The materials used for press brake tooling must withstand high forming pressures and resist wear and deformation to ensure accuracy and longevity. Common materials include:

• Carbon Steel (e.g., C45, 1045): Suitable for less demanding applications and forming softer materials like aluminum and mild steel. Often used for standard or less frequently used tooling.
• Alloy Steel (e.g., 42CrMo4, AISI 4140): Offers higher strength and wear resistance compared to carbon steel, suitable for more demanding bending operations and thicker materials.
• Tool Steel (e.g., D2, W1.2379, AISI D2): Provides excellent wear resistance and is used for high-volume production and forming harder materials, ensuring consistent bend accuracy over a long lifespan.
• Powder Metallurgy Steels: Offer superior wear resistance and toughness due to their uniform microstructure, ideal for demanding and high-precision forming applications.

Surface hardening processes like induction hardening or nitriding are often applied to press brake tooling to increase surface hardness and wear resistance, extending the tool’s life and maintaining forming accuracy. Coatings such as titanium nitride (TiN) can further enhance surface hardness and reduce friction.

Common Press Brake Tooling Shapes

Press brake tooling comes in a vast array of shapes and sizes, categorized primarily into punches (top tools) and dies (bottom tools). Common shapes include:

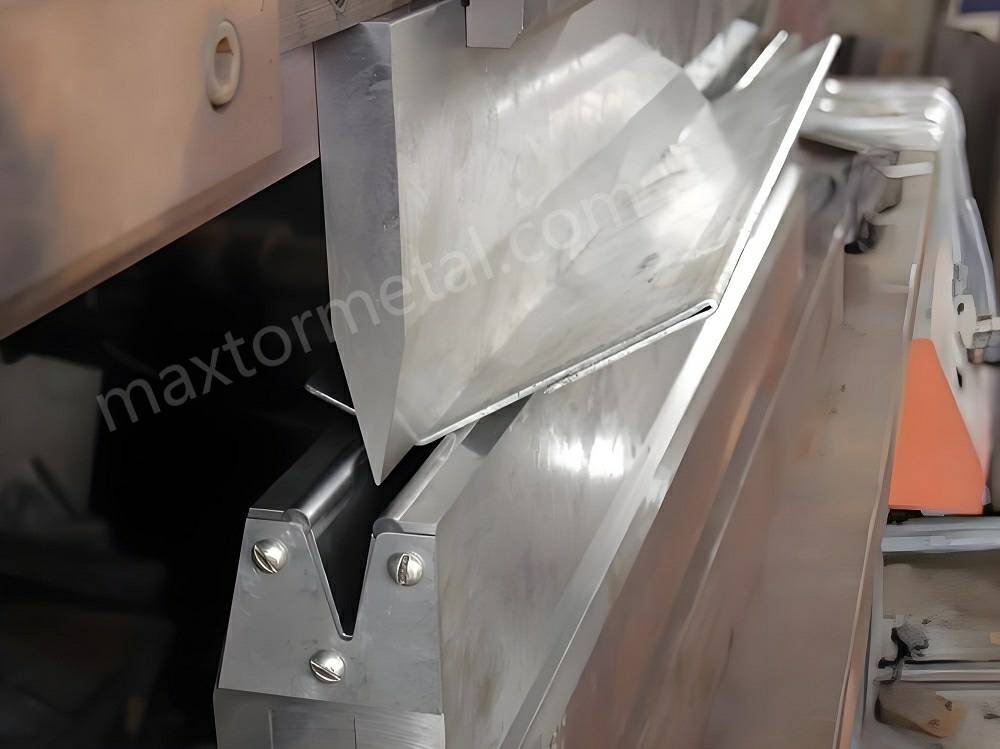

• V-Punches and V-Dies: The most common type, used for creating angular bends. The angle of the V (e.g., 30°, 45°, 60°, 90°) and the opening width of the die determine the bend angle and inside radius.
• Gooseneck Punches: Feature a curved neck that allows for forming flanges or bends with obstructions.
• Offset Punches: Used to create bends that are offset from the edge of the workpiece.
• Radius Punches and Dies: Have rounded working surfaces to create bends with specific inside radii.
• Hemming Punches and Dies: Used to create folded or hemmed edges for safety or aesthetics.
• Flattening Dies: Used to flatten previously formed bends or to create sharp corners.
• U-Bending Tools: Specialized tools for forming U-shaped channels.
• Z-Bending Tools: Designed for creating Z-shaped profiles in sheet metal.
• Channel Forming Tools: Sets of punches and dies designed to form channels with specific dimensions.
• Custom Tooling: For complex or unique part geometries, press brake tooling can be custom-designed and manufactured.

The working principle of press brake tooling involves the press brake machine forcing the punch and die together with the sheet metal workpiece in between. The shape of the punch and the corresponding cavity in the die dictate the final form of the bend. The accuracy of the bend angle, radius, and flange length is determined by the precision of the press brake tooling and the control of the press brake machine. Proper selection of tooling based on material type, thickness, and desired bend characteristics is crucial for achieving accurate and consistent forming results.
