초경합금 인레이(Inlaid Carbide)로 수명을 연장한 로터 페레타이저 블레이드

If you run underwater pelletizing on PP or PE, you feel blade life in your uptime, pellet geometry, and cost per ton. When blades hold a clean edge longer, you swap less, stabilize pellet length and roundness, and trim changeover hours. Failures usually start in a few familiar places: steady abrasion from fillers and pigments, adhesive wear (galling) against the die face, corrosion from the water loop, small misalignments that grow with heat and runout, and finally the chipped edges that turn into tails and fines.

This guide compares tool steel options (D2, M2, 440C) against inlaid tungsten carbide (WC–Co) for rotor pelletizer blades, then shows the operating practices that actually extend life—gaps, alignment, water and filtration, and resharpening discipline—before quantifying lifecycle economics so you can decide where carbide really pays back.

핵심 요약

• Tool steels balance toughness and cost; inlaid carbide rotor pelletizer blades materially improve abrasion life but demand tighter alignment to avoid chipping.
• Hold what you set: manage blade-to-die engagement, hub/die runout, and die-face flatness; most “bad blade” problems are tolerance problems in disguise.
• Get the water right: temperature control and filtration reduce galling, corrosion, and fines; treat the loop like a precision component.
• Regrind by data, not habit: restore geometry, verify hardness, and log tons-per-edge, fines, and motor current to schedule interventions.
• Use a cost-per-ton model to decide when carbide pays: the higher the abrasion and downtime cost, the earlier WC–Co wins.

Material trade-offs

Tool steels (D2, M2, 440C) at a glance

D2, M2, and 440C remain the common baselines for pelletizer blades. D2 is a cold-work tool steel that typically lands around 58–62 HRC and brings strong abrasion resistance thanks to chromium/vanadium carbides; it’s a reliable starting point for PP/PE. M2, a high-speed steel, can reach roughly 60–66 HRC with better hot hardness and useful toughness when thermal cycling or high surface speeds are in play. 440C trades some wear resistance for corrosion resistance (often 56–60 HRC), which can matter if your water chemistry tends to stain, pit, or scale components.

If you need a concise refresher on how these materials differ in plastics service, see the internal comparison overview in the MAXTOR library: a neutral discussion of hardness and wear/corrosion behaviors appears in the brand’s material roundup, the comparison of pelletizing blade materials and durability (MAXTOR METAL, 2025). For general steel properties with dated context, FCS Steel’s 2025 notes on balancing D2 and 440C in wet service provide background, and Sanderson’s HRC overview (2020) offers a tool steel hardness reference chart.

Inlaid tungsten carbide (WC–Co) edge retention vs. brittleness

Inlaid carbide rotor pelletizer blades use a WC–Co edge segment brazed or bonded into a steel body. The WC grains confer superior abrasion resistance, so edges stay sharp longer on filled resins. Multiple vendors and technical summaries in 2025 describe carbide’s markedly higher hardness and wear resistance versus conventional tool steels. As an accessible primer, Everloy’s 2025 column on cemented carbide behavior and wear explains why submicron WC and binder chemistry matter. The trade-off is fracture toughness: carbide resists wear but is less forgiving to shock and misalignment than steel. That’s why alignment, runout, and smooth die faces matter more when you step up to WC–Co.

Corrosion, coatings, and die-face galling considerations

Wet cutting invites tribocorrosion. When water chemistry is aggressive, 440C or a coated tool steel can hold an edge longer by resisting adhesion and corrosion. Thin-film coatings—including CrN, TiN, and DLC—can reduce adhesive wear on the die and/or blade surfaces when the OEM allows it. HEF describes chromium nitride’s low-friction, wear-resistant properties in its technical literature (2025). Always approve coatings with the die and pelletizer OEM because surface energy, coefficient of friction, and film adhesion will alter the engagement behavior.

Operating practices that extend life

Gap and alignment tolerances that actually hold

The cleanest cut with the longest die and blade life comes from consistent, controlled engagement. Public OEM documents and brochures typically describe how knife pressure/positioning is adjusted, but rarely publish universal, machine-agnostic numbers for knife-to-die engagement, hub runout, or “correct” clearance. As a result, the practical way to set targets is to start from conservative internal benchmarks, then tune to pellet quality, motor current, and die/blade wear while following your OEM manual.

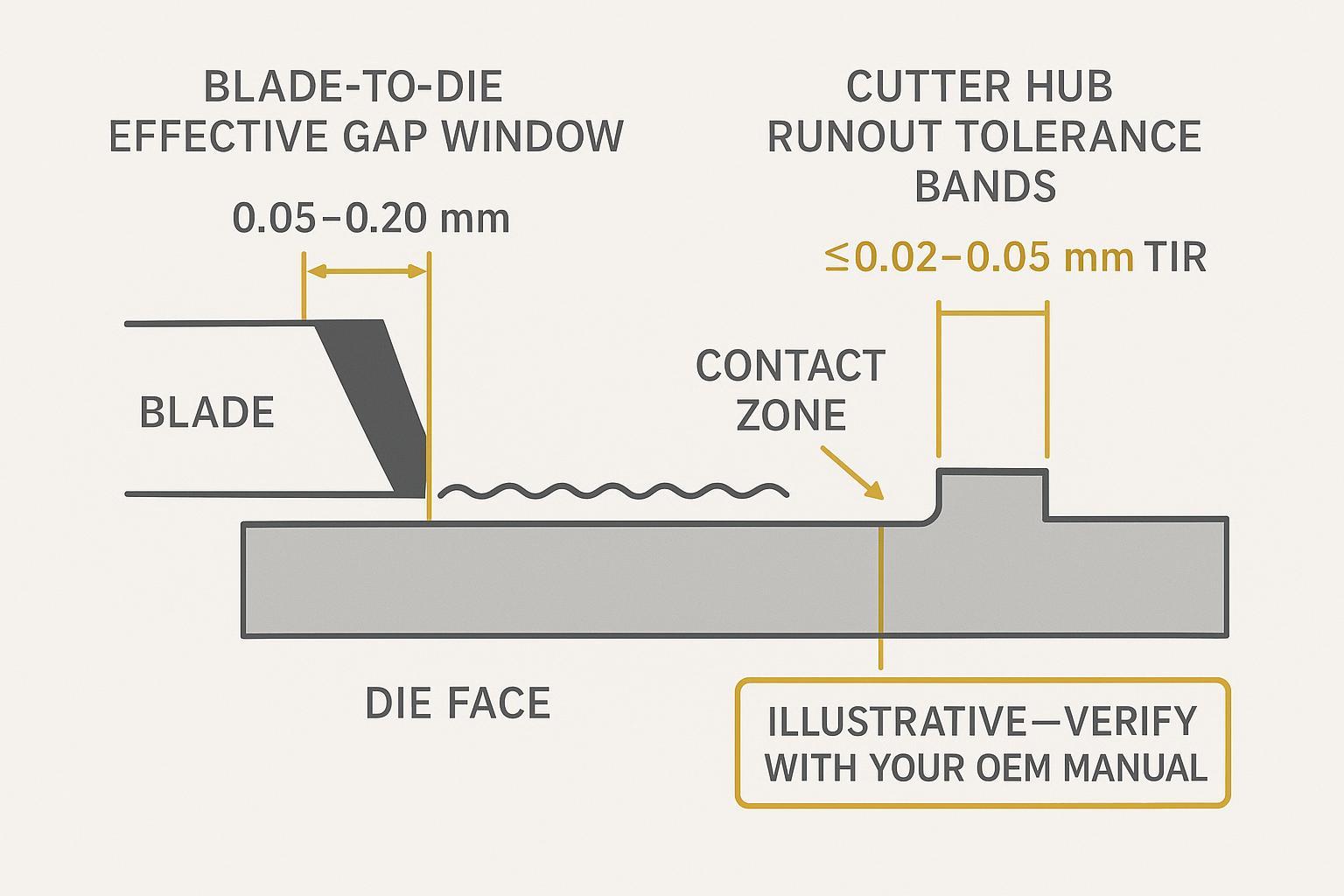

As illustrative starting points (not specifications): many teams treat underwater die-face cutting as near-zero running contact with controlled force; where clearance is used as a representation (more common in non-die-face cutter setups), engineers sometimes begin in a 0.05–0.20 mm window to avoid continuous rub while still separating cleanly. On the rotating side, a commonly used commissioning goal is to keep cutter hub total indicated runout (TIR) low (often discussed in the ≤0.02–0.05 mm neighborhood) and verify die-face flatness before commissioning. Treat these as internal baselines only—your OEM manual and on-machine measurements are the authority.

A structured commissioning pass reduces risk: confirm die-face flatness and surface finish under magnification, measure hub and shaft TIR at multiple temperatures, warm up to the target water temperature, then engage incrementally while watching pellet length variance and cutter motor current. ECON’s EUP brochure describes servo-positioned knife systems and controlled engagement (ECON, 2022). For day-to-day troubleshooting, Plastics Technology’s underwater pelletizing checklist (2020) is a practical reference.

Process water and filtration targets

Think of the loop as an extension of your cutting interface. For many PP grades, plants stabilize around 40–50°C water to avoid sticking and tails while ensuring adequate cooling; validate with your resin data sheets. Filtration capability in modern loops is commonly staged: entry screens or belt filters in the 100–150 µm band, with self-cleaning filters downstream that can tighten to roughly 70 µm. Some processes with clarity or surface-finish sensitivity pursue finer melt-side filtration of 20–50 µm; just don’t confuse melt filtration with loop filtration. As a capability touchstone, MAAG’s product brochure (2020) and Adams Engineers’ water and drying system overview (2024) illustrate how OEMs approach temperature control and continuous filtration. The point isn’t a single magic micron—it’s consistency that suppresses scale, corrosion, and abrasive grit that chews up edges.

Resharpening geometry, counts, and documentation

Restore what worked. Die-face cutters typically run a single primary bevel with a flat back; regrinds should reset the edge angle, land width, and flatness while holding parallelism to avoid vibration. Replace habitual “three regrinds and done” rules with data triggers: log tons-per-edge or hours, fines percentage, pellet length standard deviation, and cutter motor current. When any metric crosses its control limits, schedule a regrind before damage propagates to the die.

A neutral example of QA traceability that supports reliable regrinds: suppliers can attach a packet for each batch with material certificates, hardness test results, and dimensional/parallelism reports, so maintenance teams can correlate edge life with measured properties. One public illustration of such documentation culture is 맥스터 메탈, which describes multi-stage quality checks and hardness verification on its site; teams can use similar packets—whoever the supplier is—to anchor acceptance criteria and regrind geometry targets. For a hands-on procedure to remove and re-seat blades without disturbing alignment, see the internal how-to on safe swaps and alignment, the step-by-step die-face blade replacement and alignment guide (MAXTOR METAL, 2025).

Pilot protocol (measurement template): tool steel vs. WC–Co on your line

If you don’t have publishable field data yet, you can still make a credible, apples-to-apples decision by running a short pilot with a defined measurement plan. The goal is not a perfect lab test—it’s repeatable on-machine evidence you can plug into your cost-per-ton model.

1) Keep the trial fair (controls)

• Same pelletizer and die, same resin grade, and the same filler level (ideally your most abrasive PP/PE SKU).
• Hold constant: die temperature profile, water temperature/flow, filtration settings, cutter RPM, and target pellet length.
• Run each blade set long enough to cross at least one meaningful wear interval (for example, to the first regrind trigger).

2) Define what “end of an edge” means (stop criteria)

Pick 1–2 objective triggers and use them for both materials:

• Pellet-quality trigger: fines % exceeds your internal limit, or pellet length standard deviation drifts beyond your control band.
• Load trigger: cutter motor current rises by a defined percentage over the baseline.
• Visual trigger: consistent edge chipping, die-face scoring, or unacceptable tails.

3) Log these fields every shift (minimum viable dataset)

• Tons produced on the current edge (or hours on edge)
• Changeover time (hours) and headcount
• Regrind count and regrind date
• Fines % (or a consistent proxy method) and pellet length variability
• Cutter motor current (baseline and trend)
• Notes: water temperature, filter ΔP (if available), any upset events

4) Report the outcome as ranges, not promises

At the end, summarize for each material:

• Tons-per-edge (median and range)
• Downtime hours per 1,000 tons (or per month)
• Regrinds per 1,000 tons
• Any failure mode you saw first (dulling vs. chipping vs. corrosion/galling)

Those four lines are usually enough to compute cost per ton and decide whether inlaid carbide rotor pelletizer blades are paying you back in your specific PP/PE service.

Lifecycle economics for inlaid carbide rotor pelletizer blades

Cost-per-ton model: changeovers, regrinds, uptime

Here’s the simplest version that captures the real money:

Cost per ton = (Blade purchase + Regrind cost + Changeover labor + Downtime cost) ÷ Tons produced on all usable edges.

Assumptions to document in your model:

• Throughput (t/h) and on-spec yield
• Downtime cost per hour (labor + lost margin)
• Blade price and expected number of regrinds
• Edge life (hours or tons) by material (tool steel vs carbide)
• Changeover hours per event and frequency
• Fines cutoff and pellet-length variance limits that trigger changeovers

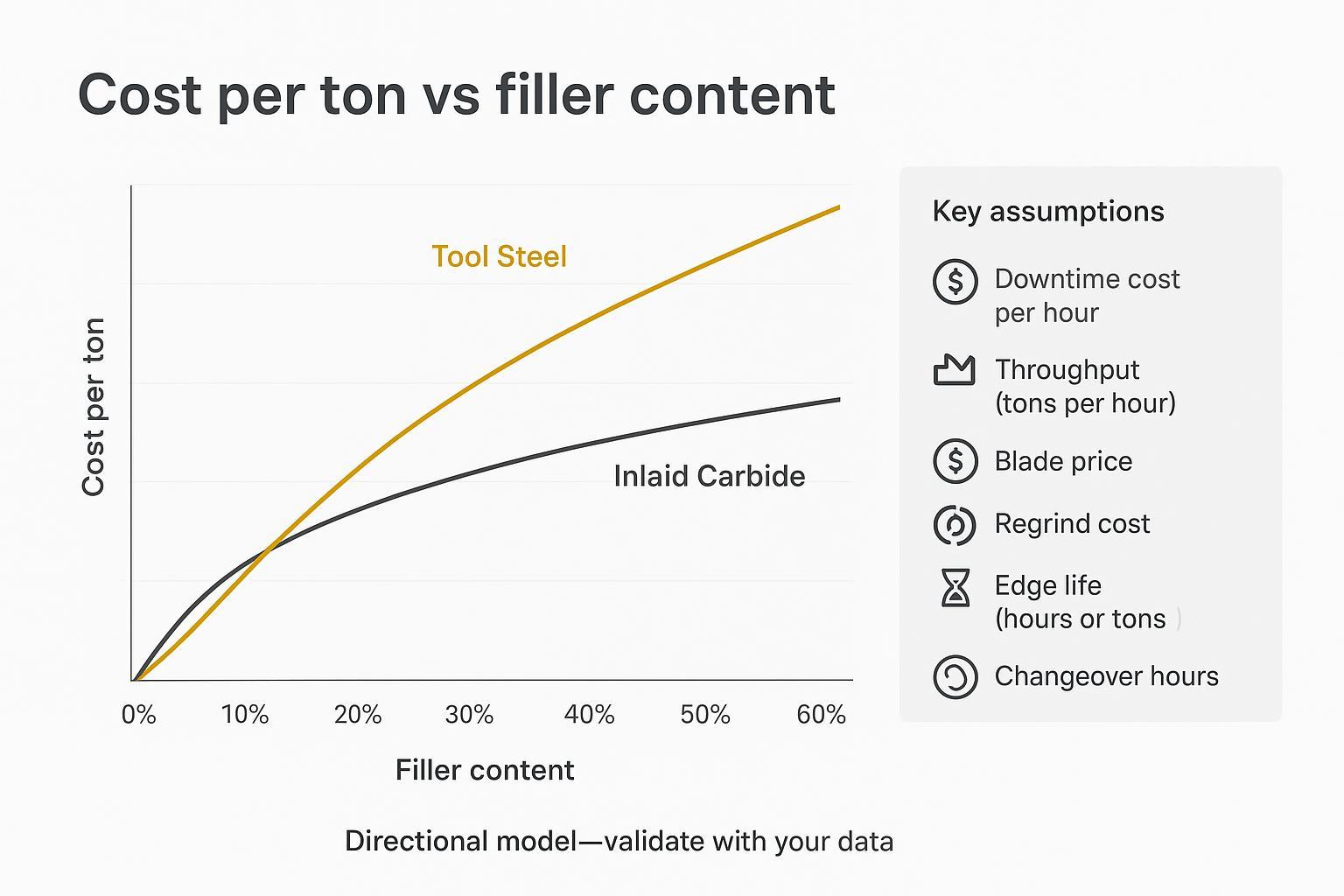

The graphic above is directional, not prescriptive. As abrasiveness increases (more minerals, glass, or grime in recycle), tool steel costs per ton rise faster because you regrind and change over more often. Inlaid carbide rotor pelletizer blades carry a higher purchase price, but their edge-life curve flattens in abrasive service—so the total cost per ton can cross below tool steel once fillers reach roughly the low-20s to 30% range. Validate these crossovers with your site data.

When carbide pays back (high-fill, recycle, glass/mineral)

Vendors and field notes commonly report multi-fold life improvements for carbide edges in abrasive duty. Treat those as ranges, not promises. In PP/PE with filler under 20%—your stated scenario—expect modest but real gains, often in the 1.5× to 3× band when alignment and water quality are disciplined. The fastest path to confidence is a controlled pilot: pick your most abrasive SKU, run matched lots with tool steel and with WC–Co inlaid edges, log tons-per-edge and downtime, and compute cost per ton for each.

For context on why the material step-up changes wear behavior, Everloy’s 2025 piece on cemented carbide microstructure and wear explains the mechanism in plain terms.

Risk management: chipping vs. die wear trade-offs

Carbide’s brittleness raises the stakes on alignment. Guard against chipping with tight hub TIR, die-face flatness, smooth coatings where approved, and controlled engagement force. On the other hand, too much rubbing at the die face accelerates grooving and destroys pellet shape. You’re constantly balancing clean separation with minimal contact. ECON’s servo-positioning documentation (2022) and Plastics Technology’s troubleshooting guide (2020) outline credible practices for walking that line.

Selection and integration checklist

Match the blade to your polymer, filler, and rotor geometry by first classifying the abrasion level and shock risk. D2 often suffices for general PP/PE duties; M2 helps when surface speeds climb and temperatures run hotter; 440C or a coated steel can defend against aggressive water chemistry. When abrasion is your primary enemy and you can truly hold alignment, inlaid carbide rotor pelletizer blades become compelling.

Verify compatibility and tolerances with OEM targets before ordering large batches. Where explicit figures aren’t public, treat ±0.01 mm on critical dimensions and ≤0.02–0.05 mm TIR as internal commissioning goals, then reconcile with your OEM manual. Keep a single source of truth for dimensions, fastener torques, and alignment procedures so every changeover is repeatable. For a practical walkthrough that respects alignment, see the die-face blade replacement guide with alignment tips (MAXTOR METAL, 2025).

Commissioning steps and ongoing QA traceability close the loop. Warm to operating temperature, verify water flow and temperature windows, engage incrementally while tracking pellet length variance and motor current, then lock down the settings and record them. Keep your QA packet with each blade batch—material certificates, hardness results, and dimensional/parallelism reports—and tie it to regrind logs so your life-per-edge curves are explainable. For a broader background on material choices and how they compare over time, the internal pelletizing blade material comparison (MAXTOR METAL, 2025) is a useful companion read.

작가

Tommy Tang is a Senior Sales Engineer at Nanjing METAL with 12 years of experience in pelletizing blades and polymer cutting applications. Certifications: CSE, CME, Six Sigma Green Belt, PMP.

Last updated: 2026-03-07. Scope: underwater pelletizing on PP/PE and similar polyolefins; always confirm machine-specific settings in your OEM manual.

References (selected)

• ECON. (2022). EUP Underwater Pelletizing Systems (brochure). https://www.econ.eu/downloads/econ-folder-eup_en_web.pdf
• Plastics Technology. (2020). Mitigating and troubleshooting underwater pelletizing issues (article/checklist). https://www.ptonline.com/blog/post/mitigating-and-troubleshooting-underwater-pelletizing-issues
• MAAG. (2020). Products and Services Sales Brochure (brochure). https://maag.com/wp-content/uploads/Products-and-Services-Sales-Brochure-02-27-20_press.pdf
• Adams Engineers. (2024). Underwater Pelletizing (EUP) Process Water and Drying System (overview). https://www.adamsengineers.com/products/product/extrusion/pelletizers/underwater-pelletizing-eup-process-water-and-drying-system/
• Everloy. (2025). Cemented carbide behavior and wear (technical column). https://www.everloy-cemented-carbide.com/en/column/782/
• HEF. (2025). Chromium Nitride (CrN) coating (technical literature). https://hef-na.com/coating/chromium-nitride/
• FCS Steel. (2025). D2 vs 440C tool steel comparison (technical article). https://www.fcssteel.com/d2-vs-440c-tool-steel-comparison-how-to-balance/
• Sanderson. (2020). Tool steel comparison chart (PDF reference). https://www.sanderson.co.za/download/tool-steel-comparison-chart.pdf

결론

In short, material fit, tolerances that actually hold, water loop discipline, and data-driven regrinds are what make blade life predictable. Inlaid carbide rotor pelletizer blades deliver their biggest wins when abrasion is high and alignment is tight; on milder PP/PE runs they still help, but the payback depends on your downtime cost and throughput. Next steps are straightforward: confirm your working ranges against the OEM manual for your pelletizer and die, and pilot WC–Co on your most abrasive grades to measure cost per ton with real site data. One question to keep asking as you tune: are we solving a blade problem—or a tolerance problem that just looks like one?
