3-knife Trimmer Blades

What do 3-Knife Trimmer Blades Mean?

3-knife trimmer blades, also known as three-knife cutter blades, are sets of precision cutting knives used in a three-knife trimmer machine. These machines are essential in the printing and bookbinding industries for simultaneously trimming three sides (fore-edge, head, and tail) of a stack of printed products like books, magazines, brochures, and catalogs to their final, clean dimensions. A set of 3-knife trimmer blades typically includes a front (fore-edge) blade and two side (head and tail) blades that work in a coordinated manner to achieve accurate and efficient trimming.

Uses and Applications of 3-Knife Trimmer Blades

3-knife cutter blades are critical for finishing printed materials in high-volume production environments. Their main applications include:

• Bookbinding: Trimming the edges of book blocks after sewing or perfect binding to create clean, even edges for the cover to be attached.
• Magazine and Brochure Production: Final trimming of magazines, brochures, and catalogs after printing and folding to achieve the correct size and a professional finish.
• Softcover and Hardcover Book Production: Ensuring precise dimensions for both softcover and hardcover books before they are ready for distribution.
• Commercial Printing: Trimming various printed products like booklets, journals, and directories.
• In-Line Finishing Systems: Integration into automated printing and binding lines for seamless trimming of finished products.

Common Materials for 3-Knife Trimmer Blades

The materials used for 3-knife trimmer blades must be high-quality to ensure clean cuts, long blade life, and resistance to wear, especially when processing different types of paper and coatings. Common materials include:

• High-Speed Steel (HSS) (e.g., M2, M42): Offers good wear resistance and can maintain a sharp edge at high cutting speeds, suitable for a wide range of paper stocks.
• Alloy Tool Steel (e.g., D2, A2): Provides excellent wear resistance and is ideal for processing thicker paper, coated stocks, and high-volume production, ensuring consistent cut quality over extended periods. D2 steel is particularly favored for its durability.
• Carbide-Tipped Blades: Feature tungsten carbide inserts at the cutting edge, offering exceptional hardness and wear resistance. These are used for very high production volumes and when processing abrasive paper or materials with coatings that can quickly dull steel blades. Carbide tips significantly extend blade life and reduce downtime for sharpening.

The blades are precision ground and often hardened and tempered to achieve the optimal balance of sharpness and durability. The surface finish is critical to minimize friction and ensure clean cuts without tearing or feathering the paper edges.

Common book trimmer blade Shapes

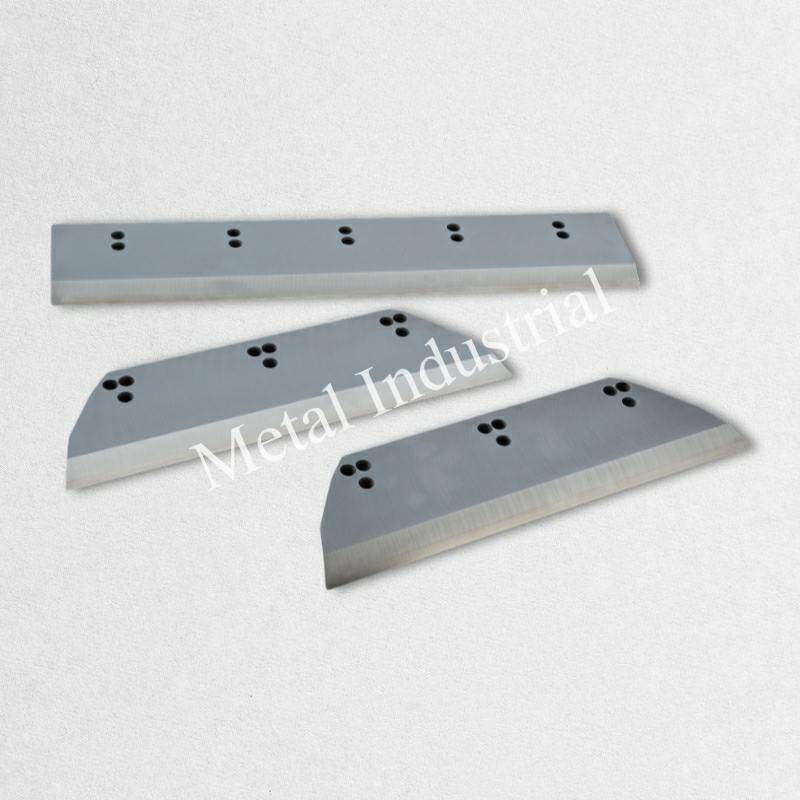

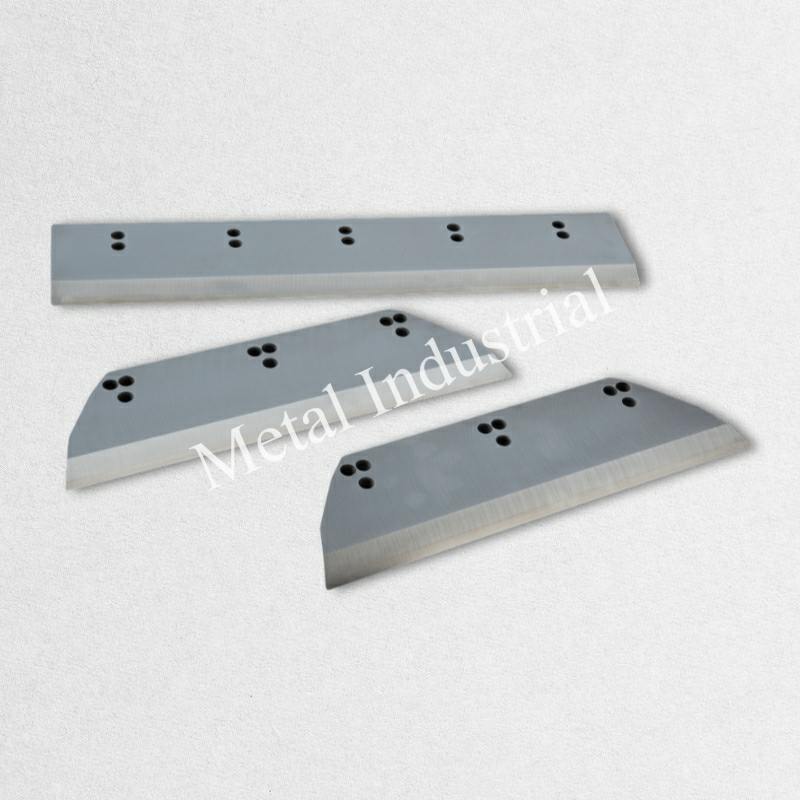

A set of 3-knife trimmer blades typically consists of three blades with specific shapes and bevels optimized for their respective trimming tasks:

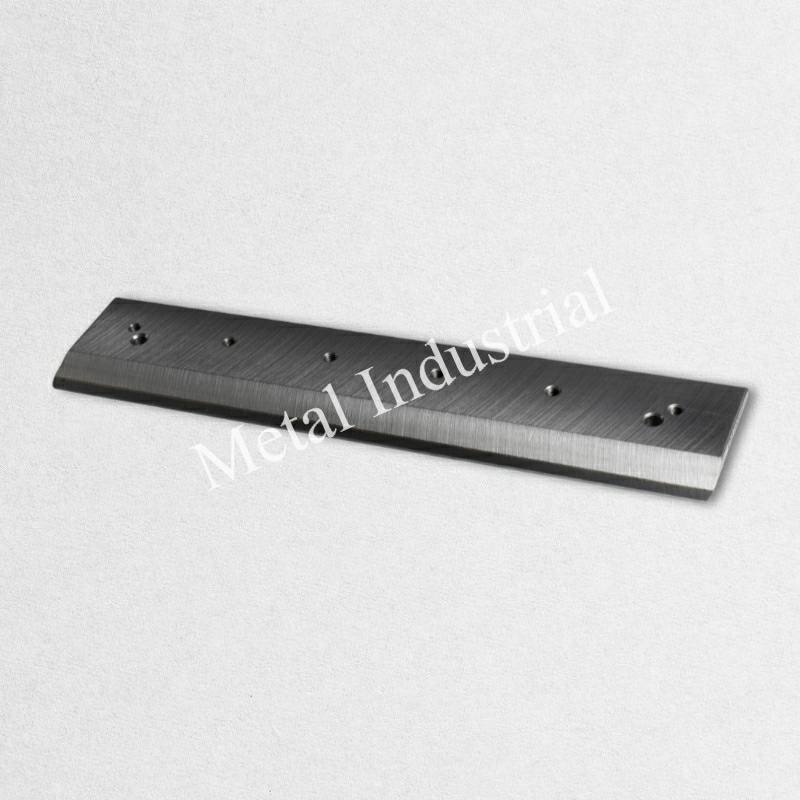

• Front (Fore-Edge) Blade: This blade usually has a straight cutting edge and is responsible for the main trim of the open edge of the book block or printed product. The bevel angle is crucial for clean cutting without pulling or tearing the paper.

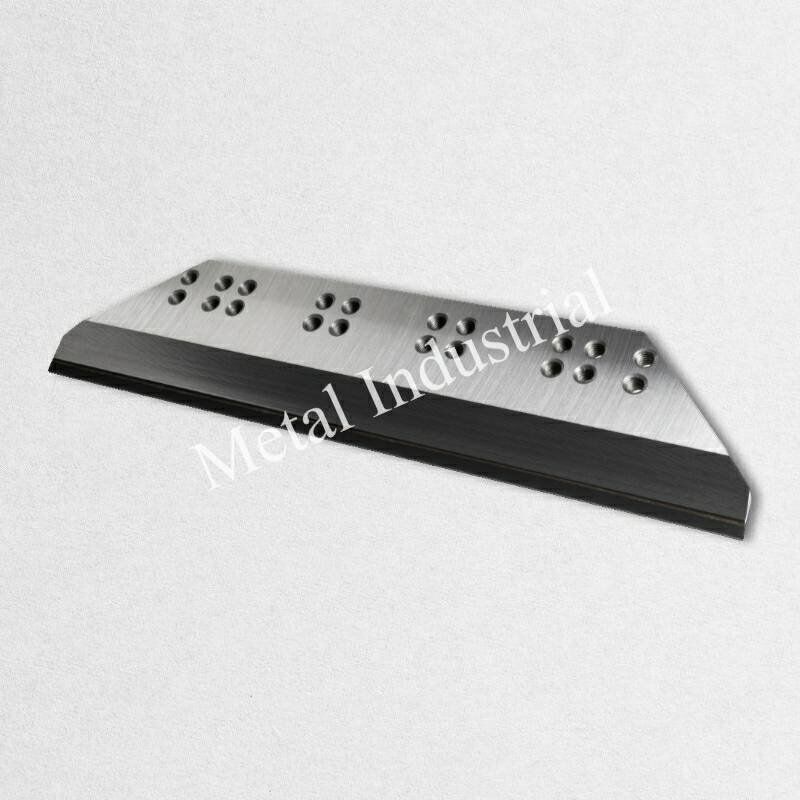

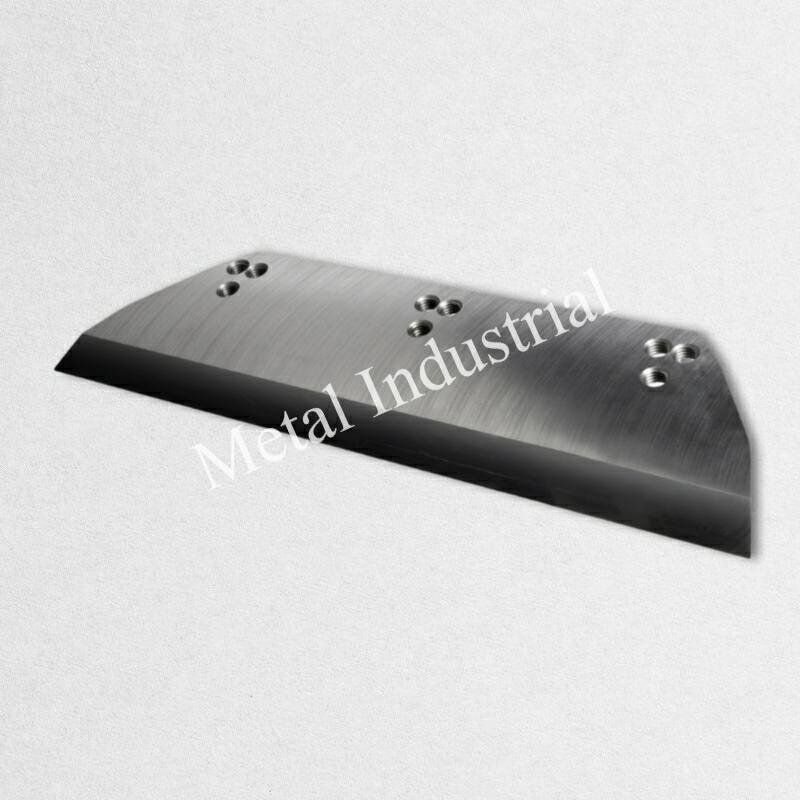

• Side (Head and Tail) Blades: These two blades trim the top and bottom edges of the book block. They are often shorter than the front blade and are synchronized to move simultaneously. Their shape and bevel are designed for precise and clean cuts on these bound edges.
• Solid Blades: The cutting edge is an integral part of the blade material.
• Inlaid Blades: Feature a strip of high-performance material (like HSS or carbide) inlaid into a softer blade body, offering a balance of cost-effectiveness and performance.

The working principle of 3-knife trimmer blades involves the synchronized movement of the three blades to trim the three open sides of a stack of printed products in a single cycle. The stack is precisely positioned, and then the front blade moves horizontally to trim the fore-edge, while the two side blades move vertically to trim the head and tail. The accuracy of the cut depends on the sharpness and alignment of the blades, as well as the precise mechanical operation of the trimmer machine. Regular sharpening and proper maintenance of the 3-knife trimmer blades are essential for maintaining cut quality and extending blade life.

Welcome to inquire!

If you don’t find the shear blade you are looking for, we can also customize it, see our “Custom Blades” to learn how!
