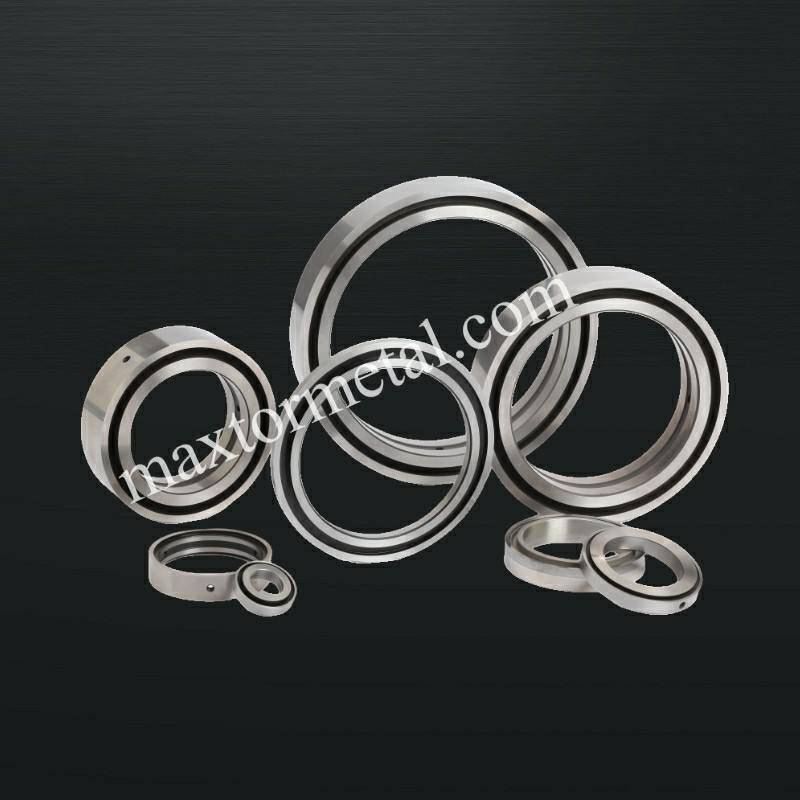

Bottom Slitter Knives

What do Bottom Slitter Knives Mean?

The term “Bottom Slitter Knives” refers to a specific type of industrial blade designed to work in conjunction with a top slitter knife or a similar counterpart to perform slitting operations. In a typical slitting setup, the “Bottom Slitter Knife” often acts as the anvil or supporting surface against which the material is pressed and cut by the top blade. These knives are crucial for achieving clean and precise longitudinal cuts in various materials. The design of Bottom Slitter Knives emphasizes durability, stability, and accurate material guidance. They are engineered to withstand continuous pressure and friction, ensuring consistent slitting quality over extended periods. The specific meaning often implies a robust and precisely manufactured blade that plays a vital role in the slitting process across numerous industries. Bottom Slitter Knives are also sometimes referred to as “lower slitter blades,” “anvil slitter knives,” or “support slitter knives.”

Uses and Applications of Bottom Slitter Knives

Bottom Slitter Knives are essential components in various slitting machines and processes across a wide range of industries. Their primary function is to provide a stable and accurate surface for the top slitter knife to cut against, ensuring clean and precise longitudinal cuts. Key uses and application scenarios include:

• Paper and Printing Industry: Used in slitting machines to cut paper rolls into narrower widths for printing presses, converting equipment, and other applications. Bottom Slitter Knives provide a stable base for clean paper slitting.
• Packaging Industry: Employed in slitting films, foils, laminates, and other flexible packaging materials to create specific roll widths for packaging machines. The precision of bottom slitting blades is crucial for accurate packaging.
• Textile Industry: Utilized in slitting fabrics, non-wovens, and textiles into narrower strips for various manufacturing processes. Durable Bottom Slitter Knives ensure consistent slitting of different fabric types.
• Rubber and Plastics Industry: Used in slitting rubber sheets, plastic films, and other polymeric materials into desired widths. The robust construction of bottom slitting blades is important for handling these materials.
• Metal Processing: In some metal slitting operations, especially for thinner gauge materials, Bottom slitting blades provide the necessary support for clean and accurate cuts.
• Converting Industry: Applied in various converting processes such as slitting adhesive tapes, labels, and other web materials. The accuracy of Bottom Slitter Knives is vital for the final product quality.
• Hygiene and Medical Products: Used in slitting materials for diapers, wipes, and medical dressings, requiring precise and clean cuts. Bottom slitting blades in these applications often have specific material and finish requirements.

The design and material of lower slitter knives are tailored to the specific material being slit and the requirements of the slitting machine.

Common Materials for Bottom Slitting Blades

The choice of material for lower slitter knives is critical for their durability, wear resistance, and ability to maintain precise dimensions under continuous use. Common materials include:

• Tool Steels (e.g., D2, M2, HSS): These steels offer a high degree of hardness, toughness, and wear resistance, making them ideal for demanding slitting applications. Bottom Slitter Knives made from tool steel can withstand prolonged use and maintain their critical dimensions.
• High Carbon Chromium Steels: These steels provide excellent wear resistance and are often used in applications where abrasive materials are being slit. Bottom Slitter Knives made from these materials offer a good balance of hardness and toughness.
• Alloy Steels: Various alloy steels with specific compositions are used to tailor the properties of bottom slitting blades for particular applications, offering a balance of strength, hardness, and corrosion resistance.
• Tungsten Carbide: For extremely demanding applications involving very abrasive materials or high-speed slitting, Bottom Slitter Knives or inserts made from tungsten carbide offer exceptional wear resistance and longevity.
• Ceramic Materials: In specialized applications where contamination is a concern or for slitting highly sensitive materials, ceramic Bottom Slitter Knives provide excellent wear resistance and chemical inertness.

The selection of the appropriate material for Bottom Slitter Knives depends on factors such as the material being slit, the operating speed, the required precision, and the expected lifespan of the knife.

Common Shapes of Lower Slitter Knives

Bottom Slitter Knives are typically designed with a focus on providing a stable and consistent support surface. While the overall shape might seem simple, precise engineering ensures optimal performance. Common shapes include:

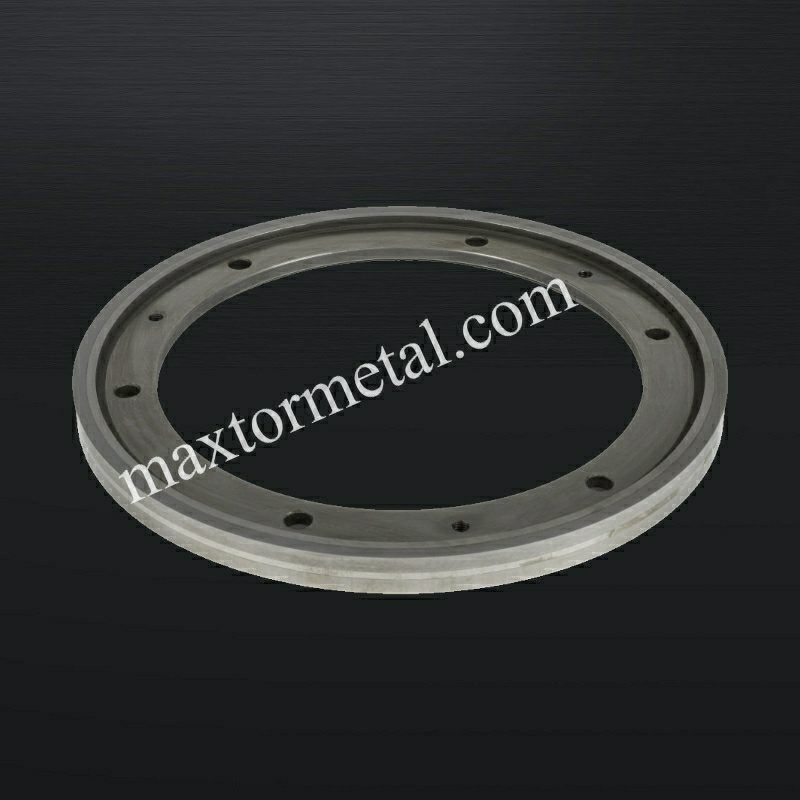

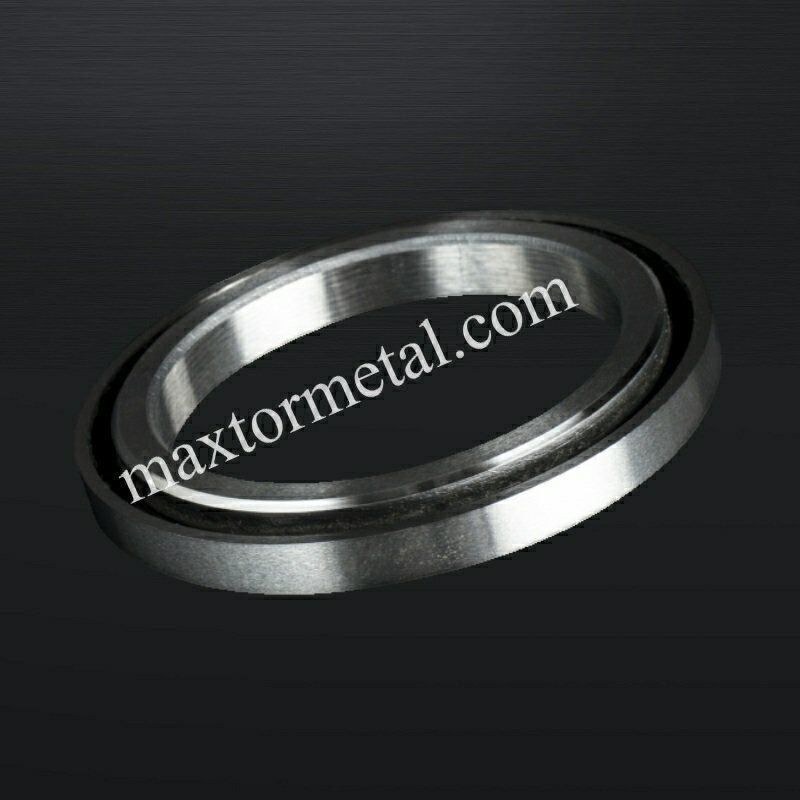

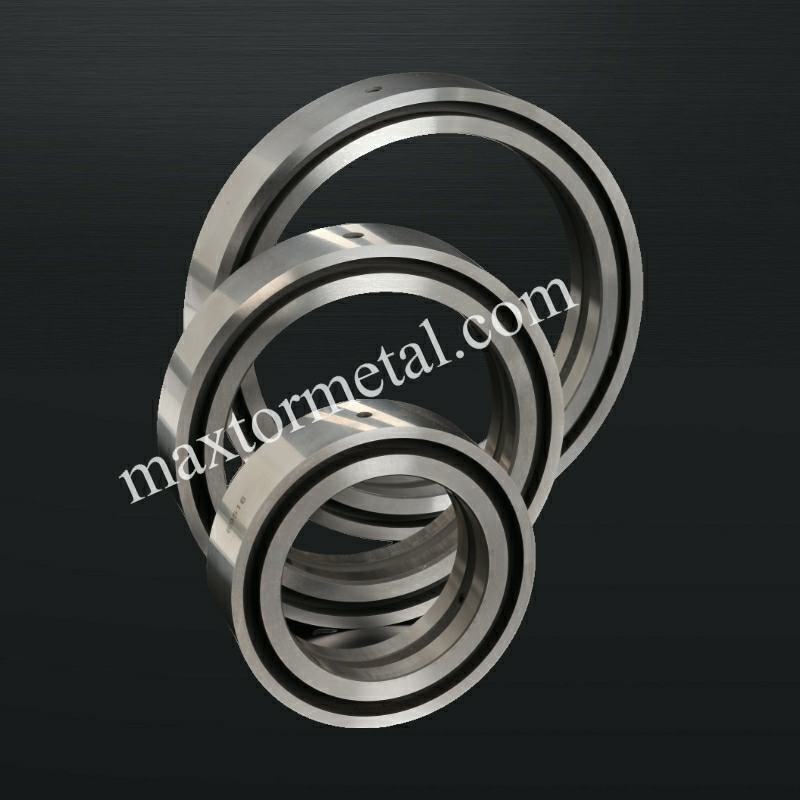

• Solid Rings or Discs: The most common shape, providing a continuous and stable surface for the top slitter knife to cut against. The dimensions, such as outer diameter, inner diameter (for mounting), and thickness, are precisely controlled in lower slitter knives.
• Segmented Rings: In some applications, Bottom Slitter Knives may be composed of multiple segments mounted together. This design can offer advantages in terms of manufacturing cost or ease of replacement of worn sections. Each segment of the bottom slitting blades provides a stable cutting surface.

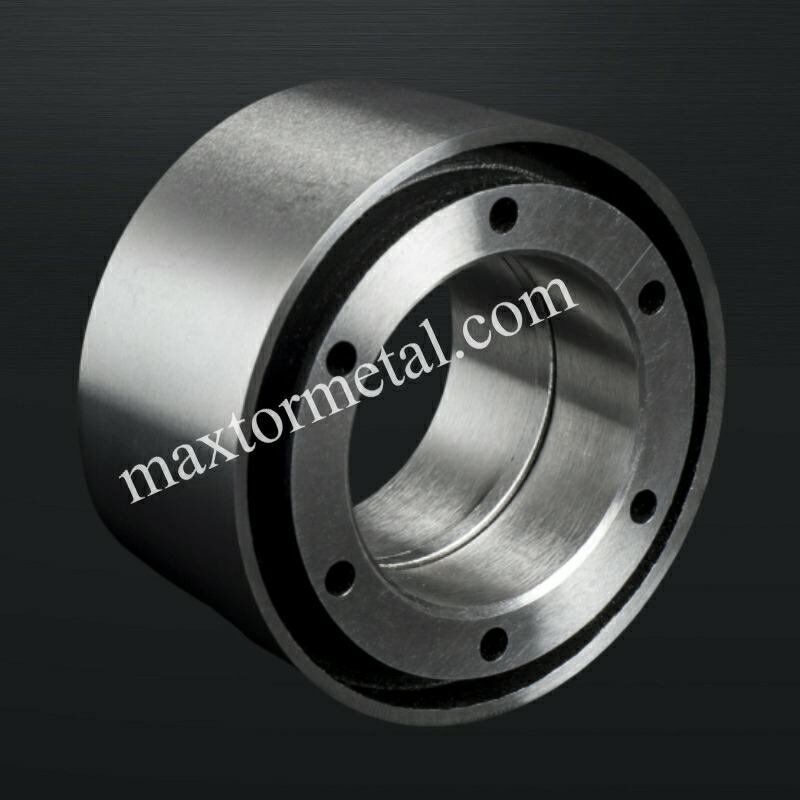

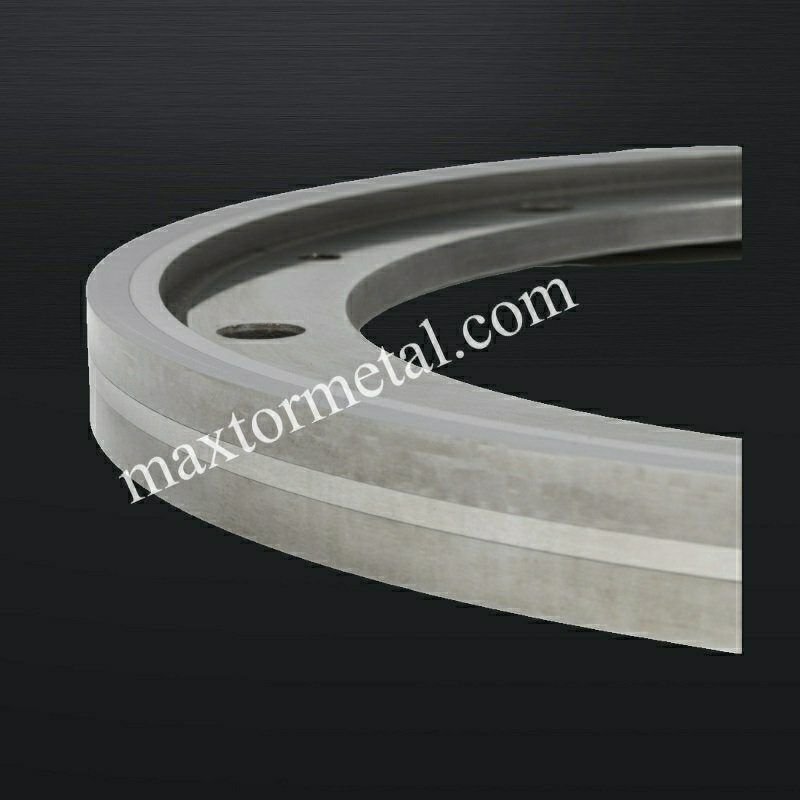

• Stepped or Grooved Designs: Some bottom slitting blades feature stepped or grooved surfaces to aid in material guidance or chip removal during the slitting process. These features are precisely machined to ensure accurate slitting.
• Beveled or Angled Edges: While not the primary cutting edge, the edges of lower slitter knives might be beveled or angled to facilitate smooth material flow and prevent snagging. The precision of these edges is important for consistent slitting.
• Custom Profiles: For specialized slitting applications, Bottom Slitter Knives can be manufactured with custom profiles to match the specific requirements of the material being slit and the desired cut geometry.

The key aspect of all Bottom Slitter Knife shapes is the precision and stability they offer to support the top slitter knife in achieving a clean and accurate cut.

If you don’t find the blade you are looking for, we can also customize it. See our “Custom Blades” to learn how! Welcome to inquire!
