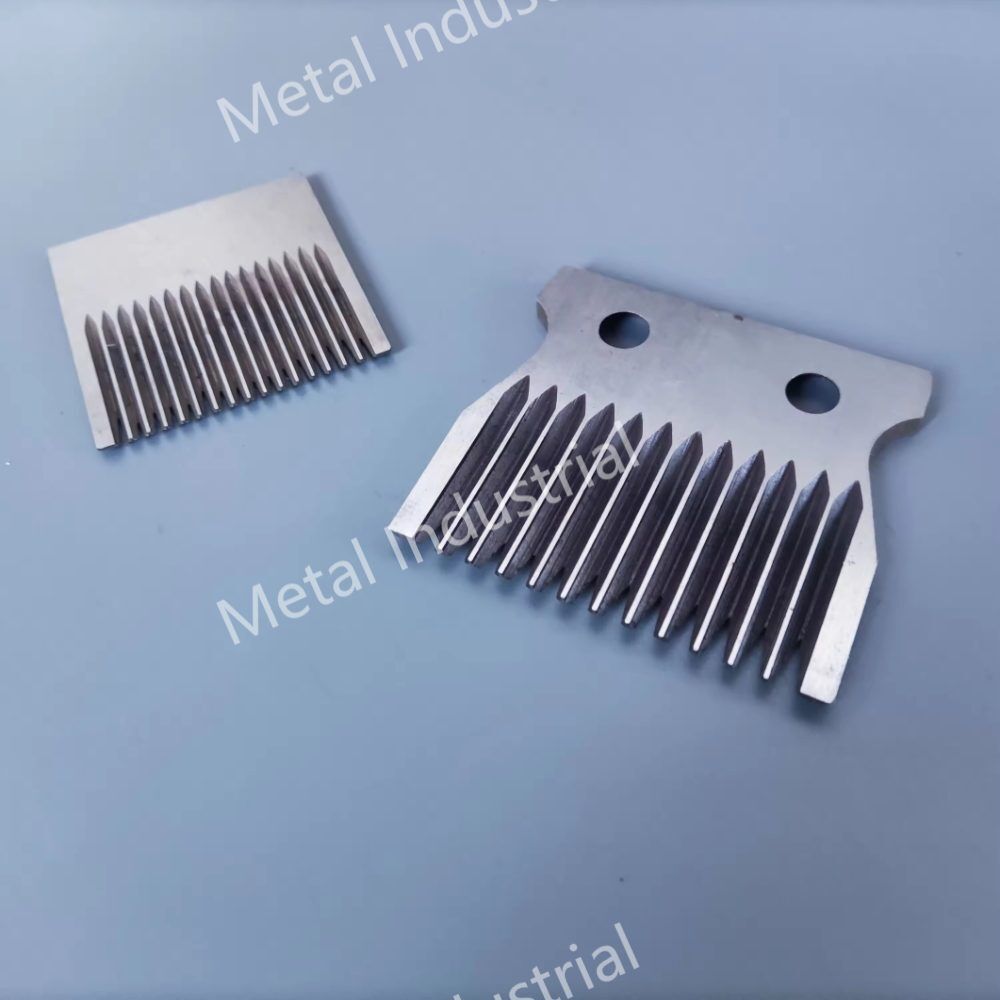

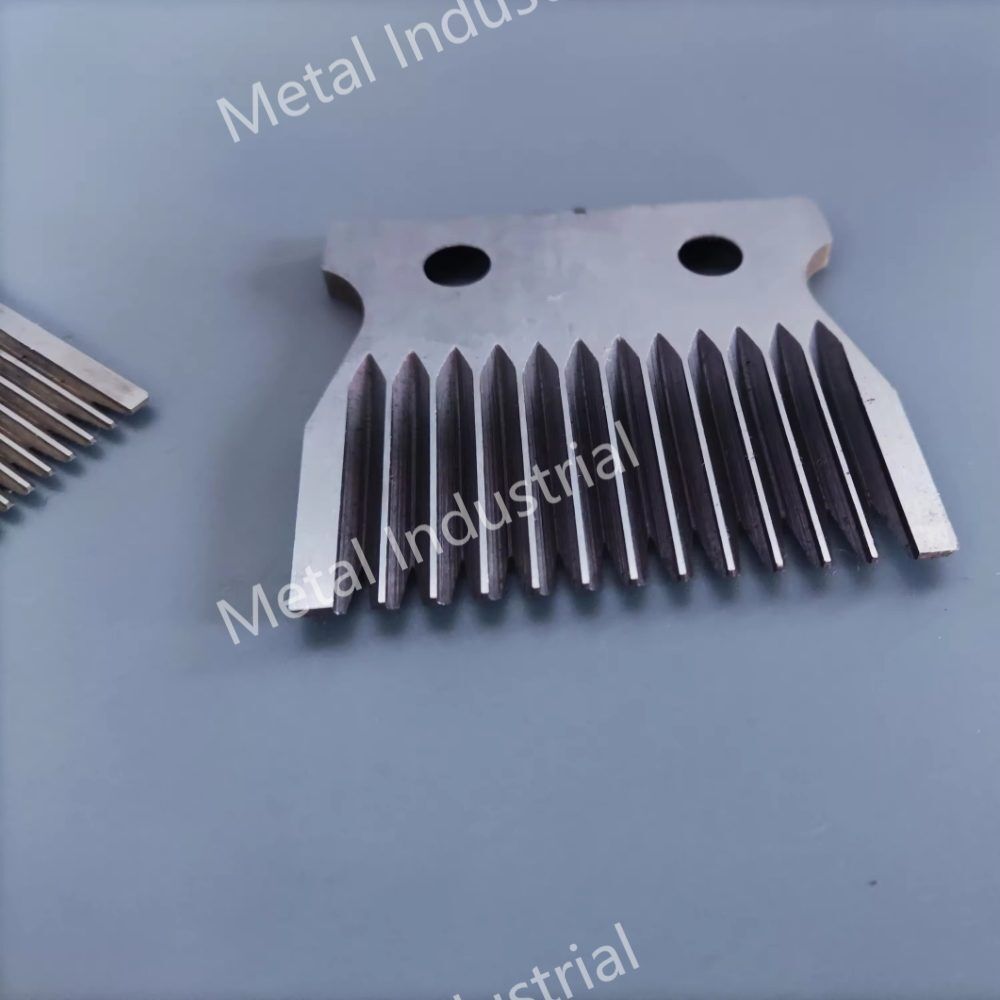

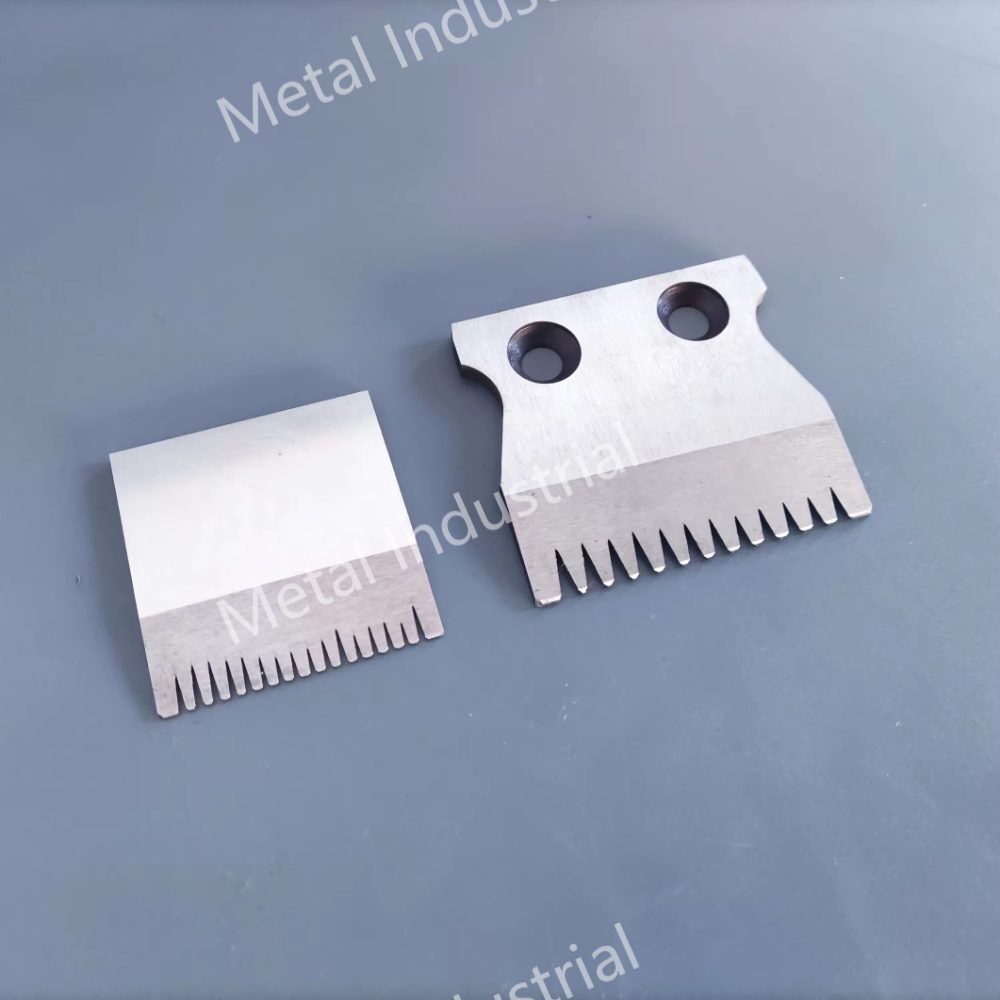

Tire Pin Vent Trimmer blade knife

Product Description:

What do Tire Pin Vent Trimmer Blades Mean?

“Tire Pin Vent Trimmer Blades” are specialized cutting tools used in the tire manufacturing process. After a tire is molded and vulcanized, small rubber protrusions, known as pin vents or vent spews, remain on the tire’s surface. These are formed by the air trapped in the mold during the curing process escaping through small vent holes. Tire Pin Vent Trimmer Blades are designed to precisely and efficiently trim these pin vents flush with the tire surface, providing a smooth and finished appearance. These blades are typically used in automated trimming machines that rotate or move the blade(s) against the tire. The shape and sharpness of the Tire Pin Vent Trimmer Blade are crucial for a clean cut without damaging the tire body. These blades are also sometimes referred to as “tire vent trimming knives,” “pin vent cutters,” “tire spew trimmer blades,” “tire rubber pin trimming blades,” or simply “tire trimming blades” (though this can be a broader term).

Uses and Applications of Tire Pin Vent Trimmer Blades

Tire Pin Vent Trimmer Blades are specifically applied in the final stages of tire manufacturing:

• Passenger Car Tires: Trimming the small rubber pin vents on the sidewalls and tread area to improve the tire’s aesthetic finish and aerodynamic properties.
• Truck and Bus Tires: Removing larger pin vents that can occur on these larger tires.
• Motorcycle Tires: Precisely trimming vents on tires with complex tread patterns.
• Off-Road Tires: Ensuring a clean finish even on tires with aggressive tread designs.
• Specialty Tires: Used on tires for agricultural, industrial, or aviation applications to remove pin vents.

The use of efficient Tire Pin Vent Trimmer Blades is essential for high-volume tire production to maintain quality and visual appeal. Automated trimming ensures consistency across all manufactured tires.

Common Materials for Tire Pin Vent Trimmer Blades

The materials used in the manufacturing of Tire Pin Vent Trimmer Blades are selected for their sharpness, wear resistance to withstand continuous contact with rubber, and durability to maintain a clean cutting edge over extended use. Common materials include:

• High Carbon Steel: Can be ground to a very sharp edge, suitable for cutting rubber. May require coatings for increased wear and corrosion resistance.
• Tool Steels (e.g., D2, M2, A2): Offer a superior balance of hardness, toughness, and wear resistance, ideal for higher volume production and consistent performance.
• Stainless Steel (various grades, e.g., 440C): Provides good corrosion resistance and can be hardened to achieve a sharp and durable cutting edge, important when dealing with the specific compounds used in tire manufacturing.
• Tungsten Carbide: Offers exceptional hardness and wear resistance, ideal for high-speed trimming and for extended blade life, reducing downtime for blade changes. Often used as inserts or tips on steel blades.

Coatings are often applied to Tire Pin Vent Trimmer Blades to further enhance their performance and longevity. Common coatings include:

• Titanium Nitride (TiN): Increases surface hardness and reduces friction, preventing rubber buildup on the blade.
• Chromium Nitride (CrN): Offers excellent wear and corrosion resistance.
• Diamond-Like Carbon (DLC): Provides very low friction and high hardness, beneficial for clean cutting and preventing material adhesion.


The selection of the blade material and coating depends on the volume of production, the type of rubber compound used in the tires, and the desired blade lifespan and cut quality.

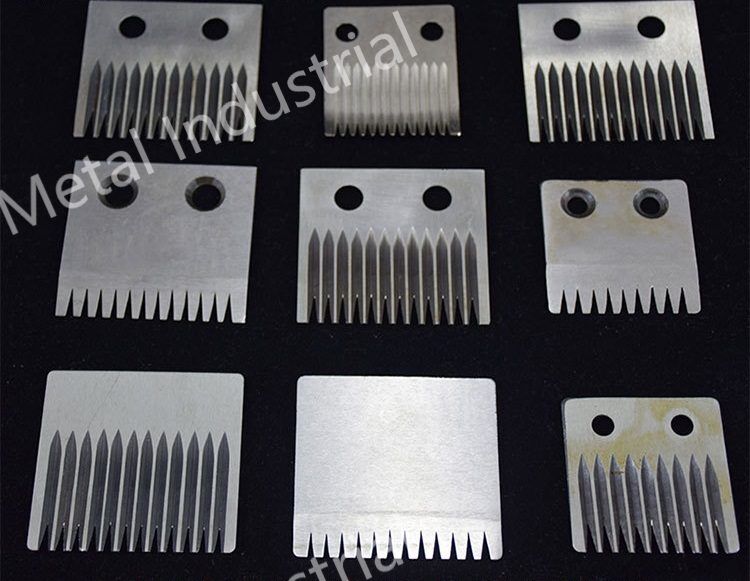

Common Shapes of Tire Pin Vent Trimmer Blades

Tire Pin Vent Trimmer Blades come in various shapes and edge configurations to effectively trim the small, often irregularly shaped pin vents:

• Circular Blades (Rotary): Used in rotating trimming heads for high-speed removal of vents as the tire is spun. The edge profile can vary.
• Cup-Shaped Blades: Designed to fit over and trim multiple vents in a localized area.
• Beveled Straight Blades: Used in linear or oscillating trimming mechanisms, with the bevel providing a clean shearing action.
• Concave Blades: Shaped to match the curvature of the tire sidewall or tread, ensuring flush trimming.
• Custom Contoured Blades: Designed to specifically match the tire’s surface and the pattern of the pin vents for optimal trimming efficiency.

The size and mounting mechanism of the Tire Pin Vent Trimmer Blade are determined by the design of the tire trimming machine. Blades typically feature a central bore or mounting holes for secure attachment to the machine’s cutting head. Precision in manufacturing the blade shape and ensuring a sharp, consistent cutting edge are critical for preventing damage to the tire.
