プラスチックペレタイザーブレード

What do Plastic Pelletizer Blades Mean?

Plastic pelletizer blades, also known as 造粒機ブレード, pelletizing knives, or rotor knives そして stator knives (depending on their position in the pelletizer), are critical cutting tools used in plastic pelletizing machines. These machines reduce larger pieces of plastic into small, uniform pellets or granules, which are the primary feedstock for manufacturing various plastic products. Plastic pelletizer blades are specifically designed to efficiently and cleanly cut different types of plastic materials into these consistent pellet sizes.

Uses and Applications of Plastic Pelletizer Blades

Plastic pelletizer blades are essential in the plastic recycling and manufacturing industries. Their main applications include:

• Plastic Recycling: Size reduction of post-consumer and post-industrial plastic waste (e.g., bottles, films, containers) into pellets for reprocessing into new plastic products.
• Virgin Resin Production: Cutting extruded strands of molten plastic into pellets of specific sizes and shapes during the manufacturing of virgin plastic resins.
• Compounding: Size reduction of plastic materials mixed with additives, colorants, or fillers to create custom plastic compounds in pellet form.
• Masterbatch Production: Cutting concentrated mixtures of pigments or additives in a carrier resin into pellets for easy dispersion in the final plastic product.
• Laboratory and Research: Small-scale pelletizing of experimental plastic formulations.

Common Materials for Plastic Pelletizer Blades

The materials used for plastic pelletizer blades must be highly wear-resistant to withstand the abrasive nature of some plastics and fillers, as well as the continuous high-speed operation of pelletizing machines. Common materials include:

• Tool Steel (e.g., D2, A8, M2): Offers a good balance of hardness, toughness, and wear resistance, suitable for processing a wide range of plastics. D2 steel, with its high chromium content, provides excellent wear resistance.
• 高速度鋼 (HSS) Known for its ability to retain hardness at high temperatures, making it suitable for high-speed pelletizing. Grades like M2 offer good wear resistance and toughness.
• Carbide-Tipped Blades: Feature tungsten carbide inserts brazed onto a steel body. Carbide provides exceptional hardness and wear resistance, ideal for processing highly abrasive plastics, filled polymers, and fiberglass-reinforced materials, significantly extending blade life.
• Powder Metallurgy Steels (e.g., CPM M4, CPM 10V): Offer superior wear resistance and toughness compared to conventional tool steels due to their uniform microstructure, making them suitable for demanding pelletizing applications.

The hardness of plastic pelletizer blades typically ranges from HRC 52 to 65, depending on the material and the type of plastic being processed. Proper heat treatment is crucial to achieve the optimal balance of hardness and toughness. Coatings like chromium plating or titanium nitride (TiN) can be applied to further enhance surface hardness, reduce friction, and improve corrosion resistance.

Common Plastic Pelletizer Blade Shapes

Plastic pelletizer blades come in various shapes and configurations depending on the type of pelletizing machine (e.g., strand pelletizers, underwater pelletizers, die-face pelletizers) and the desired pellet size and shape. Common shapes include:

• Rotor Knives: These are rotating blades mounted on the rotor of the pelletizer. They come in various lengths and thicknesses and often have a slanted or helical cutting edge to provide a scissor-like cutting action against the stator knives.
• Stator Knives (Bed Knives or Counter Knives): These are stationary blades fixed within the pelletizer housing, against which the rotor knives cut the plastic strands or melt. They are typically straight and precisely aligned with the rotor knives to ensure clean cutting.
• Fly Knives: Used in some die-face pelletizers, these rotating blades are mounted on a rotor that spins directly on the die face, cutting the extruded melt as it exits the die holes. They often have a radial or slightly angled cutting edge.
• Die Plates: In underwater and die-face pelletizers, the die plate itself can be considered part of the cutting system, with precisely drilled holes through which the molten plastic is extruded and then cut by the rotating knives.
• カスタム形状： For specialized pellet shapes or unique pelletizing systems, plastic pelletizer blades can be custom-designed with specific profiles and cutting edges.

The working principle involves the rotating plastic pelletizer blades (rotor or fly knives) passing closely by the stationary stator knives or the die face, cutting the continuous strands or the extruded melt into small pieces. The clearance between the rotor and stator knives is critical for clean cutting and preventing material from being smeared or pulled. The speed of rotation and the feed rate of the plastic material determine the size and shape of the resulting pellets. Different blade geometries and cutting configurations are used to optimize pellet quality and production efficiency for various types of plastics and throughput requirements.

METALを選ぶ理由

1. ワンストップのストレスフリーな輸入サービス

シームレスな輸入の利便性をお楽しみください。輸送から通関まで、私たちが全プロセスを処理します。お客様はVATを支払い、商品が会社に到着するのを待つだけです。

2. 競争力のある価格設定

当社のブレードは数え切れないほどの用途でその性能を発揮しており、お客様からどのようなプロジェクトをご依頼いただいても対応可能です。精度、耐久性、そして比類のない競争力のある価格をご提供します。

3. ODM & OEM 対応

図面、スケッチ、サンプルをご提供いただければ、当社で設計・製造いたします。既存の設計や仕様の変更を支援し、あらゆる産業用工具の用途を改善する能力も備えています。具体的なご要望については、当社の専門営業チームまでお問い合わせください。

4. 厳格な品質管理

品質管理のために一連のテストと検査が実施され、これには初回品検査、入荷材料検査と材料証明書確認、工程内品質検査、最終品質検査が含まれます。

5. 柔軟な調達、無制限の協力

お客様が輸入業者、販売業者、卸売業者、最終ユーザーのいずれであっても、最小限のMOQ、お問い合わせの手間なし、より自由な購入で、お客様の参加を歓迎します。

6. 海外モニター、生産進捗リアルタイムレポート

お客様専属のモニターとして、生産ラインのあらゆる重要な進捗を定期的にご報告いたします。どんなに遠く離れていても、製品の進捗状況を可能な限り正確に把握いただけます。

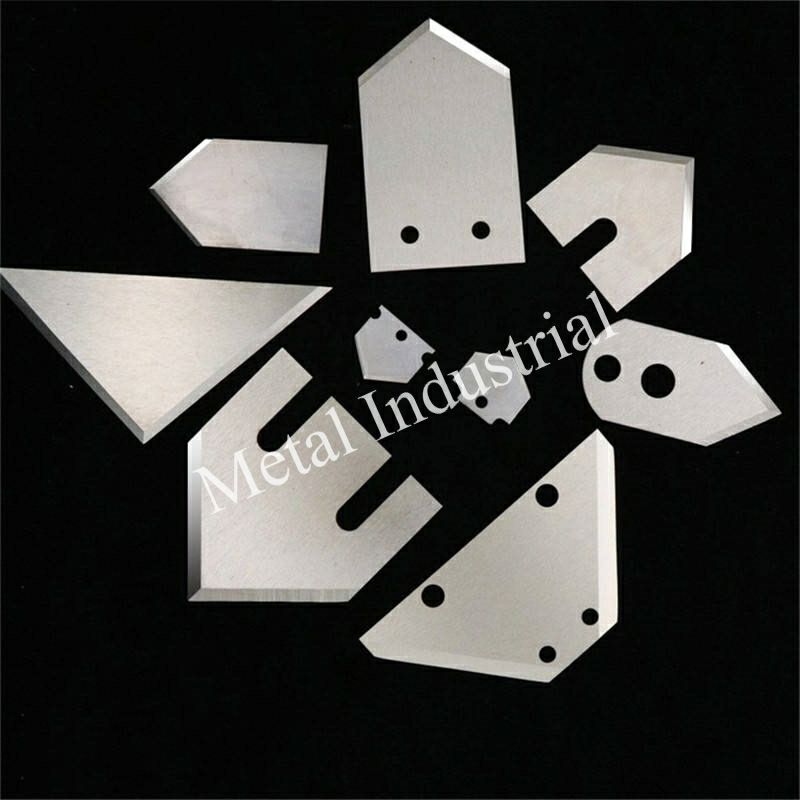

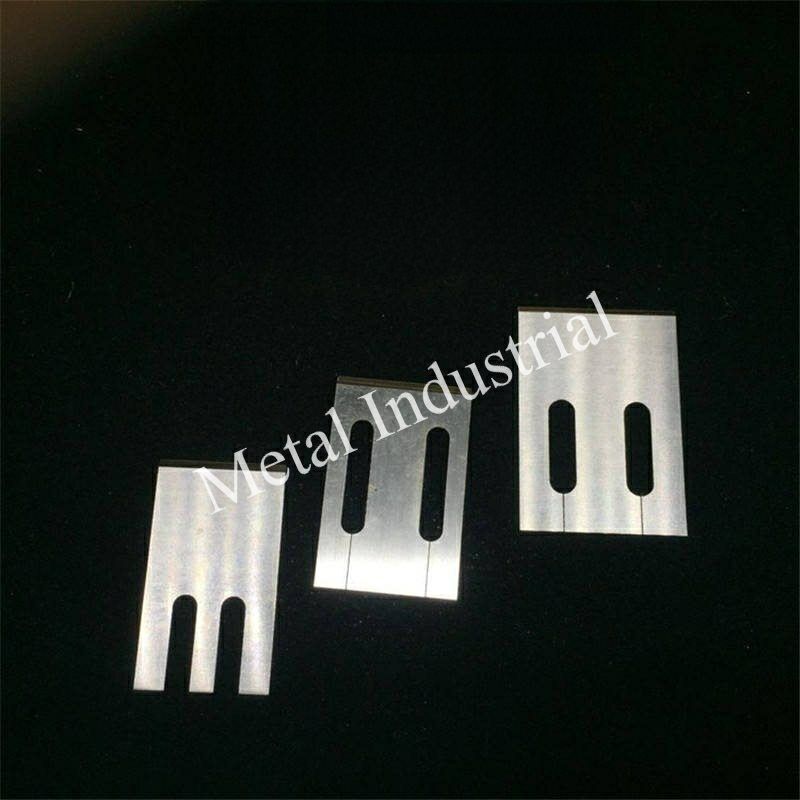

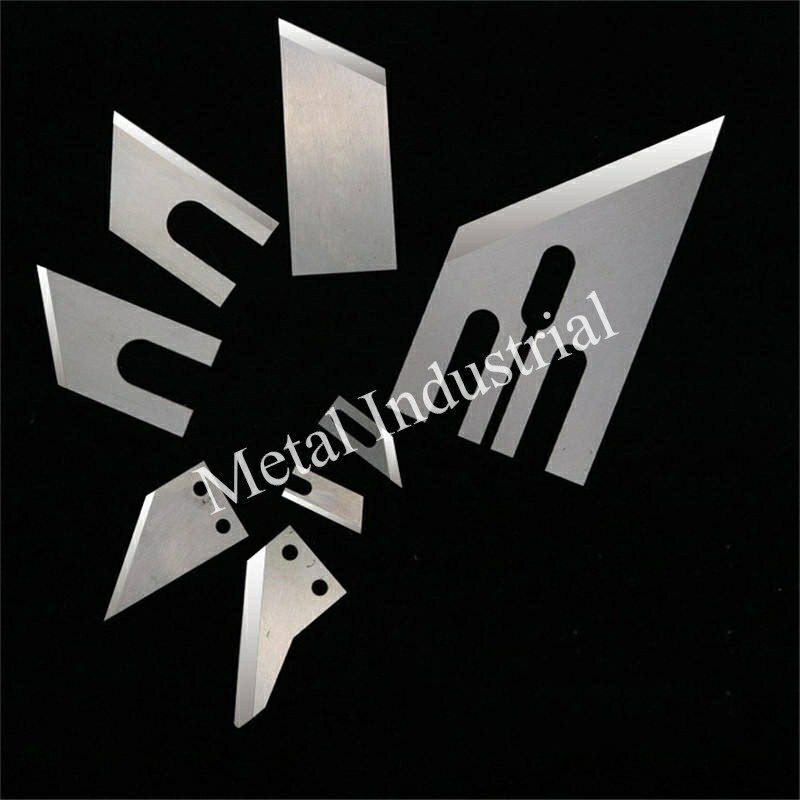

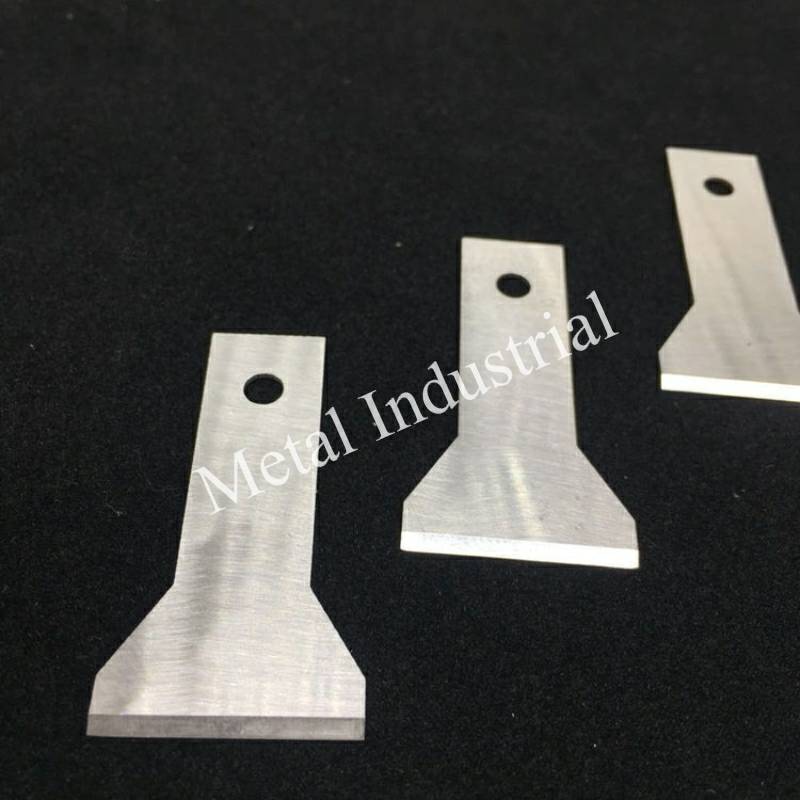

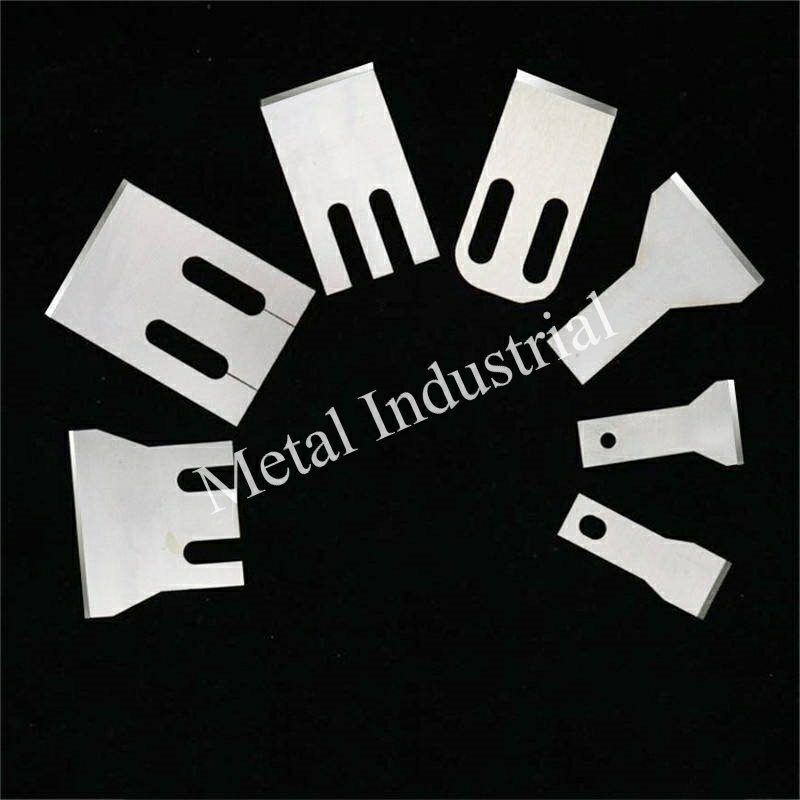

製品表示:
