금속 롤러 전단 블레이드

What do Roller Shearing Blades Mean?

Roller shearing blades, also known as rotary shear blades or disc shear blades, are circular cutting tools designed for use in roller shearing machines or slitting machines. These blades work by rotating against each other or against a fixed anvil to cut materials, typically sheet metal, coils, or strips, into narrower widths or specific shapes. The term “roller shearing blades” highlights their cylindrical or disc-like form and their application in rotary shearing processes.

Uses and Applications of Roller Shearing Blades

Roller shearing blades are widely used in various industries for continuous and efficient cutting of materials. Key applications include:

• Metalworking Industry: Slitting steel coils, aluminum coils, and other metal strips into desired widths for further processing. Edge trimming of metal sheets to ensure precise dimensions. Cutting blanks for stamping or forming operations.
• Steel Mills: Hot and cold shearing of steel bars, rods, and billets during the rolling process.
• 자동차 산업: Cutting sheet metal for car body panels and other components.
• Appliance Manufacturing: Cutting metal sheets for appliance casings and parts.
• 포장 산업: Slitting and cutting various packaging materials, including metal foils, films, and laminates.
• 섬유 산업: Slitting rolls of fabric and nonwovens into narrower widths.
• 제지 산업: Slitting large rolls of paper into smaller widths for printing and converting processes.
• Rubber and Plastics Industries: Cutting and slitting rubber sheets and plastic films.

Common Materials for Roller Shearing Blades

The materials used for roller shearing blades are selected for their durability, wear resistance, and ability to maintain a sharp cutting edge under continuous operation. Common materials include:

• Tool Steel (e.g., D2, A2, O1): Offers a good balance of hardness, toughness, and wear resistance, suitable for many metal slitting applications.
• 고속도강 (HSS) Provides excellent wear resistance and the ability to retain hardness at elevated temperatures, making it suitable for higher-speed slitting operations. Grades like M2 are commonly used.
• Alloy Steel (e.g., H13, LD): Offers high temperature resistance and is suitable for hot rolling and hot shearing processes in steel mills.
• 텅스텐 카바이드: Provides exceptional hardness and wear resistance, ideal for high-speed slitting of hard and abrasive materials, significantly extending blade life. Can be used as solid carbide blades or as carbide inserts.
• 특수 합금: Depending on the specific application and material being cut, other specialty alloys may be used to provide optimal performance and longevity.

Heat treatment to achieve the desired hardness (typically in the range of HRC 57-62) is a critical step in the manufacturing process to ensure the blades can withstand the stresses of shearing. Coatings like titanium nitride (TiN) can also be applied to enhance surface hardness and reduce friction.

Common Roller Shearing Blade Shapes

금속 롤러 전단 블레이드 are typically circular discs with various edge profiles depending on the cutting application:

• Solid Disc Blades: One-piece circular blades with a sharpened outer edge. The edge can be square, bevelled (single or double), or radiused.
• Inserted Blades: Feature replaceable cutting inserts made of a harder material (like carbide) attached to a steel body. This allows for cost-effective replacement of the wearing edge.
• Dished Blades: Circular blades with a concave or convex profile, often used for slitting where material tension needs to be controlled or to create specific edge profiles.
• Bevelled Edge Blades: The cutting edge is angled to create a shear point, which can reduce the cutting force required for certain materials. Single or compound bevels can be used.
• Scored/Crush Cut Blades: Used in pairs, these blades often have rounded or profiled edges that press against an anvil to create a score or crush cut, commonly used for thinner materials like paper or film.

The working principle of roller shearing blades involves the rotation of one or more circular blades against a stationary blade or anvil. The material passes between these rotating elements, and the shearing action occurs due to the applied pressure and the sharp edges of the rotating blades. In slitting operations, two or more roller shearing blades are often used in conjunction with spacers to achieve multiple cuts simultaneously, creating strips of the desired width. The precision of the blade geometry, the material of the blades, and the setup of the shearing machine are crucial for clean and accurate cuts.

선택하다 난징 Metal 산업보다 효율적이고 정밀한 금속 절단 생산을 위한 의 회전 전단 블레이드를 사용하여 내구성과 고품질 성능을 보장받으세요.

브로슈어 열기

공통 사양 :

METAL을 선택하는 이유

1. 원스톱, 번거로움 없는 수입 서비스

번거롭지 않은 수입의 편리함을 누리세요. 운송부터 통관까지, 저희가 전체 과정을 처리합니다. 고객님은 VAT만 지불하시고 회사에 상품이 도착하기를 기다리시면 됩니다.

2. 경쟁력 있는 가격

저희 블레이드는 수많은 애플리케이션에서 사용되며 뛰어난 성능을 입증했으며, 고객님의 어떤 프로젝트든 처리할 준비가 되어 있습니다. 정확성, 내구성, 그리고 비교할 수 없는 경쟁력 있는 가격을 제공합니다.

3. ODM 및 OEM 가능

도면, 스케치 또는 샘플을 제공해 주시면 저희가 설계하고 제조해 드립니다. 또한 기존 디자인 및 사양을 수정하여 거의 모든 산업용 공구 응용 분야를 개선하는 데 도움을 드릴 수 있습니다. 특정 요구 사항에 대해 논의하려면 전담 영업팀에 문의하십시오.

4. 엄격한 품질 관리

품질 관리를 위해 초기 샘플 검사, 입고 자재 검사 및 자재 인증, 공정 중 품질 검사, 최종 품질 검사를 포함한 일련의 테스트와 검사가 수행됩니다.

5. 유연한 조달, 무제한 협력

수입업체, 유통업체, 도매업체 또는 최종 사용자이든 상관없이 최소 MOQ, 번거롭지 않은 문의 및 더 많은 구매 자유를 통해 귀하의 참여를 환영합니다.

6. 해외 모니터, 생산 진행 실시간 보고

귀하의 전담 모니터가 되어 생산 라인의 모든 중요한 지점에 대한 정기적인 정보를 제공합니다. 아무리 멀리 떨어져 있어도 제품의 진행 상황을 최대한 파악할 수 있도록 돕겠습니다.

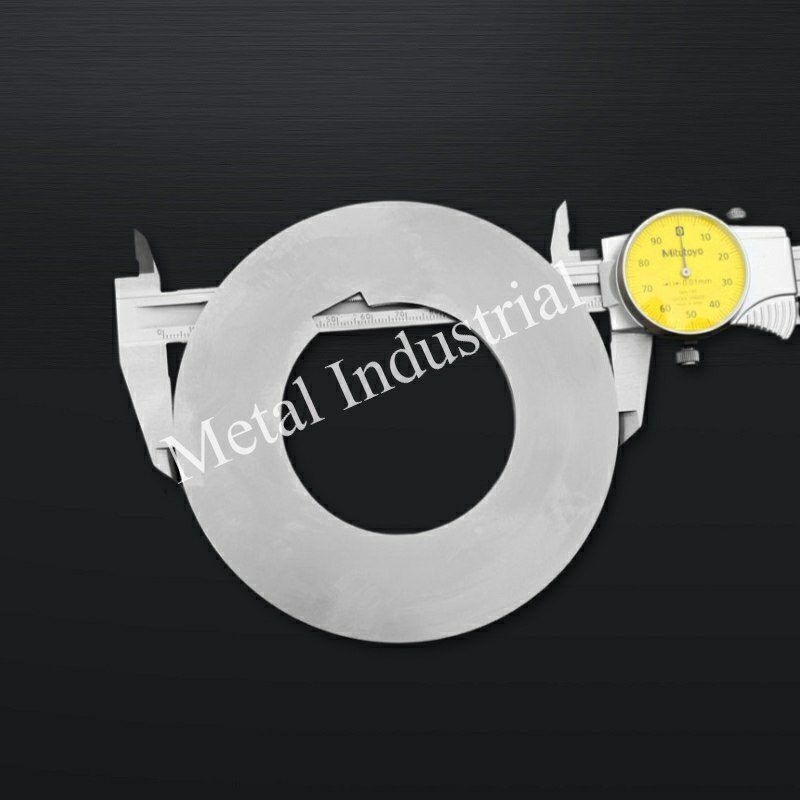

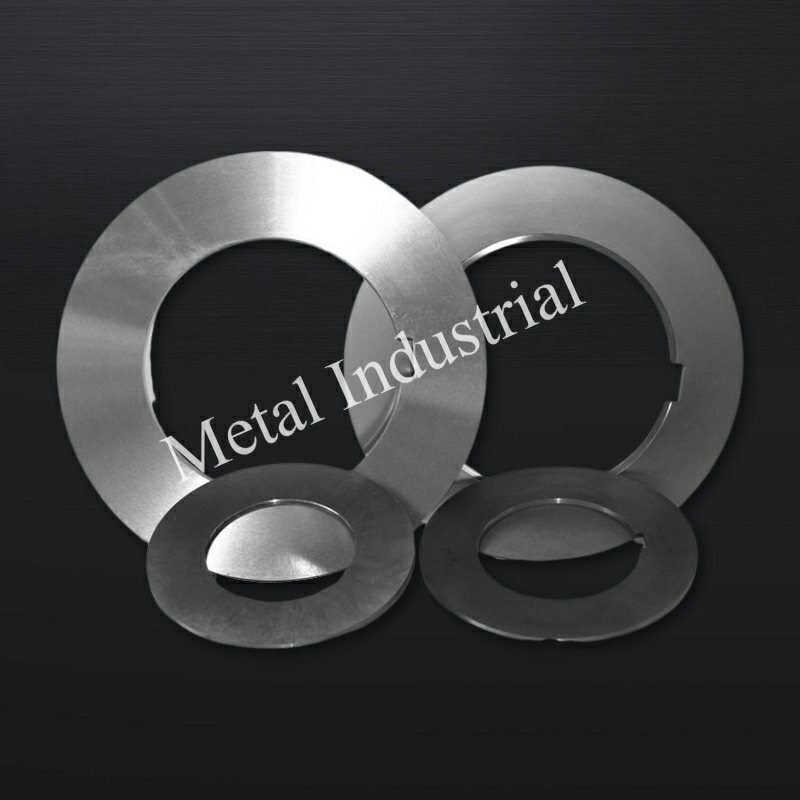

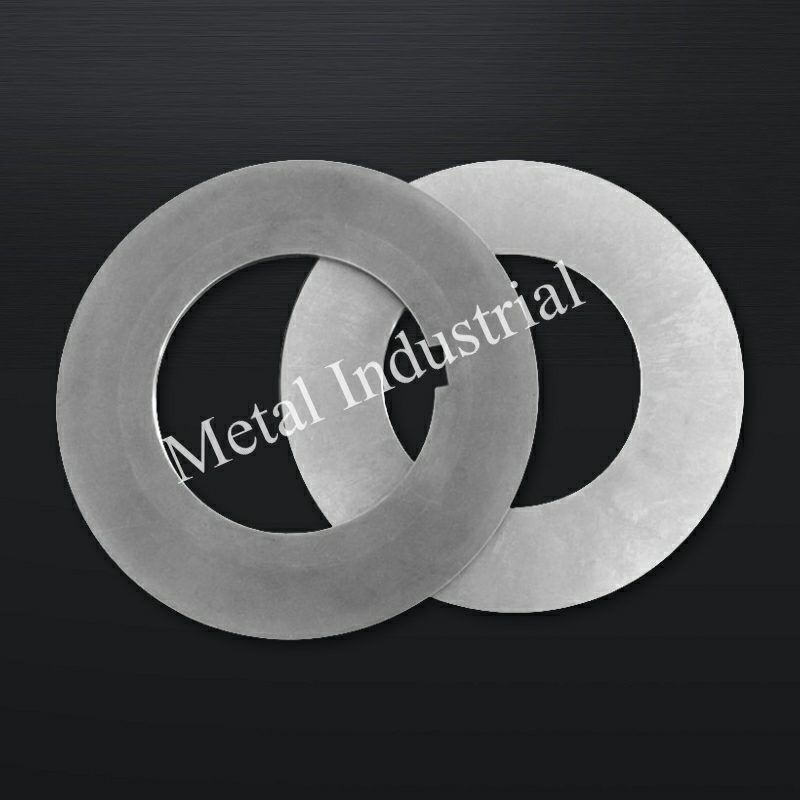

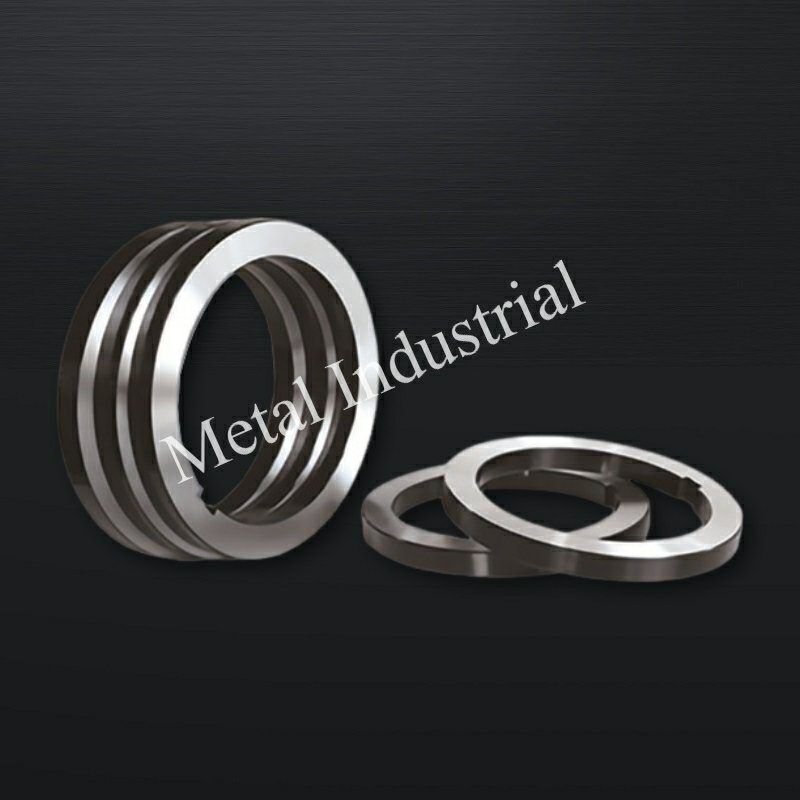

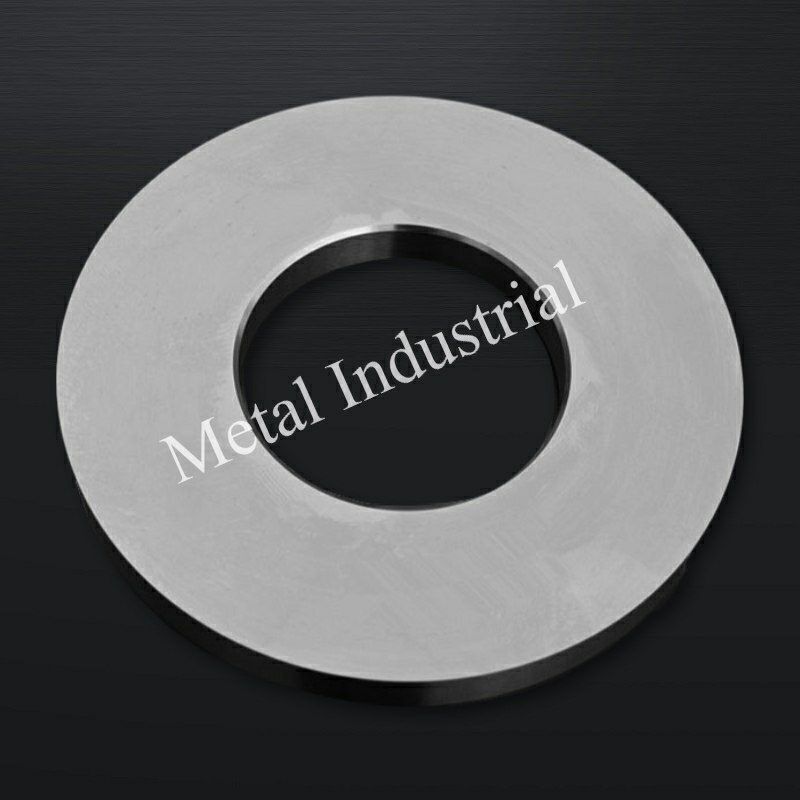

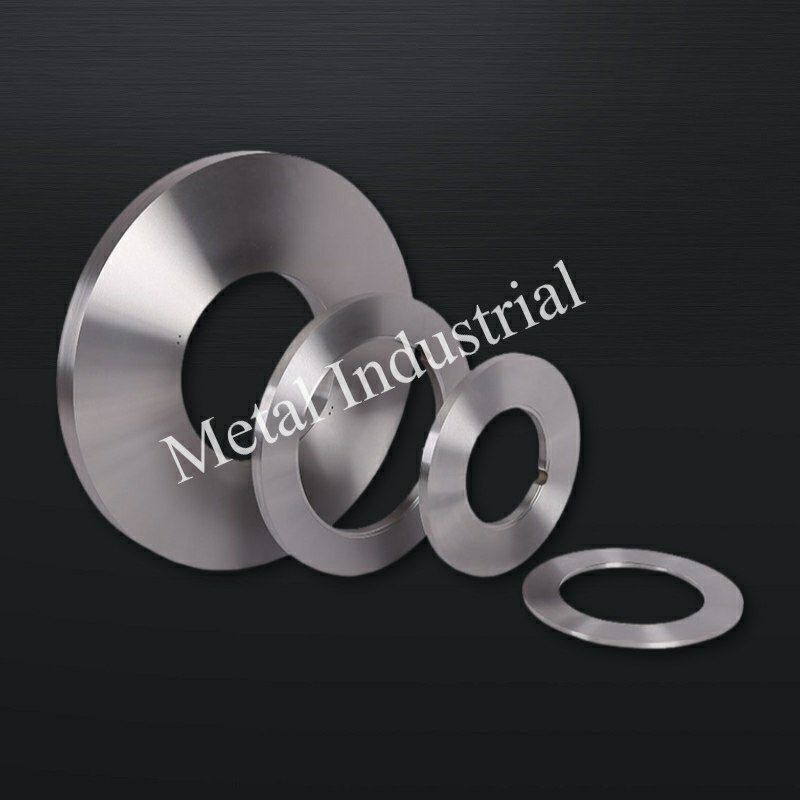

Roller shearing blade Display:

High-Precision Roller Shearing Blades for Efficient Rotary Cutting

금속 롤러 전단 블레이드, a type of rotary cutter blade, are essential components in various industrial cutting processes where continuous, high-speed shearing is required. At Nanjing Metal, we specialize in the design, manufacturing, and customization of high-performance 금속 롤러 전단 블레이드 engineered for accuracy, durability, and optimal performance in rotary cutting applications. Our commitment to using premium-grade materials and employing advanced manufacturing techniques ensures that our 금속 롤러 전단 블레이드 deliver clean, efficient cuts and contribute to increased productivity.

Versatile Applications in Rotary Shearing Operations:

당 금속 롤러 전단 블레이드 find critical applications across a wide range of industries. In the metalworking sector, they are used in rotary shears for slitting coils, cutting sheets, and trimming edges of various metals like steel, aluminum, and copper. The paper and converting industry utilizes 금속 롤러 전단 블레이드 for slitting paper rolls, films, and foils. In the textile industry, rotary cutters with these blades are employed for continuous cutting of fabrics. Furthermore, 금속 롤러 전단 블레이드 are used in the rubber and plastics industries for slitting and trimming continuous webs of material. Their rotary action allows for high-speed and continuous cutting, making them ideal for automated production lines.

Durable Materials for Reliable Rotary Cutting:

The performance and lifespan of 금속 롤러 전단 블레이드 are significantly influenced by the materials used in their construction. Nanjing Metal utilizes a selection of high-quality materials to manufacture our rotary cutter blades for shearing, including:

• High-Carbon High-Chromium Steel (e.g., D2, Cr12MoV): Offers excellent hardness, high wear resistance, and good toughness, making it ideal for shearing various metallic and non-metallic materials in rotary applications.
• Alloy Tool Steel (e.g., A8, SKD11): Provides a superior balance of toughness and wear resistance, ensuring prolonged blade life even under continuous, high-speed operation. Specific alloys are chosen based on the material being cut.
• 고속도강 (HSS) Exhibits exceptional hardness and the ability to retain sharpness at high rotational speeds, suitable for demanding applications and high-volume production.
• 카바이드: Offers superior hardness and wear resistance, making it ideal for cutting abrasive materials and achieving extended tool life in rotary shearing processes. Carbide-tipped 금속 롤러 전단 블레이드 are particularly effective for challenging materials.

The selection of the appropriate material depends on factors such as the type and thickness of the material being cut, the rotational speed, the required precision, and the desired lifespan of the 금속 롤러 전단 블레이드. Our experienced engineers can assist you in choosing the optimal material for your specific rotary shearing needs.

Customization Advantages with Nanjing Metal:

Nanjing Metal excels in providing customized roller shearing blade solutions tailored to the unique requirements of your rotary cutting applications. We understand that different materials, machinery, and production demands necessitate specific blade designs and configurations. Our customization advantages include:

• Precise Dimensional Accuracy: We manufacture 금속 롤러 전단 블레이드 to your exact dimensional specifications, including diameter, thickness, and bore size, ensuring perfect fit and optimal performance within your rotary shearing machinery.
• Optimized Blade Geometry: We can customize the blade edge profile, bevel angle, and number of cutting edges to achieve clean and efficient cutting for your specific materials and rotary cutting processes.
• Material Selection Expertise: Our experts provide comprehensive guidance on selecting the most appropriate material and heat treatment process to ensure maximum wear resistance, toughness, and longevity for your rotary shearing application.
• Surface Treatments: We offer various surface treatments, such as hard chrome plating or specialized coatings, to further enhance wear resistance, reduce friction, and prevent material build-up on the 금속 롤러 전단 블레이드, improving cutting quality and extending blade life.
• Custom Designs: We can accommodate various tooth profiles (if required for specific materials), scoring edges, and other specialized features to perfectly match your rotary shearing equipment and cutting requirements.

By choosing Nanjing Metal for your roller shearing blade needs, you gain access to high-quality, precisely engineered, and fully customized rotary cutting solutions that enhance the efficiency, accuracy, and productivity of your shearing operations. Contact us today to discuss your specific requirements and experience the Nanjing Metal advantage in 금속 롤러 전단 블레이드.
