Altreifen- & ELV-Schreddermesser: Härte vs. Zähigkeit im Gleichgewicht zur Senkung der Kosten pro Tonne

Kurzantwort: Ausgewogenheit von Härte (Verschleißfestigkeit) und Kerbschlagzähigkeit nach Charpy ist entscheidend, anstatt nur den HRC-Wert zu maximieren. DC53 bei 58–60 HRC bietet etwa die doppelte Schlagzähigkeit von D2 für verunreinigte Altreifen- und ELV-Recyclingströme. Gleichzeitig belegen reale Schadensanalysen, dass Brüche an der Befestigungsloch-Geometrie und nicht die Materialhärte häufig die eigentliche Ursache sind.

Umfang: Dieser Leitfaden konzentriert sich hauptsächlich auf Primär- und Vorzerkleinerungsanwendungen von ganzen Altreifen und ELV-Mischschrott (Altfahrzeuge). In diesen Prozessen stellen Stahlarmierungen, Störstoffe aus Metall, Stoßbelastungen und abrasive Verunreinigungen erhebliche Herausforderungen dar. Die sekundäre Granulierung von Gummi und die Verarbeitung zu stahldrahtfreiem Gummimehl erfordern ein anderes Verhältnis zwischen Verschleißfestigkeit und Zähigkeit.

Das Recycling von Altreifen und die Zerkleinerung von Altfahrzeugen (ELV) gehören zu den mechanisch anspruchsvollsten Anwendungen in der industriellen Abfallverarbeitung. Im Gegensatz zum Granulieren von homogenem Kunststoff oder dem Scherenschneiden von sauberen Blechen zwingt die Verarbeitung ganzer Radialreifen und von Autoschrott die Shreddermesser dazu, einer extremen Kombination aus schweren mechanischen Stößen, hoher Reibungswärme und ununterbrochenem Abrasionsverschleiß in einem einzigen kontinuierlichen Arbeitsgang standzuhalten. Stahlgürtelreifen für Pkw und Nutzfahrzeuge enthalten hochfeste Federstahlgewebe und dicke Wulstkernbündel direkt im elastischen vulkanisierten Kautschuk.

When an operator selects knives for a primary dual-shaft or single-shaft shredder, the instinct is often to specify the hardest tool steel available to maximize wear life. However, field experience across high-throughput recycling plants proves that maximizing hardness alone leads to early edge chipping, catastrophic body fractures, and costly unexpected mill shutdowns. Operational success relies on a deliberate balance between wear-resistant hardness and impact-resistant fracture toughness. Engineering teams that transition from off-the-shelf blade purchasing to metallurgical material selection evaluate performance through total cost per ton processed rather than initial Rockwell hardness readings. Custom knife manufacturers like Maxtor Metal engineer precision-ground shredder blades and shredding knives to maintain structural integrity under these multi-axial shock loads.

Die folgenden technischen Empfehlungen basieren auf dem internen Metallurgie- und Werkstoffteam von Maxtor Metal — einer nach ISO 9001 zertifizierten Qualitätsmanagement-Umgebung mit mehr als 15 Jahren Erfahrung im Präzisionsschleifen gehärteter Industriemesser für das Stahlrecycling, die Abfallverarbeitung und Zerkleinerungsmaschinen. Die nachstehenden Empfehlungen zur Werkstoffauswahl und Schadensanalyse spiegeln diese praktische Erfahrung in der Werkzeugstahl-Aufarbeitung wider und gehen weit über reine Datenblatt-Theorie hinaus.

Warum Altreifen und ELV-Material Messer zerstören

Shredding whole tires and ELV auto scrap exposes cutting edges to severe impact and abrasion dynamics that far exceed standard solid-waste or plastic recycling stresses.

• Extreme Impact Shock: High-tensile steel bead wire bundles (boasting tensile strengths between 1,500 MPa and 2,100 MPa) and heavy automobile structural framing create sudden peak shock loads that exceed the yield strength of conventional cold-work tool steels.
• Elastic Energy Loss: The elasticity of thick vulcanized rubber absorbs mechanical energy before shearing occurs. This forces shredder knives to maintain an extremely aggressive bite while squeezing the feedstock against counter-knives, generating intense friction.
• Compound Abrasive Degradation: Embedded road grit, quartz silica, brake dust, and unseparated tramp iron act as grinding compounds against knife flanks, accelerating abrasive rounding while shock loads simultaneously encourage micro-chipping along the cutting edge.

Wichtigste Erkenntnis: Tire shredding is not a pure cutting operation; it is a violent combination of high-energy impact, metal shearing, and severe rubber abrasion. Knives designed solely for wear resistance fail rapidly through fatigue fracturing.

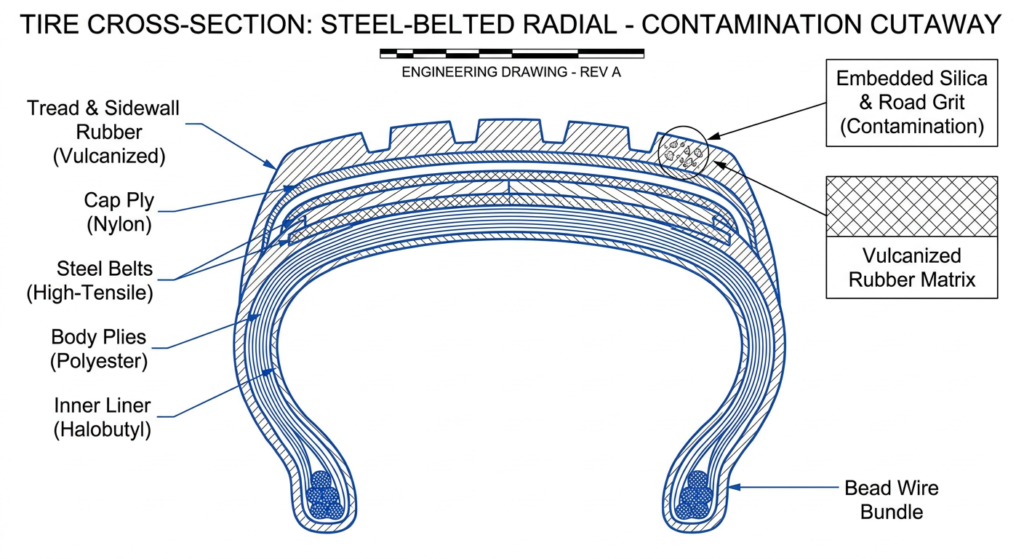

The Unique Stress Profile of Steel-Belted Rubber

Ferrous steel construction accounts for 65% to 70% of an ELV’s total weight. When whole tires or vehicle assemblies enter a primary shredder, every revolution of the rotor forces the knife hook to shear through elastic synthetic rubber and high-strength steel wire simultaneously.

Because rubber acts as a thermal insulator, friction heat generated during the shear cycle cannot dissipate quickly. Local frictional heating can become significant when clearance deteriorates, the edge becomes dull, or abrasive contamination increases. The actual edge temperature depends strongly on rotor speed, knife clearance, feed composition, contact time, and cooling conditions; therefore, a fixed 200–300°C value should not be treated as a universal operating temperature.

In lower-grade tool steels tempered at low temperatures, this operational heat triggers unwanted secondary tempering, lowering localized surface hardness, relaxing compressive residual stresses, and accelerating flank wear.

Zusamenfassend: tire and ELV feed combines high-tensile bead-wire shock, insulated friction heat, and abrasive contamination in one continuous cycle—no single property (hardness or toughness alone) survives all three.

Der Zielkonflikt zwischen Härte und Zähigkeit

In tool steel metallurgy, hardness and impact toughness sit on opposite sides of a balance beam. Hardness, measured on the Rockwell C scale (HRC), quantifies a material’s resistance to localized plastic deformation, surface penetration, and abrasive wear. Impact toughness, quantified in Joules (J) or Joules per square centimeter (J/cm²) via Charpy V-notch testing, measures a steel’s ability to absorb energy and deform plastically without fracturing when subjected to high-velocity shock.

Raising HRC by increasing carbon content or altering quenching parameters increases abrasive wear resistance and edge sharpness retention. However, higher hardness shrinks the material’s fracture toughness, leaving the cutting hook vulnerable to catastrophic cracking when striking tramp metal. Conversely, lowering HRC improves impact absorption and eliminates blade breakage, but the knife edge rounds prematurely under abrasive silica and steel belt scrubbing.

The optimal alloy selection depends entirely on feed contamination levels and primary rotor speed rather than chasing the highest achievable HRC rating.

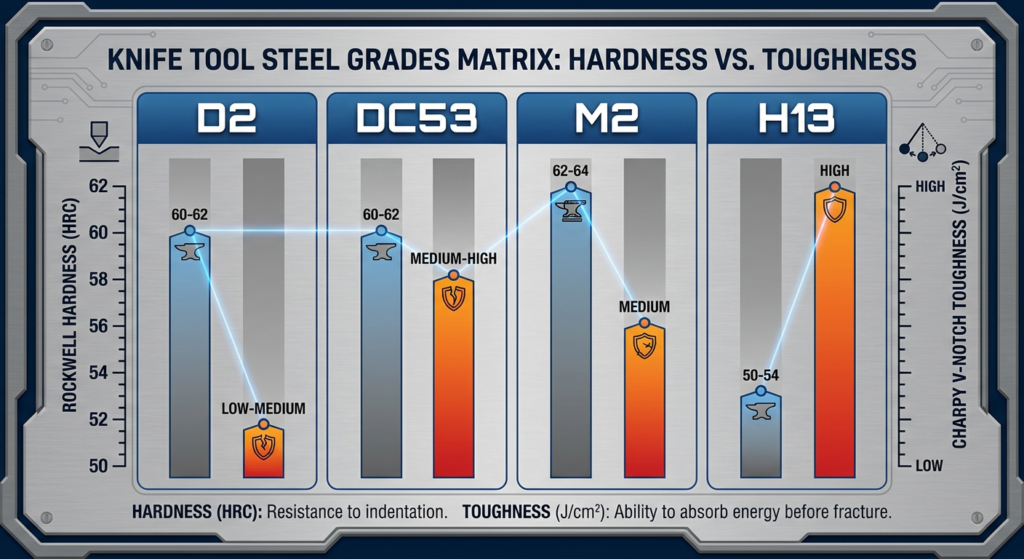

Reading HRC Ranges for Tire and ELV Duty

To match knife metallurgy to specific processing steps, engineering standards such as ASTM A681 tool steel specifications classify tool steels into specialized hardness and toughness windows:

Why DC53 Is a Benchmark for Contaminated Streams

DC53 is an upgraded cold-work tool steel developed by Japan’s Daido Steel as a higher-toughness alternative to standard AISI D2 (JIS SKD11) — a positioning Daido states plainly in its official DC53 cold-work tool steel brochure, which describes the grade as overcoming SKD11’s shortcomings in hardness and toughness. By contrast, standard D2 steel contains large, coarse primary chromium carbides (M₇C₃) that form network boundaries during solidification. These coarse carbides act as internal stress risers where micro-cracks originate under impact.

DC53 is registered as an 8% chromium, 8Cr-2Mo cold-work grade — a composition ASM International catalogs in its independent DC53 materials digest — and trims carbon to roughly 0.95% while adding molybdenum (~2.0%) and vanadium (~0.35%). When subjected to high-temperature double tempering at 520°C to 530°C, DC53 undergoes secondary precipitation hardening. This process precipitates sub-micron M₂C carbides uniformly throughout a tempered martensitic matrix.

The resulting microstructure delivers a working hardness of 58–60 HRC while yielding a Charpy impact toughness roughly double that of standard D2 steel. This extra toughness allows DC53 shredder knives to withstand direct impacts against high-tensile bead wires and stray bolts without spalling or shattering.

Heat Treatment as the Hidden Lever

A tool steel’s chemical composition represents only half of its final performance potential. Advanced heat treatment procedures serve as the critical lever to unlock maximum fatigue life:

1. Vacuum Hardening: Eliminates surface decarburization and scale, ensuring uniform hardness from the knife skin to its inner core.
2. Deep Cryogenic Treatment: Subjecting quenched knives to liquid nitrogen temperatures (-196°C) converts residual retained austenite (RA) into hard, stable martensite, preventing dimensional growth and micro-cracking during service.
3. Dual-Hardness Profiles: Differential hardness should be treated as an application-specific design option rather than a default heat-treatment route. Where a blade architecture requires a wear-resistant working zone and a tougher structural region, the manufacturer should validate the hardness gradient, transition zone, dimensional stability, and crack resistance on the actual cross-section..

Diagnose the Failure Mode Before Choosing a Grade

DC53 is often described — and sometimes oversold — as a universal upgrade for D2. From a metallurgist’s standpoint, that framing is too simple. A grade is only as good as the failure mode it is asked to defeat. If the dominant problem is pure abrasive edge rounding on a clean, pre-sorted feed, a well-refined D2 at high hardness can remain the more economical choice, because its heavier carbide fraction buys the most wear life for the lowest cost. A move to DC53 only earns its premium when the dominant mode is impact, or a genuine impact-plus-abrasion duty — and even then, removing a stress-concentration point in the blade geometry is frequently just as important as the choice of steel.

That is why Maxtor Metal’s engineers frame shredder procurement as a failure-mode diagnosis first and a D2-versus-DC53 decision second. The matrix below is a practical first screen:

The verified D2 blade-base case later in this guide is a textbook illustration of why this sequence matters. There, hardness measured within the expected range and heat treatment was not the root cause; the crack initiated at the mounting-hole stress concentration and propagated rearward. Read through the matrix, no grade swap — D2 to DC53 or otherwise — would have solved that failure on its own, because the geometry, not the steel, was the controlling defect.

Zusamenfassend: diagnose the failure mode first—chipping points toward toughness, flank wear points toward hardness, and fracture from a mounting hole points toward geometry, not steel grade at all.

Auswahl der Messergeometrie für die Altreifen- und ELV-Zerkleinerung

Material properties must work in harmony with mechanical blade design. Even the toughest steel grade will fail if structural stress points are built into the knife geometry.

Aggressive Hook Angle → Higher Rubber Bite → Greater Edge Stress

Generous Fillet Radii → Smooth Stress Flow → Eliminates Corner Cracks

Broad Cross-Section → High Flexural Rigidity → Prevents Blade Deflection

• Hook Profile Optimization: Extremely steep, sharp hook angles maximize bite on slippery elastic tires, but thin knife tips suffer extreme bending stresses when shearing steel bead wire. Truncating hook tips slightly increases structural support behind the cutting edge without sacrificing throughput.
• Section Thickness and Stiffness: Primary tire shredders apply tens of thousands of Newton-meters of torque. Knives must feature sufficient cross-sectional thickness to prevent lateral deflection, which alters blade-to-counter-knife clearances and causes binding.
• Stress Concentration Management: Internal keyways, bore corners, and mounting bolt holes are classic failure sites. Machining generous fillet radii (minimum 3–5 mm) at all internal corners redistributes internal tensile stresses, preventing fatigue cracks from propagating through the blade body.

Zusamenfassend: hook angle, fillet radius, and section thickness determine whether a tough steel grade actually gets to use that toughness—geometry and material selection have to be solved together.

Die wahre Wirtschaftlichkeit: Kosten pro Tonne schlagen Anfangshärte

In industrial recycling management, purchasing decisions driven solely by the initial price tag of replacement knives often result in higher overall operating expenses.

When a brittle, low-cost blade shatters after 300 operating hours, the true expense includes not just the purchase price of a replacement knife set, but also four to eight hours of unscheduled plant downtime, crane rental, maintenance labor, and lost production capacity. Primary tire shredding operational costs typically range between €40 and €60 per tonne. In high-capacity processing plants, unexpected downtime directly erodes profitability.

Profi-Tipp: Well-engineered shredder knives crafted from balanced DC53 or refined D2 steel routinely operate for 10,000 to 15,000 tonnes of whole tire processing before requiring edge resharpening or hard-facing maintenance.

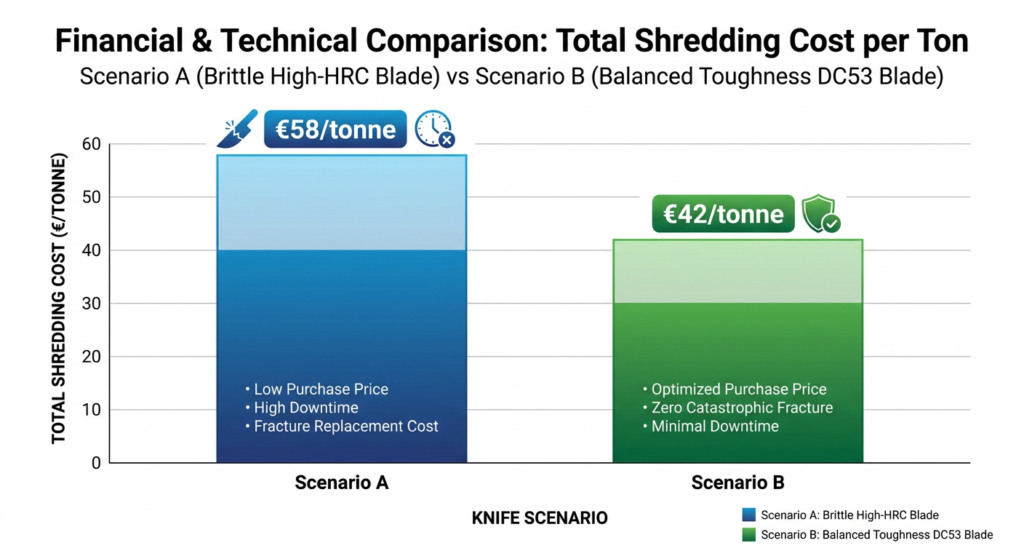

Building a Cost-Per-Ton Comparison Model

To calculate true tooling economics, maintenance directors utilize a Total Cost of Ownership (TCO) formula:

Cost Per Ton = Knife Set Cost + Installation Labor + Downtime Lost Revenue + Resharpening Costs/Total Processed Tonnage Over Blade Lifetime

The scenarios below are illustrative TCO calculations built around typical published cost ranges, not a specific customer’s invoiced figures—use them as a modeling template with your own site’s downtime and labor rates.

Scenario A: High-HRC Low-Toughness Blade (Standard D2 at 61 HRC)

• Initial Knife Set Cost: €12,000
• Lifespan Before Failure: 350 Hours (1,750 Tonnes) due to catastrophic edge spalling from tramp metal.
• Downtime & Replacement Labor: €9,500 (2 unscheduled shutdowns).
• Total Operational Cost: €21,500 / 1,750 Tonnes = €12.28 per tonne in knife overhead.

Scenario B: Balanced Toughness Blade (DC53 at 59 HRC)

• Initial Knife Set Cost: €15,500
• Lifespan Before Maintenance: 2,200 Hours (11,000 Tonnes) with uniform flank wear and zero cracking.
• Scheduled Maintenance Labor: €3,000 (1 planned overhaul).
• Total Operational Cost: €18,500 / 11,000 Tonnes = €1.68 per tonne in knife overhead.

Failure Mode Diagnosis: Reading the Knife

Inspecting worn shredder blades provides direct diagnostic feedback regarding rotor alignment and metallurgical fit:

• Uniform Abrasive Flank Rounding: Indicates that the blade material possesses adequate toughness, but wear resistance can be improved by stepping up HRC slightly or selecting a grade with higher vanadium content (such as M2 or DC53).
• Chipping, Spalling, or Corner Cracking: Signals that the blade is excessively brittle for the feedstock contamination level. The operator should immediately reduce HRC or transition to a tougher steel grade like DC53 or H13.
• Galling and Thermal Cracking: Indicates severe friction buildup caused by improper knife clearance, dull edges, or inadequate high-temperature tempering resistance.

Zusamenfassend: a cheaper, harder blade that fractures early can cost 7x more per tonne than a tougher blade with a higher sticker price, once downtime and unscheduled labor are counted.

Verifizierter Praxisfall: Gerissener D2-Messerfuß nach drei Monaten

To ground the hardness-versus-toughness discussion in real field evidence rather than only in brand experience, we reference an independently published failure-analysis case study in the peer-reviewed journal Engineering Failure Analysis. The study documents a steel blade-base cutting tool used on a two-rotor, low-speed shear machine pre-shredding end-of-life passenger and truck tires that contain steel-belt reinforcement.

The component was manufactured from AISI D2 tool steel, and the failure was a complete fracture, not a worn edge: it cracked through approximately three months into service, despite a predicted working life of roughly one year. Because this study is publicly indexed and independently verifiable, operators and engineers can use it as a neutral reference point when assessing their own knife metallurgy.

Evidence classification: Independent published failure-analysis case; not a Maxtor Metal customer case.

The fracture did not begin as uniform abrasive wear. Crack initiation occurred at the connection-hole region and then propagated rearward through the blade body, producing visibly distinct regions across the fracture face. Read as a system, the failure was an interaction between impact loading, stress concentration at the mounting geometry, and material/design fit — not a simple case of “the edge went dull.” Diagnosing this correctly matters, because a premature edge-rounding problem and a catastrophic fracture problem demand opposite engineering responses.

A Field-Verifiable Five-Step Failure Diagnosis

The most reliable way to separate a genuine material deficiency from a geometry- or impact-driven failure is a disciplined, evidence-based inspection sequence rather than a quick visual check:

1. Operating History: Record actual service hours, processed tire type, unexpected shutdowns, blade or base replacement frequency, and any operator-reported abnormal vibration or impact events.
2. Hardness Verification: Measure Rockwell hardness on the failed component. The goal is not to prove “harder is better” but to confirm whether the part was genuinely under- or over-hardened. In this case, hardness measured within the expected range, ruling out a simple hardness anomaly as the primary cause.
3. Chemical Analysis: Verify that the actual steel chemistry matches the specified grade (here, AISI D2). An off-spec heat silently invalidates every subsequent conclusion.
4. Macroscopic Fracture Inspection: Examine crack origin, crack direction, connection-hole geometry, and overall fracture morphology on the as-received part.
5. Metallography and SEM: Use optical microscopy, scanning electron microscopy, and cross-sectional examination to confirm the crack-initiation site and map the propagation path.

Only after these steps can an engineer conclude whether the corrective action belongs in chemistry, heat treatment, geometry, or operator/application management.

In this instance, the correct response was a design-and-material requalification rather than a one-line “switch to a harder grade and the problem disappears.” Because the fracture originated at the mounting-hole geometry under impact, upgrading toughness around unchanged stress-concentration points would still concentrate load at the same location. A balanced evaluation starts with DC53, an 8% chromium cold-work tool steel that Daido’s tool-steel catalog lists as an 8Cr-2Mo grade combining high hardness with high toughness — which is what gives it its higher-impact-toughness advantage over SKD11 (D2-class) at comparable hardness, working around 58–60 HRC rather than chasing 62–63 HRC. Here fracture resistance matters more than maximum attainable hardness, and the chosen range must ultimately be validated against the actual hook geometry, section thickness, and heat-treatment result — not assumed from a datasheet.

Quelle: “Failure Analysis of an AISI D2 Blade-Base Used in Tire Waste Recycling Machine,” Engineering Failure Analysis, 2013 (Elsevier ScienceDirect). Figures in the case table above report the published study’s documented findings; the surrounding engineering-response discussion contextualizes them for blade procurement and requalification.

Zusamenfassend: in the published case, hardness was within spec and heat treatment wasn’t the cause—the crack started at the mounting-hole stress concentration, meaning a harder or tougher grade alone would not have fixed it.

Risikofreie Beschaffung von Nicht-OEM-Messern

To reduce replacement tool budgets, many recycling operators procure non-OEM shredder blades. However, sourcing non-OEM components requires strict quality verification to prevent installation fitment issues and premature mechanical failure.

For the full incoming-inspection workflow this section summarizes—spec control, CMM sampling plans, and MTR documentation review—see Beschaffung von Ersatzmessern für Zerkleinerer: Spezifikationskontrolle, CMM-Plan, MTR-Validierung und Überprüfung der funktionalen Passung..

1. Precision Dimensional Tolerances: Verify that mounting bores, hex shafts, and thickness dimensions conform to H7/f7 fits. A thickness variance of just +0.05 mm across a 20-blade rotor stack creates cumulative stack-up errors that destroy precise counter-knife clearance. The GD&T controls and selective-fit spacer strategy that prevent this kind of stack-up error on multi-shaft rotors are covered in Ungleichmäßigen Verschleiß beheben: Leitfaden zur Toleranzkettung bei Mehrwellenmessern.
2. Metallurgical Certification: Demand official Material Test Certificates conforming to EN 10204 MTC 3.1. The certificate must document complete heat-lot chemical spectro-analysis and mechanical hardness testing.
3. Ultrasonic Inspection: For heavy-section blades where internal soundness is a specified requirement, define the ultrasonic inspection method, acceptance class, and sampling plan separately in the purchase specification. ISO 4957 can be used to specify the tool-steel grade and material requirements, but it should not be presented as the ultrasonic inspection acceptance standard.

Was ein verantwortungsvoller Sonder-Messerhersteller nachweisen können muss

Asking for certificates on paper is one thing; being able to explain how those numbers were produced is another. Because procurement risk lives in the batch-to-batch gap between a datasheet and a delivered knife, Maxtor Metal runs every custom heavy-duty blade through a five-stage qualification protocol. This keeps a requested material change directed, documented, and traceable rather than assumed:

1. Stage 1 — Incoming Material (traceability): For each heat, the steel grade, heat number, and mill certificate are recorded, with chemical composition and material thickness confirmed, and ultrasonic inspection performed on any heavy sections the drawing requires to be internally sound. Off-spec chemistry is stopped before it reaches a machine.
2. Stage 2 — Heat-Treatment Verification: Each batch carries batch and furnace identifiers plus hardness mapping, quenching and tempering records, and dimensional-change readings, confirming that the delivered hardness profile matches the drawing rather than the invoice.
3. Stage 3 — Blade Geometry: Critical dimensions — OD, ID, thickness, flatness, parallelism, mounting-hole position, edge radius, and edge runout — are measured on finished parts. This is where the ±0.05 mm stack-up errors that destroy counter-knife clearance are caught before a rotor set is assembled.
4. Stage 4 — Failure Inspection on Returned Knives: When a customer returns a failed knife, the part is investigated rather than silently replaced: photography, macroscopic inspection, hardness mapping, chemical verification, crack-origin inspection and, when necessary, metallography and SEM to pin down the actual failure mode.
5. Stage 5 — Material Decision and Re-qualification: Only after Stages 1–4 can an engineer answer the question that really drives replacement cost — not “D2 or DC53?” but “is this duty wear-dominated, impact-dominated, or stress-concentration-dominated?” — and then select and re-qualify the grade, hardness, and geometry accordingly.

This is offered as a method rather than as any single customer’s proprietary figures. The independently verifiable anchors for it remain the published D2 blade-base failure above and Daido’s own microstructural and impact data for DC53, so operators can check Maxtor Metal’s approach against their own evidence instead of taking a vendor’s word alone.

Häufig gestellte Fragen

Welcher Werkzeugstahl eignet sich am besten zum Zerkleinern von stahlarmieren Altreifen?

Für die Primärzerkleinerung von Reifen mit hochfesten Stahldrähten und gelegentlichen Metallstörstoffen gilt der auf 58–60 HRC vergütete Werkzeugstahl DC53 als branchenweiter Maßstab. Er bietet bei gleichbleibend hoher Verschleißfestigkeit die doppelte Kerbschlagzähigkeit im Vergleich zum Standard-Werkzeugstahl AISI D2 (1.2379).

Warum neigen Standard-Schreddermesser aus D2-Stahl beim Recycling von Altfahrzeug-Schrott (ELV) zu Ausbrüchen?

Standardmäßiger AISI D2-Stahl enthält grobe Chrom-Primärkarbide in seiner Mikrostruktur. Wenn ein D2-Messer auf hochzugfeste Wulstdrähte oder Automobilstrukturstahl trifft, wirken diese großen Karbide als Spannungskonzentrationspunkte. Dies löst Mikrorisse aus, die rasch zu Abplatzungen und Ausbrüchen an der Schneidkante führen.

Wie schneidet DC53 im Vergleich zu D2 bei Primärschreddermessern ab?

DC53 ist eine weiterentwickelte Modifikation des Werkzeugstahls D2 (1.2379). Durch die Reduzierung des Kohlenstoffgehalts und die Anwendung eines Hochtemperatur-Doppelanlassens (520–530°C) bildet DC53 eine feinere Karbidstruktur aus. Dies verleiht DC53 bei gleicher Härte (58–60 HRC) etwa die doppelte Kerbschlagzähigkeit nach Charpy im Vergleich zu D2 und verhindert katastrophale Messerbrüche unter schweren Stoßbelastungen.

Welche Rockwell-Härte (HRC) sollten Schreddermesser für Altreifen aufweisen?

Für Primärschredder in der Altreifen- und ELV-Verarbeitung wird ein Härtebereich von 56–60 HRC empfohlen. Sekundärgranulatoren, die sauberes, stahldrahtfreies Gummimehl verarbeiten, können höhere Härtebereiche (60–62 HRC) nutzen, um die Abrasionsbeständigkeit und Standzeit zu maximieren.

Wie viele Tonnen kann ein Satz Primärschreddermesser für Altreifen vor dem Nachschleifen verarbeiten?

Bei Verwendung von hochwertigem, metallurgisch optimiertem Werkzeugstahl wie DC53 oder veredeltem D2 verarbeitet ein Messer-Satz für Primär-Altreifenschredder in der Regel zwischen 10.000 und 15.000 Tonnen Altreifen, bevor ein Nachschleifen oder eine Panzerung (Hard-Facing) erforderlich ist.

Wie wirken sich kumulierte Dickentoleranzen auf die Leistung von Nicht-OEM-Schreddermessern aus?

Auf Mehrmesser-Schredderwellen summieren sich geringe Dickenabweichungen über die gesamte Rotorlänge. Wenn einzelne Messer die Toleranz auch nur um ±0,03 mm überschreiten, erzeugt ein Paket aus 30 Messern einen seitlichen Gesamtfehler von fast 1 mm. Dies führt zu Kollisionen zwischen Rotor- und Gegenmessern, übermäßiger Reibung und Rotorblockaden.

Welche Qualitätsdokumente sollte ich beim Kauf von Nicht-OEM-Ersatzmessern anfordern?

Sie sollten stets ein Abnahmeprüfzeugnis EN 10204 3.1 (MTC 3.1) zur Bestätigung der chemischen Zusammensetzung und Chargenhärte nach dem Wärmebehandeln, einen Ultraschall-Prüfbericht zur Bestätigung der inneren Fehlerfreiheit sowie ein CNC-Maßprüfprotokoll zur Verifizierung von Bohrungspassung und Dickenparallelität verlangen.

Fazit

Die Maximierung der Wirtschaftlichkeit bei der Zerkleinerung von Altreifen und ELV-Schrott erfordert eine durchdachte metallurgische Strategie anstelle der blinden Suche nach dem härtesten Messer. Während extreme HRC-Werte theoretische Verschleißfestigkeit bieten, führen reale Recyclingströme zu schweren Stoßbelastungen, die eine hohe Kerbschlagzähigkeit und strukturelle Ermüdungsfestigkeit erfordern. Durch den Ausgleich zwischen Rockwell-Härte und Charpy-Kerbschlagarbeit — speziell durch hochentwickelte Werkzeugstähle wie DC53, Präzisions-Wärmebehandlung und eine spannungsoptimierte Messergeometrie — vermeiden Betreiber katastrophale Messerbrüche und senken die Gesamtbetriebskosten pro Tonne drastisch.

Führende Recyclingunternehmen kombinieren metallurgische Präzision mit strukturierten Beschaffungsprozessen für Nicht-OEM-Ersatzteile, um das Werkzeugbudget zu kontrollieren, ohne die Maschinensicherheit zu gefährden.
