로터리 슬리터 나이프 ROI: PM-HSS vs 공구강 총소유비용(TCO) 모델 및 날 수명(Edge Life) 분석

로터리 슬리터 나이프는 비용 내역서에서 작은 항목처럼 보일 수 있지만, 그것이 미치는 영향, 즉 '교체 작업(changeovers), 스크랩(scrap), 버(burr) 재작업, 그리고 라인이 코일 전체에서 공차를 유지할 수 있는지 여부'를 모델링해 보면 그 가치는 완전히 달라집니다.

This guide is written for process, equipment, production, and purchasing leaders at coil slitting operations who need a defensible way to compare options, especially when a higher-priced knife set claims longer life. It’s also the kind of ROI conversation many teams have with suppliers like Maxtor Metal when they move into tighter edge specs, higher-strength grades, or higher line speeds.

If your operation uses roller shear equipment alongside rotary slitting, material selection logic, clearance engineering, and the failure mode diagnostics that directly affect knife ROI are covered in Maxtor Metal’s rotary slitter knives and roller shear blades engineering guide.

• Purpose: a data-driven procurement guide to model total cost of ownership and rotary slitter knife ROI.
• Audience: process, equipment, production, and purchasing leaders at coil slitting operations.
• Outcomes: a practical ROI model, material/coating selection logic, and procurement/QA checklist.

로터리 슬리터 나이프 ROI 산출을 위한 총소유비용(TCO) 프레임워크

Variables and assumptions

A knife ROI model only works if your variables match how your plant actually consumes knives. Keep the inputs simple at first and make the assumptions explicit.

Production and quality variables

• 처리량: tons per hour, and planned tons per year per line.
• Edge requirement: target burr height (often tracked as a percentage of thickness in coil processing specs).
• Scrap and rework: scrap rate tied to edge condition (startup scrap, downstream deburr/edge conditioning, customer rejects).

Knife consumption variables

• Edge life: tons per grind (or hours per grind), by material grade and coil mix.
• Regrind count: number of safe regrinds before minimum diameter/thickness, or before edge geometry becomes unstable.
• Regrind cost: per knife, per set, or per lot.
• Knife failure mode: wear-out vs micro-chipping. (Chipping breaks models because life becomes non-linear.)

Setup and downtime variables

• 전환 시간: minutes per knife swap, including setup verification.
• Downtime cost: use either contribution margin per hour or an agreed internal “lost production” cost per hour.

핵심 요점: A higher-priced knife only needs to win on one of four levers—edge life, regrinds, downtime, or scrap—to beat a cheaper baseline.

Cost-per-ton formula

Use a cost-per-ton structure so every stakeholder can compare apples to apples.

Let:

• 피 = purchase cost per knife set (or per pair) deployed on one line (USD/set or your local currency)
• G = regrind cost per cycle (USD/cycle on the same basis as P)
• N = total usable grind cycles (count; initial edge + regrinds)
• 엘 = tons per cycle (tons/grind cycle)
• 디 = downtime minutes per changeover (min/changeover)
• C_d = downtime cost per hour (USD/hour)
• 에스 = scrap/rework cost per ton attributable to knife wear or burr drift (USD/ton; delta vs baseline)

Then:

Knife cost per ton

• Tooling + regrinds:Knife cost/ton = (P + (N-1) × G) / (N × L)
• Downtime per ton:Downtime cost/ton = (D/60) × C_d × (1/L)
• Scrap/rework delta per ton:Quality cost/ton = S

Total cost per ton

TCO/ton = Knife cost/ton + Downtime cost/ton + Quality cost/ton

Simple ROI interpretation

To keep ROI from becoming subjective, compute the incremental tool spend per ton and compare it to the TCO savings per ton.

• Incremental tool spend per ton:

ΔTool spend/ton = (P_option + (N_option-1) × G_option) / (N_option × L_option) – (P_base + (N_base-1) × G_base) / (N_base × L_base)

• TCO savings per ton:

ΔTCO/ton = TCO/ton_base – TCO/ton_option

Then:

ROI ratio = (ΔTCO/ton) / (ΔTool spend/ton)

If you want a standards anchor for how materials and hardness are typically specified and verified, start with ISO 4957:2018 Tool steels and Rockwell hardness testing via ASTM E18.

Worked example (numbers for illustration only)

Assume one line uses a knife set with:

• 피 = $2,400/set
• G = $220/cycle
• N = 6 cycles
• 엘 = 800 tons/cycle
• 디 = 50 min/changeover
• C_d = $900/hour
• 에스 = $0.35/ton

1. Tooling + regrinds per ton:

Knife cost/ton = (2400 + (6-1) × 220) / (6 × 800) = 3500/4800 = 0.729 USD/ton

2. Downtime cost per ton:

Downtime cost/ton = (50/60) × 900 × (1/800) = 0.938 USD/ton

3. Quality cost per ton:

Quality cost/ton = S = 0.35 USD/ton

Total:

TCO/ton = 0.729 + 0.938 + 0.35 = 2.017 USD/ton

You can now repeat the same math for an alternative knife set and compare TCO/ton directly, then calculate ROI using the TCO savings per ton divided by the incremental tool spend per ton.

Data capture plan

A good ROI model is mostly a measurement plan. If you only do one thing, stop relying on “we think it lasts about X coils.”

What to log per knife set

• Coil mix: material grade, thickness range, coating condition, average width and slit count
• Line speed and tension mode
• Tons to first burr drift, and tons to changeout
• Regrind count and removed stock per grind
• Setup readings: clearance/overlap target, spacer stack verification, and runout checks (for a structured logging format covering ISO fit class, TIR readings, and blue-check results, see the arbor fit and runout audit template
• Quality outcomes: burr height trend, width drift, edge wave, rejects

How to measure burr and edge condition

• For inline monitoring concepts, Micro-Epsilon shows typical approaches in burr measurement in slitting lines.
• For burr height definition and incoming inspection framing in shearing operations: use your machine OEM’s setup documentation and the burr acceptance criteria defined in your internal control plan or customer spec.
• For practical setup geometry and runout checks, use your machine OEM setup sheets and a repeatable inspection routine: verify arbor runout and parallelism, confirm spacer stack thickness, set clearance/overlap with a defined method, and validate burr height on a short verification coil before committing to a full run.

분말 고속도강(PM-HSS) vs 공구강의 성능 경제성 및 가치 분석

Metallurgy and mechanical properties

For procurement, the key point isn’t “which steel is better.” It’s which steel holds an edge in your wear mechanism without trading away too much toughness.

Tool steels used for rotary slitter knives (common examples: D2-type, DC53-type, other cold-work tool steels) are typically selected for a balance of wear resistance and toughness. They can be cost-effective when the failure mode is gradual wear and when your setup window is stable.

PM-HSS (powder metallurgy high speed steel) is chosen when wear resistance and hot hardness matter more—think higher speeds, tougher grades, higher temperatures at the edge, and environments where conventional carbide distribution can lead to uneven wear. ISO explicitly covers tool steels produced by powder metallurgy in ISO 4957:2018.

Hardness alone isn’t enough, but it is a check you can audit. Use Rockwell C methods per ASTM E18 to verify that delivered knives are in the requested range and consistent lot to lot.

Edge life and resharpen cycles

From an ROI view, PM-HSS earns its keep in two situations:

1. It increases tons per grind without increasing burr drift.
2. It increases the number of predictable regrinds before geometry or size becomes the limiting factor.

What breaks ROI models is micro-chipping or unstable edge wear. If your “better” knife chips early, the average edge life number becomes meaningless because one failure can force a line stop, re-thread, and scrap.

Practical way to compare options:

• Compare tons per grind (median, not just average).
• Compare variance (wide variance is expensive because it disrupts planning).
• Compare grind-to-grind consistency (does performance drop sharply after the first regrind?).

Coatings by material and speed

Coatings are not a blanket upgrade. They’re a friction and wear management tool. The coating that helps in thin, abrasive laminates may be wrong for thicker, higher-impact slitting.

When pickup/galling is a concern (common on certain stainless grades), it helps to frame it correctly: galling is a severe form of adhesive wear driven by metal-to-metal contact, pressure, and lubrication breakdown. The British Stainless Steel Association summarizes practical contributors in "Factors affecting wear and galling” (BSSA).

A simple selection logic you can use in sourcing discussions:

• When adhesive pickup and galling drive quality loss (common on certain coated or tacky surfaces), prioritize low-friction coatings and a surface finish strategy.
• When abrasive wear dominates (hard coatings, high-strength grades, contaminated surfaces), prioritize wear-resistant PVD-type coatings but verify edge integrity after coating.
• When chipping risk dominates (setup variability, vibration, thicker gauges), treat coating as secondary to substrate toughness and edge geometry.

If you want a procurement-quality spec basis for HSS, separate “tool steel” from “high speed steel”: in ASTM’s framework, HSS is specified under ASTM A600 rather than ASTM A681.

날 사이드 갭(Clearance), 버(Burr) 발생 및 조립 누적 공차

Burr mechanisms and control window

Burr is the symptom. The root causes are almost always a combination of clearance, overlap, rigidity, and stability.

You can use two practical rules of thumb to structure troubleshooting:

• If burr is uniform and gradually increasing, you’re probably looking at wear and clearance drift.
• If burr is periodic or intermittent, suspect runout, spacer damage, or machine alignment issues before you change clearance values.

For industry framing on how setup geometry affects slit quality and knife life, a solid baseline is to use your slitter OEM documentation and internal setup sheets, then standardize how you verify clearance/overlap, arbor runout, and spacer condition before you adjust process settings.

For a practical, non-OEM baseline on why alignment and geometry control matter in rotating systems, Fluke explains shaft alignment tolerances and why they impact reliability—the same logic applies when arbor alignment and runout drive burr variance and unexpected changeouts.

Precision targets for knives and spacers

Your knife steel choice can’t overcome a loose tolerance stack.

Targets that commonly matter in procurement and incoming inspection:

• Thickness tolerance and parallelism on knives and spacers (controls slit width repeatability)
• Bore fit and concentricity (controls runout under load)
• Surface finish on knife faces (affects pickup and edge damage)

When a supplier quotes a premium steel but can’t provide stable thickness and runout inspection data, you’re not buying ROI. You’re buying uncertainty. For the specific bore fit classes, TIR acceptance tiers, and blue-check protocol that define “stable” in a spindle fit context, see the OEM 슬리터 나이프 설계도: 스핀들 끼워맞춤 감사, ISO 공차 및 TIR 게이트.

Setup verification and error-proofing

The fastest ROI wins often come from error-proofing, not metallurgy.

A practical setup verification routine:

• Clean and inspect spacers for nicks; verify stack thickness against target.
• Verify arbor runout and parallelism; document the “as found” state.
• Set clearance and overlap using a defined method, then run a short verification coil and measure burr.
• Lock the settings and record them as a setup sheet for the specific material family.

Teams that want a traceable, repeatable framework for this routine — covering ISO fit selection, dial-indicator sweep, and trial-slit confirmation — can use the spindle fit audit checklist as a starting template.

ROI 투자 효과 예측 모델 및 민감도 분석

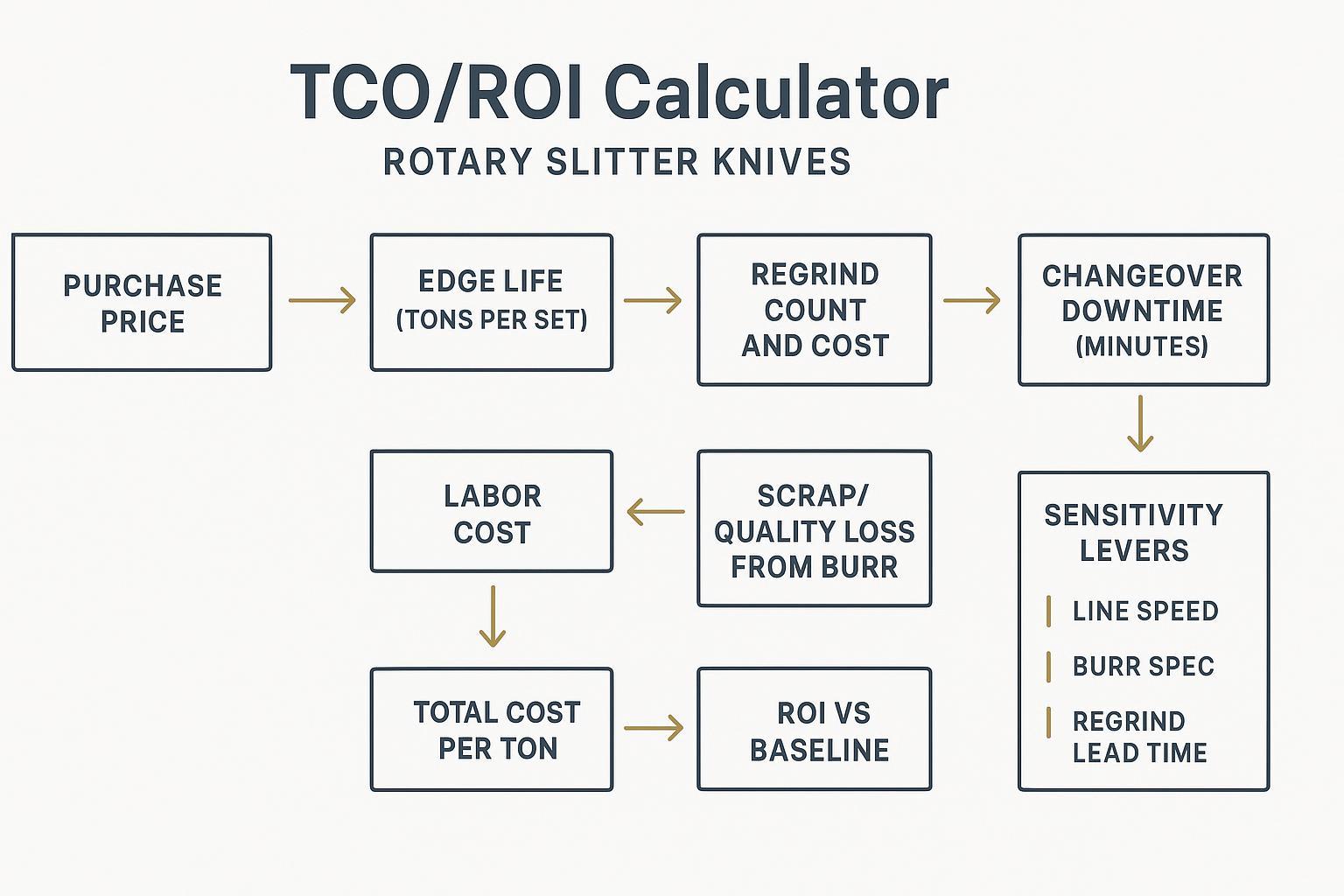

Baseline scenario and calculator layout

Start with your current “good enough” knife as the baseline and build the calculator in blocks so each department can audit their part.

Calculator blocks

• Tooling: purchase cost, regrind cost, max regrinds
• Performance: tons per grind by material family
• Changeovers: minutes per event, labor cost, opportunity cost
• Quality: scrap/rework delta from burr drift or width drift

If you want the calculator to survive a procurement review, show two things:

• Which inputs are measured vs assumed
• What happens when the assumptions are wrong

Sensitivity levers and break-even curves

In practice, break-even almost always hinges on one of these levers:

• Downtime cost per hour: if the line is capacity constrained, downtime dominates.
• Tons per grind: if your current knives are short-lived, small improvements pay back fast.
• Scrap and rework: if burr creates downstream work, quality dominates.
• Regrind logistics: long lead times force more spares and increase the risk of running dull tools.

Model each lever as a simple multiplier and build a one-page break-even view:

• x-axis: tons per grind improvement
• y-axis: TCO/ton difference
• curves: different downtime cost assumptions

Case-style examples across materials

Rather than fake numbers, use anonymized, range-based examples you can audit internally.

Measurement notes for interpreting case results

To keep comparisons reproducible, the cases below assume:

• Life is measured to a quality limit, not catastrophic failure (for example: burr limit as a % of thickness, or a downstream reject/SPC threshold).
• Sampling cadence is defined up front (startup check, then per coil or per tonnage interval).
• Variance is tracked (median + spread), because unpredictable early failures can erase the average-life advantage.

Case 1: AHSS/HSLA with tight burr requirements

Based on field service records aggregated across Maxtor Metal after-sales engagements (anonymized, range-normalized

Applicability: DP780–DP980 and HSLA 550–780 MPa, thickness 0.8–2.5 mm, manual changeover. Burr limit ~5–8%t. Changeout occurs when burr crosses the SPC control line (not when the knife catastrophically chips). Regrind restores a consistent edge geometry.

Measurement sequence (example)

• Burr check at end of each coil (5 points per edge)
• Record cut-edge temperature and knife OD
• Changeout if burr exceeds the control line for two consecutive coils
• After each regrind, log cumulative metal removed

Operator behavior note (why process window still matters)

When PM steel was first trialed, operators reused the previous tool-steel clearance without adjustment. The first cycle showed localized edge polishing and only ~20% life improvement. After increasing side clearance by ~1–2% of thickness and re-calibrating knife overlap, life returned to >70% improvement.

Typical payback: 2–6 months; high C_d lines can be <1 month.

Case 2: Stainless with pickup/galling as the dominant failure mode

Based on field service records aggregated across Maxtor Metal after-sales engagements (anonymized, range-normalized

Applicability: SUS304 / 316L, thickness 0.5–2.0 mm, “no coating defect allowed” surface requirement. Failures are primarily driven by pickup/galling rather than abrasive wear.

Measurement sequence (example)

• Check for knife pickup each coil
• Record cut-edge Ra
• Inspect edge radius every 100–150 tons
• Stop production when scratches become continuous

Process limitation note

If lubrication conditions drift materially (e.g., emulsified coolant concentration drops), the PM advantage can shrink because galling is driven by friction conditions, not substrate alone.

If you want a technical anchor for how lubrication and surface condition change galling risk, TWI’s knowledge base covers the mechanics of galling and its surface contact drivers in a process-neutral format.

Operator behavior note

Early trials tried to “use all the PM life” by delaying changeouts. Once pickup started, surface scratches escalated quickly and the line had to stop anyway. Switching the changeout trigger to a quality limit (not a wear limit) reduced total TCO even if it meant leaving some theoretical knife life unused.

Typical payback: 4–9 months.

Case 3: Aluminum with high throughput and downtime-sensitive economics

Based on field service records aggregated across Maxtor Metal after-sales engagements (anonymized, range-normalized

Applicability: 1xxx / 3xxx / 5xxx series, thickness 0.3–1.5 mm, high-speed continuous production, automatic steering/alignment functioning normally.

Measurement sequence (example)

• Runout check each shift
• Burr height recorded each coil
• Knife OD measured every two coils
• Total downtime recorded at each changeover

Process limitation note

Aluminum wear is often light, so scrap reduction from PM can be limited. ROI is usually driven by fewer stops, more stable setups, fewer mid-run compensations, and fewer unplanned changeovers.

Operator behavior note

Some crews perform preventive changeouts on night shifts, so actual life utilization may only be ~85–90% of theoretical. With PM, lower life variance often reduces “early preventive swaps,” cutting downtime by ~5–10 minutes per event.

Typical payback: 8–18 months; strongest on high-speed, high-volume lines with higher C_d.

Tip: These ranges can be plugged directly into the TCO variables (L, N, D, C_d, S, plus P and G) to produce a defensible TCO/ton band for procurement review.

Sensitivity analysis shortcut: keep the measured ranges for L, N, D, C_d, S, and G fixed, then rerun the calculator with P = 1.8×, 2.3×, and 2.8× the baseline tool-steel price to see how robust the break-even point is under different premium assumptions.

조달 기준, 품질 보증(QA) 및 유지보수 서비스 프로그램

Specifications and OEM compatibility

A procurement spec that drives ROI is clear on geometry and inspection, not just material name.

Include in RFQs:

• Knife OD/ID/thickness, tolerances, and parallelism requirements
• Bore fit class, concentricity/runout target, and how it will be measured
• Edge geometry: bevel angle, land, edge radius (and allowed change after regrind)
• Intended material families (steel, stainless, aluminum, coated) and thickness ranges

QA, traceability, and inspection

If your organization is audited (or your customers are), traceability is not optional. It’s how you keep knife performance from becoming a guessing game.

A practical QA package to request and retain (this is standard practice with suppliers such as Maxtor Metal, and it should be vendor-agnostic):

• Material certificate and heat/lot identification
• Heat treatment record and hardness map (multiple points; variability matters as much as the nominal)
• Dimensional inspection report for thickness, parallelism, bore, and runout
• Surface finish verification if your application is sensitive to pickup
• Regrind history log tied to the knife serial/lot

Hardness verification should reference the method (Rockwell C) per ASTM E18, and material specs can be tied back to ISO 4957:2018 where applicable.

QA documentation sample (what “good” looks like)

If you want incoming inspection to be auditable (and comparable across suppliers), a practical “minimum viable” record set for each knife lot is:

• 자재 추적성: heat/lot ID + material certificate reference
• Heat treat record: target hardness range + actual readings by location (e.g., OD, mid-radius, near bore)
• Dimensional inspection: thickness and parallelism, bore size/fit notes, and runout/concentricity results
• 표면 상태: face finish measurement or process note (when pickup risk is high)
• Regrind log: date, stock removed, post-grind thickness/runout check, and sign-off

You can turn the above into a one-page checklist so each receiving inspection is consistent:

• Lot/serial:
• Material spec:
• Hardness target / actual (min–max):
• Thickness (min–max):
• Parallelism:
• Bore:
• Runout/concentricity:
• Face finish:
• Regrind count / stock removed:
• Inspector + date:

Regrind, lead times, and inventory strategy

Regrind programs are where “cheap” knives often become expensive.

Build a simple inventory strategy:

• Define your minimum safe edge condition (burr threshold or tons limit) so operators don’t stretch tools unpredictably.
• Set a regrind trigger based on burr trend, not just calendar time.
• Keep enough spare sets to cover regrind lead time plus variability.

If you qualify a supplier regrind service (including Maxtor Metal’s regrind workflow when it’s available for your knife type), treat it like any other critical process:

• document the allowed stock removal per grind
• verify edge geometry restoration method
• require after-grind inspection reports for thickness and runout

결론

One-page summary: where PM tool steel tends to pay back

Tip: If you want a quick robustness check, keep L/N/D/C_d/S/G ranges fixed and rerun sensitivity with P = 1.8×, 2.3×, and 2.8× baseline.

The ROI question isn’t whether PM-HSS is “better” than tool steel. It’s whether it changes the cost-per-ton equation in your line.

• Key takeaways: PM-HSS advantages, coating fit by material, and setup/tolerance priorities.
• Next steps: populate the ROI template with plant data and run sensitivity checks.
• Start collecting: burr height vs tonnage, edge life, changeover time, scrap, regrind counts.

FAQs：

Q: 로터리 슬리터 나이프의 '톤당 비용(Cost per ton)'은 어떻게 계산합니까?

A: 다음 세 가지 요소를 합산하는 비용 모델을 사용하십시오: (1) [신품 구입비 + 재연마 비용]을 나이프 총 수명 동안의 총 생산 톤수로 나눈 값, (2) [1회 교체 작업당 다운타임 비용]을 교체 주기 사이의 생산 톤수로 나눈 값, (3) [버 변화(Burr drift)로 인한 스크랩/재작업 손실 편차]. 핵심은 나이프의 '수명'을 치명적인 파손(Catastrophic failure)이 일어날 때까지의 톤수가 아니라, '목표 날 품질 한계(Edge-quality limit)를 유지하는 시점까지의 생산 톤수'로 정의하는 것입니다。

Q: 코일 슬리팅 나이프에 분말 고속도강(PM-HSS)을 사용할 가치가 있습니까?

A: 충격으로 인한 '날 치핑(Chipping)'이 아니라, '내마모 안정성(1회 연마당 생산 톤수)'과 '예측 가능한 재연마 주기'가 공정의 핵심 제한 요소라면 가치가 있습니다. 만약 라인에 진동, 정렬 불량, 또는 광범위한 판두께 변화가 있다면 먼저 세팅 정밀도(Setup window)를 개선하십시오. 그렇지 않으면 소재를 업그레이드해도 데이터상으로 효과를 보기 어렵습니다。

Q: 날카로운 나이프를 사용함에도 불구하고 슬리팅 공정 중 버(Burr)가 증가하는 원인은 무엇입니까?

A: 버(Burr)가 발생하는 대부분의 원인은 날 사이드 갭 편차(Clearance drift), 중첩량(Overlap) 오류, 스페이서 적층 마모 또는 나이프 축 흔들림(Arbor runout) 때문입니다. 만약 버가 균일하지 않고 주기적으로 발생한다면, 갭 설정을 바꾸기 전에 축의 런아웃(Runout)과 나이프 툴링 적층 상태를 먼저 점검하십시오。

Q: 로터리 슬리터 나이프 품질 보증(QA) 및 이력 추적성(Traceability) 패키지에서 무엇을 요구해야 합니까?

A: 최소한 다음 항목들이 포함되어야 합니다: 로트 ID(Lot ID)가 명시된 원소재 성적서, 열처리 성적서, 다점 경도 측정 결과(ASTM E18에 따른 로크웰 경도 HRC), 치수 검사 성적서(두께/평행도/내경/런아웃), 그리고 시리얼 번호 또는 로트에 연동된 재연마 이력 관리 기록입니다. 이를 통해 현장 마모 성능을 제어 가능한 제조 변수와 직접 대조하고 분석할 수 있습니다。

Q: 로터리 슬리터 나이프는 몇 번이나 재연마할 수 있습니까?

A: 허용 가능한 최소 외경/두께, 날 기하학적 형상(Geometry) 요구 조건, 그리고 1회 연마 시의 연마량(Stock removal)에 따라 다릅니다. 재연마 시마다 소모되는 연마량을 추적 관리하고, 형상이 불안정해지거나 버(Burr) 제어력이 저하되기 전에 재연마 한계점에 도달했음을 판단해야 합니다。

Q: 로터리 슬리터 나이프는 몇 번이나 재연마할 수 있습니까?

A: 코팅은 주로 마찰, 열 및 마모 형태(Wear mode)를 변화시킵니다. 소재의 소착 현상(Pickup)을 줄이고 연삭 마모(Abrasive wear)를 지연시킬 수 있지만, 부적절한 세팅이나 설비 강성 저하로 인한 날 치핑(Chipping) 문제를 해결해 주지는 못합니다. 가공 재료의 강종 제품군과 라인 속도를 기준으로 코팅을 평가하고, 코팅 후 날 끝의 건전성(Edge integrity)을 반드시 검증해야 합니다。

Q: 나이프 재질을 바꾸지 않고 슬리터 나이프의 투자 대비 수익률(ROI)을 가장 빨리 높이는 방법은 무엇입니까?

A: 공정 편차를 줄이는 것입니다. 스페이서 검사를 표준화하고, 축의 흔들림(Runout)을 검증하며, 강종 제품군별로 재현 가능한 갭/중첩량(Clearance/Overlap) 설정 공정을 확립하십시오. 예기치 않은 라인 정지(비계획적 나이프 교체)를 단 1회 줄이는 것이, 어설프게 나이프 강재 등급을 업그레이드하는 것보다 훨씬 큰 비용 절감 효과를 가져옵니다。

본 ROI 및 TCO 평가 프레임워크는 특정 공급업체에 국한되지 않는 중립적인 기준(supplier-neutral)이며, 귀사 라인의 실제 측정 데이터와 점검 기록을 바탕으로 유기적인 자격을 갖춘 모든 나이프 제조사를 객관적으로 평가하는 데 활용할 수 있습니다。

작가

Jerry Chu — Technical Support Specialist, After-sales Service, Maxtor Metal

Jerry has 10 years of cross-industry application experience in cutting and slitting (paper converting, plastics recycling, metal coil slitting, and wood processing). His after-sales work at Maxtor Metal focuses on translating field troubleshooting data into cost-per-ton comparisons — helping process and procurement teams build defensible ROI cases when evaluating knife material, coating, and regrind program changes.

Certifications: PMP, CMRP
