Ajustes de Sobreposição de Facas Circulares: Mecânica de Cisalhamento, Janelas de Material e Controle de Eixo

No processamento contínuo de bobinas metálicas, obter uma borda limpa, esquadrada e livre de rebarbas é o principal parâmetro de referência de uma linha de corte longitudinal bem calibrada. Por trás de cada produção de alto rendimento existem dois parâmetros geométricos críticos que regem a qualidade do corte por cisalhamento: a folga lateral horizontal e a sobreposição vertical das facas circulares. Enquanto a folga horizontal dita a concentração de tensões ao longo da largura da tira, a sobreposição vertical da faca determina a profundidade exata de penetração da lâmina necessária para transicionar o metal limpamente da deformação plástica para uma fratura controlada.

A importância operacional da sobreposição das facas circulares não pode ser subestimada. Definir a sobreposição vertical correta minimiza a altura da rebarba, preserva a geometria da borda cortada e prolonga drasticamente a vida útil da lâmina. Por outro lado, configurações incorretas de sobreposição causam rasgamento das bordas, geração excessiva de rebarbas, lascamento prematuro da lâmina, geração de refugo e dispendiosas paradas na linha.

Para supervisores de linhas de corte longitudinal, engenheiros de processos e gerentes de fábrica, dominar a calibração de sobreposição é essencial para manter tolerâncias de borda rigorosas. Os operadores de equipamentos podem eliminar achismos, proteger estoques de bobinas de alto valor e alcançar uma qualidade de borda consistente e repetível em diversos tipos de materiais ao implementar protocolos de ajuste dinâmicos adaptados ao material, juntamente com ferramentas de retificação de precisão.

Maxtor Metal designs and manufactures rotary slitting knives and arbor spacers to the dimensional tolerances this guide describes — including OD concentricity, face flatness, and hardness consistency across a full knife set — so that overlap settings made on paper translate directly to stable cut behavior on the line.

What this guide covers
Uma referência técnica e de ajuste para a sobreposição vertical de facas circulares no corte longitudinal de bobinas: por que a profundidade de penetração controla a iniciação da fratura, como a sobreposição interage com a folga horizontal para determinar a proporção entre a zona de cinto de corte e a zona de fratura, janelas iniciais específicas por material para aço carbono, AHSS, alumínio e aço inoxidável, e como sistemas automatizados de posicionamento de eixos mantêm — ou perdem — uma configuração de sobreposição estável ao longo de uma corrida de produção.

A quem se destina
Engenheiros de processos configurando ou auditando a sobreposição para uma nova classe de material ou espessura; líderes de manutenção solucionando problemas de rebarbas nas bordas e desgaste de facas vinculados a erros de penetração; operadores de equipamentos calibrando sistemas automatizados de posicionamento de eixos após a reafiada; e setor de compras técnicas avaliando especificações dimensionais de facas que afetam a estabilidade da sobreposição.

Como usá-lo em uma linha ativa: Comece com a tabela de sobreposição específica para o material como sua linha de base → Verifique o alinhamento do eixo e o diâmetro externo (OD) da faca antes de ajustar a penetração → Faça uma alteração de cada vez e realize um teste com uma tira curta de verificação → Registre o resultado em relação à faixa de aceitação de rebarba antes de passar para a velocidade de produção.

Principais métricas a acompanhar
Burr height as % of strip thickness at steady-state production speed · Burnish/break ratio on the cut face (target ~1:2 to 1:3 for standard carbon steel) · Knife OD after each regrind (to recalculate required arbor height correction) · Edge condition at 30–50× after changeover and after speed ramp

Principal Conclusão: O desvio de sobreposição é quase sempre um problema dimensional — alteração do diâmetro externo da faca após a reafiada, desgaste dos espaçadores ou flexão do eixo —, e não uma falha do sistema de controle. Corrija a dimensão, não o mostrador.

A Ciência da Sobreposição de Facas Circulares

Rotary knife overlap (frequently termed penetration or vertical entry) is defined as the vertical distance that the outer periphery of the upper circular slitting blade extends below the top tangent line of the lower circular slitting blade. It represents the physical vertical engagement between opposing knife edges on the slitting arbor.

It is vital to distinguish vertical overlap from horizontal side clearance:

• Vertical Overlap: Controls the depth of initial knife entry into the strip and influences the point along the cut line where internal tensile stress exceeds the material’s ultimate shear strength.
• Horizontal Side Clearance: Refers to the lateral gap between the cutting faces of the upper and lower blades, which directs the angle and propagation path of the shear fracture.

Conclusão principal: Vertical overlap controls how deeply the rotary knives penetrate the metal strip before fracture occurs, while horizontal side clearance directs the angle of propagation. Both parameters must work in tandem to establish a clean edge.

The fundamental governing principle for setting vertical overlap is the minimum overlap for a stable cut rule. The optimal vertical overlap is the smallest penetration depth that produces a complete, continuous fracture across the full length and width of the coil without leaving uncut strands or slivers.

As a baseline reference across standard light-to-medium gauge carbon steels, vertical overlap typically falls within a window equal to 5% to 15% of the strip thickness. However, this baseline must be dynamically adjusted depending on material ductiled tensile strength, strip gauge, and arbor rigidity.

The Consequences of Incorrect Overlap

Deviating from the optimal overlap window compromises edge geometry and accelerates mechanical wear on slitting arbors and tooling.

1. Under-Overlap (Insufficient Penetration)

When the upper knife does not penetrate deeply enough below the lower knife tangent plane:

• Incomplete Separation: The metal strip fails to fracture completely, leading to uncut sections or persistent web strands that jam downstream coiling equipment.
• Ragged and Torn Edges: Instead of a clean fracture, the metal undergoes excessive tensile stretching, resulting in torn, jagged edge profiles with heavy hanging burrs.
• Slivers and Debris: Incomplete shearing creates fine metallic slivers and wire-like burrs that contaminate strip surfaces and damage tension stand rolls.

For a complete root-cause diagnostic framework — covering clearance, knife condition, alignment, and tension as the full variable set — see the Redução de Rebarbas no Corte Longitudinal: Matriz de Causa Raiz, Janelas de Setup e Protocolo de Inspeção.

2. Over-Overlap (Excessive Penetration)

When the upper knife penetrates too deeply into the lower knife plane:

• Increased Friction and Heat: Excessive blade engagement creates severe friction along the knife side faces, causing thermal expansion, localized overheating, and loss of edge hardness.
• Edge Galling and Chipping: Heavy vertical loading forces metal against the blade side walls, causing material pickup (galling) on aluminum or stainless coils and micro-chipping along the knife cutting edge.
• Metal Dust Formation: Deep penetration grinds the sheared edge, creating fine iron powder or metal dust that accumulates in arbor bearings and optical line sensors.
• Accelerated Tool Wear: Excessive overlap forces the knives to perform unnecessary sliding work, shortening regrind intervals by up to 50%.

Coordinating Overlap with Horizontal Clearance

Vertical overlap cannot be adjusted in isolation. Shear cutting relies on a balanced two-stage fracture mechanism:

1. Plastic Deformation (Burnish/Shear Band): The knives penetrate the upper and lower surfaces of the strip, creating a smooth, shiny burnished band that typically accounts for the upper 20% to 35% of strip thickness.
2. Brittle Fracture (Break Band): As vertical penetration reaches the critical strain threshold, cracks initiate from opposing knife tips and meet in the middle, creating a matte fracture zone that covers the remaining 65% to 80% of strip thickness.

To maintain a clean edge profile (with a burnish-to-fracture ratio of roughly 1:2 or 1:3), vertical overlap and horizontal clearance must be balanced simultaneously. If horizontal clearance is widened for a harder material, vertical overlap must often be reduced slightly to prevent excessive bending moments across the shear zone.

That burnish-to-fracture split is not a universal constant—it shifts sharply with material behavior, and reading it correctly is one of the fastest ways to judge whether a cut is running properly. In Advanced High-Strength Steel (AHSS), high yield strength drives crack initiation almost the moment the blade engages, so the burnish zone can collapse to under 10% of strip thickness and the edge is dominated by a brittle break band. Mild carbon steel sits in the middle, producing the familiar burnish band of roughly 20% to 35%. Soft aluminum alloys, with their high elongation and ductility, resist fracture far longer, yielding a noticeably thicker burnish band and a smaller fracture zone. This matters for edge specifications: a thick, shiny burnish zone points to excessive plastic deformation (deep penetration, or too-tight clearance), while a nearly absent burnish band suggests the material is fracturing almost instantly—expected in AHSS, but a red flag if it appears on a ductile grade.

This balance is echoed in published tooling practice. The setup method described in U.S. Patent US4680851A, for example, states that knife clearance should approximate 10% of strip gauge for hard temper e 5% for soft temper—a direct illustration of how clearance must track material condition rather than follow a single fixed figure. Industry process references such as IspatGuru similarly note that knife horizontal clearance and vertical overlap are both critical to slit quality, warning that a large horizontal clearance can cause excessive edge roll-over and burr, while an excessively tight clearance risks premature knife wear or damage.

Furthermore, knife calibration is not a one-time setup. Both vertical overlap and horizontal clearance must be re-calculated and verified whenever:

• Knives are reground or replaced (accounting for blade outer diameter reduction).
• Stripper rings or arbor spacers are changed.
• The processing line shifts to a new coil thickness, temper, or material grade.

Guia de Sobreposição Específico por Material

A common pitfall in coil slitting operations is applying a fixed percentage rule across all metal grades. Material behavior during shear cutting varies dramatically based on yield strength, tensile strength, strain hardening exponent, ductility, and surface coating.

Advanced materials demand tighter operational windows:

• Advanced High-Strength Steels (AHSS): High yield strength means crack initiation occurs almost immediately upon blade entry. Excessive overlap causes severe shock loading and knife edge breakdown.
• Coating-Sensitive Aluminum: Soft, ductile aluminum alloys possess high elongation properties and stickiness, making them prone to edge rollover and side-face galling if vertical entry is even slightly excessive.

Recommended Overlap Ranges by Material

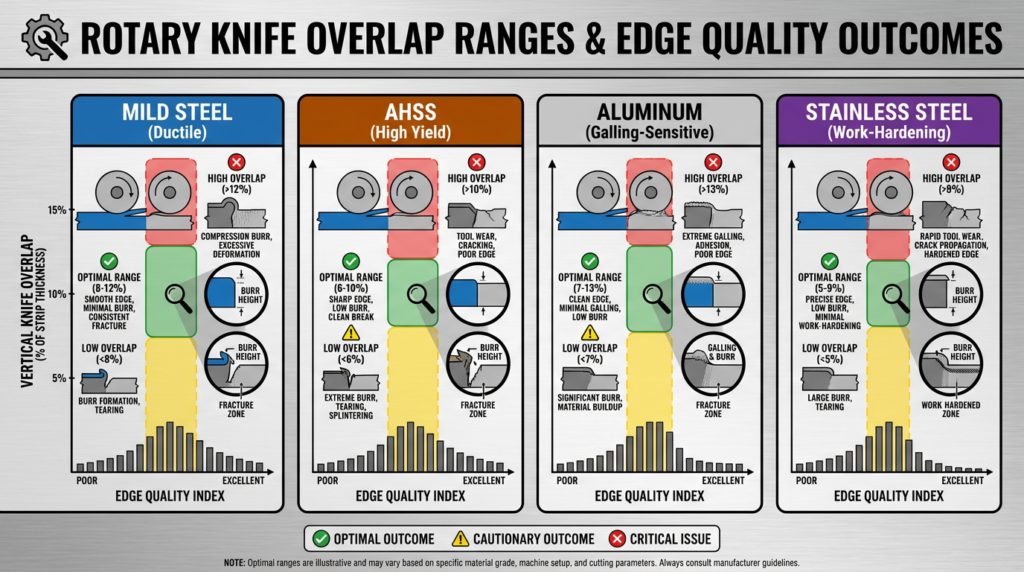

The table below outlines baseline vertical overlap parameters, horizontal clearances, and characteristic edge outcomes across primary industrial coil alloys:

A general rule of thumb applies to strip thickness: thinner, ductile metals require a higher percentage of vertical overlap to initiate crack propagation, whereas thicker, high-strength metals require significantly less vertical overlap because the material fractures under lighter entry depths.

These process margins are framed by internationally recognized product standards. Slit width tolerances and edge classifications are governed by specifications such as ASTM A568/A568M e ASTM A109/A109M (which define edge conditions including No. 3 slit edge), while ASTM A480/A480M covers edge conditions for stainless steel and ISO 9445-2 sets dimensional and form tolerances for slit cold-rolled stainless strip. Note that the term “burr” is formally defined in ASTM A623 as metal displaced beyond the surface plane by slitting or shearing. Clearance and overlap values themselves are not fixed by a single mandatory standard; they remain process-setting recommendations that must be tuned within the dimensional windows those standards define.

Precision Tooling for Stable Overlap

Holding vertical overlap tolerances across a multi-knife arbor—sometimes carrying 20 to 50 individual slitting heads—requires sub-micron mechanical accuracy. If individual rotary knives vary in outer diameter, or if spacers suffer from axial thickness variation, vertical overlap will wobble across the arbor width. A variation of just 0.01 mm in knife radius translates directly to a 0.01 mm error in vertical penetration.

To eliminate overlap drift across the arbor:

• Rotary slitting knives must be manufactured from high-purity alloy steels refined through Electroslag Remelting (ESR), such as AISI D2 (1.2379), H13 (1.2344), High-Speed Steel (M2/1.3343), or Powder Metallurgy (PM) steels. ESR processing eliminates primary eutectic carbide segregation (M₇C₃ and VC monocarbides), ensuring uniform toughness and edge wear resistance.
• Outer diameters and bore concentricity must be precision-ground to within ±0.001 mm tolerances.
• Precision arbor spacers must maintain strict parallelism to prevent cumulative axial runout and angular deflection under shear load.

For spacer tolerance specifications, face flatness targets, and rubber ring compression standards that directly affect axial runout and overlap stability, see the guia de espaçadores de corte longitudinal de precisão e anéis de borracha. For the stack-up arithmetic showing how knife OD variation and spacer thickness errors accumulate into width deviation across a full arbor — including TIR target bands and worst-case vs RSS models — see Rotary Slitter Axial Runout: Stack-Up Math, TIR Targets & Width Control.

High-precision tooling solutions manufactured by Maxtor Metal, including custom-ground rotary slitting knives and hardened spacers, ensure uniform vertical overlap settings across every cut pocket. Their material selection expertise and strict thermal treatment controls help extend blade working life, maintain consistent edge burr standards, and minimize planned line stops.

Maxtor Metal’s approach to overlap stability rests on four levers that buyers can specify and verify during procurement:

1. Material grade matched to the cut, not the catalog. Blade steel is selected against the target coil—carbon steel, AHSS, aluminum, or stainless—so that hardness and wear resistance suit the actual shear load rather than a generic default.
2. Controlled heat treatment for uniform hardness. Consistent austenitizing, quenching, and tempering cycles reduce soft spots and patchy hardness that would otherwise make one knife wear faster than its neighbors on the same arbor.
3. Precision grinding of OD, bore, and faces. Holding outer diameter, bore concentricity, and side-face flatness to tight tolerances keeps every knife in a multi-head arbor contributing the same effective penetration.
4. Dimensional verification as a deliverable. Because overlap drift is ultimately caused by dimensional variation, inspection of critical dimensions before shipment lets the customer confirm that a new knife set will interface with their existing spacers and arbors without introducing overlap error.

This is the practical link between tooling quality and edge quality: because a variation of just 0.01 mm in knife radius becomes a 0.01 mm error in vertical penetration, controlling knife and spacer dimensions upstream is what allows the downstream overlap setting to remain stable.

Ajuste Dinâmico de Sobreposição em Linhas de Corte Longitudinal Modernas

Traditional slitting lines relied on manual handwheel adjustments and mechanical feeler gauges to set upper arbor heights. On modern, high-speed automated slitting lines, manual adjustments have been replaced by motorized upper arbor actuators integrated with digital recipe controls.

Automated upper arbor positioning systems dynamically reposition the upper slitting arbor relative to the fixed lower arbor based on pre-programmed material recipes. Key features of dynamic overlap control include:

• Closed-Loop Linear Encoder Feedback: Optical or magnetic encoders continuously monitor the vertical position of the arbor bearing blocks with positioning accuracy down to 0.002 mm.
• HMI Recipe Control: Equipment operators select the material grade, thickness, coil width, and knife outer diameter on the Human-Machine Interface (HMI). The control system automatically calculates and sets the required vertical penetration.
• Deflection Compensation: Advanced controls automatically increase vertical penetration slightly toward the center of wide arbors to offset mechanical arbor flexing under heavy shear loads.

Dica profissional: Always log reground knife outer diameters into your HMI control system. Failing to update the blade radius parameter after regrinding will cause automated positioning systems to under-penetrate the coil, resulting in severe edge burrs.

A practical note on tooling compatibility with automated systems: closed-loop positioning accuracy is only as good as the dimensional consistency of the knives and spacers it is positioning. If knife OD varies across a set, or if spacer face thickness is not held to a tight tolerance, the encoder will report the commanded position accurately — but the actual penetration at each cut pocket will still drift. Maxtor Metal‘s dimensional inspection protocol includes OD verification of every knife in a set and face parallelism checks on spacers before shipment, so that the physical stack matches the recipe input your HMI is working from.

Setup Best Practices for Consistent Edge Quality

To achieve consistent, burr-free edge quality run after run, slitting line crews should adhere to a structured setup protocol:

1. Establish the Baseline Minimal Overlap: Begin setup with the conservative minimum overlap recommended for the material gauge. Increase penetration only until a complete, clean shear is achieved across all strip mults. In practice, “complete, continuous fracture” is a judgment you make from several signals together, not from the dial alone:
   • No uncut strands. The most immediate check: run a short length and confirm the strip has fully separated across every mult, with no web strands or connected slivers bridging the cut. Even one surviving strand means penetration is still short of the minimum.
   • Break-band meets mid-thickness. Examine the cut face: a correct cut shows opposing crack fronts from the top and bottom meeting near the strip’s mid-plane. Cracks that stall and leave a rough ridge low on the edge point to under-penetration.
   • Confirm with a test strip. For a fast physical check, feed a thin test strip or use a feeler gauge to verify the knives are genuinely overlapping, since the commanded reading and real blade engagement diverge as knife OD shrinks.
   • Watch the burnish-to-break ratio. A burnish band well above roughly 35% of thickness signals you’ve already pushed past the minimum; a band that stays thick after increasing penetration means the extra overlap isn’t translating into fracture.
2. Verify Arbor Alignment and Parallelism: Use dial indicators to verify that the upper and lower arbors remain perfectly parallel under clamping load. Angular misalignment causes excessive overlap on one side of the line and under-overlap on the other. For a structured TIR verification procedure — covering dial indicator setup, ISO fit class selection, and blue-check acceptance protocol — see the OEM Slitter Knife Blueprint: Spindle Fit Audit, ISO Tolerances & TIR Gates.
3. Recheck Settings After Every Changeover: Never assume a previous setup applies to a new master coil. Even minor variations in coil thickness (e.g., from 1.0 mm to 1.15 mm) or yield strength require re-evaluating overlap and clearance settings.
4. Inspect Stripper Rings and Arbor Bearings: Ensure shore hardness and outer diameter of rubber stripper rings are matched to the knife setup. Worn arbor support bearings permit arbor movement during acceleration, causing vertical overlap to drift during high-speed running.
5. Track Edge Quality Trends: Regularly measure burr height using optical comparators or micrometer burr gauges. A sudden increase in burr height indicates either knife edge dulling or vertical overlap shift caused by thermal expansion.

Field Notes: A First-Hand Troubleshooting Sequence

Drawing on 10 years of coil slitting troubleshooting across carbon steel, AHSS, stainless, and aluminum processing lines, Jerry Chu, Technical Support Specialist at Maxtor Metal, offers the following field-tested diagnostic sequence. When an operator reports a sudden change in edge quality, the fastest path to root cause is to work through these variables in order — rather than reaching immediately for the overlap handwheel:

1. Separate the symptom from the cause. A burr that appears only on one side of the strip usually points to arbor misalignment or unequal spacer stacking, not to a global overlap error. A burr that appears on every mult points toward a shift in the shared setup parameter.
2. Check knife condition before geometry. A dull or micro-chipped edge mimics an under-overlap condition by tearing rather than shearing the metal. Confirm the cutting edge is sound before adjusting penetration, otherwise you risk compensating for a worn blade by over-driving the overlap.
3. Verify the actual overlap, not the dial reading. Encoders and handwheels report commanded position, not true blade engagement. After every regrind, confirm the real penetration with a feeler gauge or a thin test strip, because the reading and reality diverge as knife OD shrinks.
4. Look at the dust and slivers, not just the edge. Metal dust and fine iron powder accumulating around arbor bearings or on line sensors is a reliable sign of over-penetration — the knives are grinding the sheared edge rather than fracturing it cleanly. Metallic slivers or wire-like burrs trailing from the strip edge point in the opposite direction: insufficient penetration has left the fracture incomplete. The by-product tells you which direction the setting has drifted before the edge measurement does.
5. Re-baseline after any material change. Because each alloy, temper, and gauge combination shifts the crack-initiation threshold, the overlap that produced a clean edge on one coil may be wrong for the next. Treat the last good setup as a starting hypothesis, not a guarantee.

The Business Impact of Optimized Overlap

Controlling rotary knife overlap is not merely a technical exercise—it directly drives key performance indicators (KPIs) and operational profitability for steel service centers and metal fabricators.

The figures below reflect commonly observed shop-floor outcomes, separated by primary driver: overlap calibration alone (applicable to any line with manual or automated setup), and automated positioning systems (applicable only to lines with motorized arbor control and HMI recipe management). Improvements from both drivers compound when implemented together.

From overlap calibration discipline (manual or automated lines)

• Up to 25% Reduction in Scrap: Eliminating edge slivers, heavy burrs, and off-spec slit widths prevents entire coil mults from being rejected at customer stamping plants.
• Extended Tooling Life: Avoiding over-penetration reduces friction and thermal stress, allowing high-quality slitting blades to achieve up to 40% more tonnage between regrinds.

From automated arbor positioning systems (motorized lines with recipe control)

• Shorter Changeover Times: Automated, recipe-driven overlap positioning reduces setup times from 30 minutes to under 5 minutes per coil changeover.
• Higher First-Pass Yield: Precise overlap eliminates trial-and-error test cuts, allowing lines to ramp directly to full operating speeds (up to 300 m/min) with total edge confidence.

If you’re evaluating whether a knife material upgrade can extend regrind intervals and improve overlap stability, the guia de ROI de facas circulares slitter provides a cost-per-ton model for PM-HSS vs tool steel across AHSS, stainless, and aluminum.

In a comprehensive total cost of ownership (TCO) model, reduced scrap rates, lower maintenance downtime, and extended tooling life work together to lower the total tooling cost per processed ton of metal coil.

Perguntas Frequentes (FAQs)

P: Qual é a diferença entre a sobreposição de facas e a folga horizontal no corte longitudinal?

R: A sobreposição vertical de facas (ou penetração) é a profundidade vertical que a faca circular superior se estende além da borda superior da faca inferior. A folga horizontal é o espaço lateral entre as faces de corte das facas superior e inferior. A sobreposição controla a profundidade da entrada inicial da lâmina, enquanto a folga horizontal determina o ângulo da linha de fratura através do metal.

P: Como calculo a sobreposição correta das facas circulares para o corte longitudinal de aço?

For standard carbon steels, a starting baseline for vertical overlap is 5% to 15% of the strip thickness. For thin gauges (under 1.0 mm), use 10% to 15% of strip thickness; for thicker gauges (over 3.0 mm), reduce overlap to 3% to 8%. Consistent with the minimum overlap for a stable cut rule defined in the Science section above, always use the smallest vertical overlap that still delivers a complete, continuous fracture across the full strip width — no uncut strands or slivers left behind.

P: O que causa rebarbas excessivas na borda de uma bobina de metal cortada?

Heavy burrs are typically caused by either insufficient vertical overlap (which tears the metal rather than shearing it cleanly), excessive horizontal clearance, or dull knife cutting edges. If vertical penetration is too shallow, crack propagation fails to meet in the middle, leaving a raised metal ridge along the bottom edge.

P: Por que o aço de alta resistência (AHSS) requer menos sobreposição do que o aço macio?

R: O AHSS possui alto limite de escoamento e resistência à tração, o que significa que a tensão interna atinge o limite de fratura quase imediatamente após a entrada da lâmina. Aplicar uma sobreposição excessiva ao AHSS causa cargas de choque extremas, lascamento nas bordas das facas e severa formação de rebarbas. O AHSS requer uma sobreposição vertical reduzida combinada com uma folga horizontal mais ampla.

P: Como a reafiada da faca afeta as configurações de sobreposição vertical?

R: A reafiada reduz o diâmetro externo (OD) de uma faca circular de corte longitudinal. Se a altura do eixo superior não for ajustada para baixo para compensar o raio menor da faca, a penetração vertical real na tira será menor do que o esperado. Os operadores do equipamento devem inserir o diâmetro exato da faca pós-reafiada em seu software de configuração de linha ou ajustar a posição do eixo manualmente para restaurar a sobreposição adequada.

P: A sobreposição incorreta pode fazer com que as facas de corte longitudinal lasquem ou quebrem?

R: Sim. Definir uma sobreposição vertical excessiva força as faces laterais das facas superior e inferior opostas a se esfregarem ou a pressionarem fortemente contra a tira de metal. Isso cria altas cargas axiais e estresse térmico, levando ao engripamento, microlascamento da borda ou fratura catastrófica da lâmina — especialmente ao processar ligas duras ou aço inoxidável.

P: A velocidade da linha de corte longitudinal altera a sobreposição necessária das facas?

R: Sim, a velocidade da linha afeta indiretamente o comportamento da sobreposição. Conforme a velocidade aumenta, o calor gerado pelo atrito na zona de cisalhamento também aumenta. Essa expansão térmica altera a relação efetiva entre os eixos superior e inferior, de modo que uma configuração que gera uma borda limpa em baixa velocidade pode derivar para uma penetração insuficiente ou excessiva em alta velocidade. É por isso que a sobreposição deve ser verificada na velocidade real de produção (ou próxima a ela), e não apenas durante a passagem lenta ou colocação da tira. Linhas equipadas com compensação de deflexão e térmica mantêm a sobreposição de forma mais consistente durante a aceleração, mas linhas manuais devem rechecar a qualidade da borda após atingir a velocidade de operação estável.

Conclusão

A sobreposição das facas circulares é uma variável fundamental nas operações de corte longitudinal de bobinas de precisão. Longe de ser uma configuração estática, a sobreposição vertical é um parâmetro dinâmico que influencia diretamente a altura da rebarba na borda cortada, a geometria da faixa de cisalhamento, a taxa de desgaste da lâmina e o rendimento geral da produção.

Ao mudar de configurações manuais baseadas na experiência para uma calibração de sobreposição orientada por dados e adaptada ao material —e ao combinar o posicionamento automatizado do eixo com ferramentas de corte com retificação de precisão—, os processadores de bobinas podem eliminar de forma consistente as rebarbas nas bordas e reduzir os custos operacionais.

Upgrading your slitting line performance begins with tooling dimensioned to match your overlap targets — not generic catalog stock. Maxtor Metal‘s technical team can review your current knife geometry, regrind history, and arbor configuration, then recommend a knife steel grade, coating, and dimensional specification that holds your overlap window across a full production run. Contact us to discuss custom-ground rotary slitting knives, precision arbor spacers, and a dimensional inspection package tailored to your line configuration and material mix.

Referências e Normas Técnicas

• ASTM A568/A568M – Standard Specification for Steel, Sheet, Carbon, Structural, and High-Strength, Low-Alloy, Hot-Rolled and Cold-Rolled, General Requirements for (slit width tolerances and edge conditions).
• ASTM A109/A109M – Standard Specification for Steel, Strip, Carbon (0.25 Maximum Percent), Cold-Rolled (edge numbering, including No. 3 slit edge).
• ASTM A480/A480M – Standard Specification for General Requirements for Flat-Rolled Stainless and Heat-Resisting Steel Plate, Sheet, and Strip (stainless edge conditions).
• ASTM A623 – Standard Specification for Tin Mill Products, General Requirements (formal definition of burr).
• ISO 9445-2 – Continuously cold-rolled stainless steel – Tolerances on dimensions and form – Part 2: Wide strip and plate/sheet, including slit cold-rolled wide strip below 600 mm width.
• US4680851A – “Method of setting up rotary slitter tooling” (U.S. patent describing clearance selection as a function of strip gauge and temper).
• IspatGuru – “Flattening, Levelling, Slitting, and Shearing of Coiled Flat Steel Product” (industry process reference covering knife horizontal clearance and vertical overlap).

The quantitative process ranges presented throughout this guide are intended as engineering starting points. Final overlap and clearance values should always be validated against the applicable product standard and confirmed on your specific slitting line configuration.
