1.  Industrial Shredder Blades: Engineering Specification & Selection

This white paper draws on Maxtor Metal’s manufacturing experience across industrial shredding, recycling, and waste processing sectors.

This technical document establishes the engineering baselines, metallurgical criteria, and manufacturing protocols for high-performance shredder blades deployed in heavy-duty industrial recycling, solid waste management, and biomass processing systems. This white paper serves as a core reference for procurement managers, mechanical engineers, and original equipment manufacturing (OEM) specialists requiring predictable tool life, high edge retention, and zero-defect catastrophic failure control.

Key takeaway:

• Maxtor Metal manufactures single-shaft and multi-shaft industrial shredder blades in AISI D2, DC53, H13, M6V, and martensitic stainless steel grades. Blades are vacuum hardened, cryogenically stabilized at −196℃, and precision-ground to tolerances as tight as ±0.01 mm for OEM compatibility with Weima, SSI, UNTHA, Vecoplan, and Andritz systems.

1.1 Technical Specifications Matrix

Parameter	Single-Shaft Shredder Blades	Multi-Shaft Shredder Blades (Double/Four-Shaft)

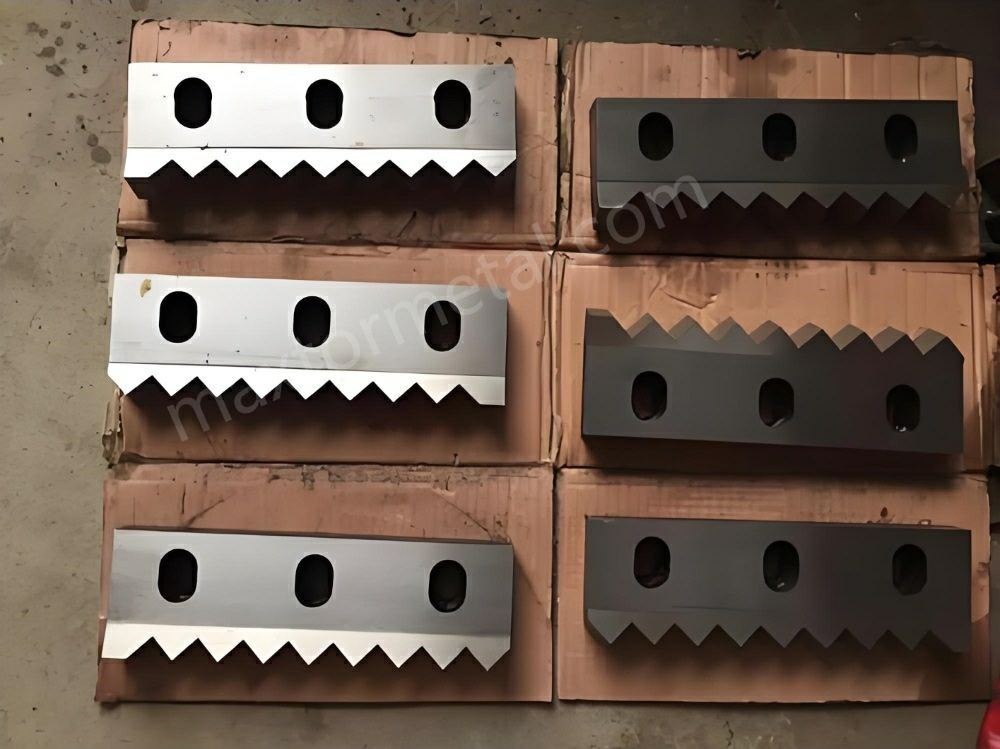

Primary Blade Profiles	Multi-angle square concave rotary blocks, stator bed blades.	Multi-claw interlocking disc blades (3-claw, 5-claw, 8-claw configurations).
Cutting Mechanism	High-speed, high-frequency precision shearing via hydraulic ram feed against a stator.	Low-speed, ultra-high torque counter-rotating volumetric gripping, tearing, and high-pressure crushing.
Core Materials	AISI D2 (1.2379), DC53, AISI 4140 / AISI 1045 base with brazed Tungsten Carbide inserts.	AISI H13 (1.2344), AISI A8 Mod, AISI D2, AISI 4140, M6V Vanadium steel, DC53, AISI 420, AISI 440C.
Hardness Spectrum	Tool steel: 58–60 HRC (vacuum hardened). Carbide inserts: 89–92 HRA on a toughened matrix.	48–54 HRC (toughness-driven), 56–60 HRC (wear-driven), 48–52 HRC (anti-corrosive), 58–60 HRC (high-carbon martensitic).
Key Dimensions	34×34×20 mm, 40×40×20 mm, 60×60×30 mm with central countersunk bolt holes.	Outer Diameter (OD): 150–600 mm. Thickness: 15–60 mm. Bore: Hexagonal, octagonal, or involute spline.
Dimensional Tolerances	General: ISO 2768-mK. Base seating & shaft mating faces: Strict ±0.02mm.	Thickness: ISO 2768-mK. High-precision applications: End-face flatness down to ±0.01mm.
Surface Finish	Concave cutting face: Ra< 0.8μm. Mounting seat: Ra< 1.6μm.	Milled/ground end faces: Ra< 0.8μm. Core working profile: Ra< 3.2μm.
Assembled Clearance	Micro-clearance fly-knife setup: 0.1–0.5 mm adjusting for specific material thickness.	Axial open-interlocking clearance: 0.15–0.40 mm side gap (spacer is 0.3–0.8 mm wider than blade).
Compatible OEMs	Weima, Vecoplan, Lindner, Herbold, and equivalent global single-shaft systems.	Weima (Four-Shaft), SSI, UNTHA, Andritz heavy-duty environmental processing lines.

2. Shredder Blades Engineering Overview

Industrial size reduction depends on two distinct mechanical shearing processes: high-frequency precision clipping and low-speed high-torque tearing. Understanding the mechanics of these operations is vital for predicting tool life and system efficiency.

2.2 Multi-Shaft Tearing Dynamics

Multi-shaft industrial shredders (dual or quad-shaft configurations) operate via counter-rotating shafts turning at lower speeds but with high torque. The process relies on interlocking hook-like claw profiles that pull large, dense materials down into the center of the cutting chamber.

The shredding action uses a combination of hook tensile tearing, high-pressure lateral crushing, and interlocking side-face shearing. Rather than clean shearing, the mechanics focus on volumetric displacement and severe structural tearing. The open axial clearance system (0.15mm – 0.4mm side-gap per blade) permits independent thermal expansion and handles structural deformation under high loads.

2.1 Single-Shaft Cutting Dynamics

Single-shaft shredding systems run at higher rotational velocities, using a hydraulic ram to push bulk materials against a rotor turning at moderate-to-high speeds. The cutting mechanism is a precise, micro-gap scissor-like action occurring between the rotating square insert (rotary blade) and the stationary counter-knife (stator blade).

The primary stress applied to the material is pure shear stress, defined by:

$$\tau = \frac{F_{cutting}}{A_{shear}}$$

The dominant stress mode is shear, with the cutting force per unit shear area defined by τ = F/A. In practice, the narrow clearance (0.1–0.5 mm) also induces compressive stress normal to the shear plane, accelerating plastic deformation and clean fracture of the workpiece. The square concave profile of the rotary insert creates an acute positive rake angle that lowers the peak power needed from the main drive shaft. Final output particle size is strictly governed by a classification screen positioned beneath the rotor assembly.

2.3 Industrial Wear Characterization

Shredder blades operate in demanding tribological environments, with tool degradation following four distinct industrial wear patterns:

• Abrasive Wear (Micro-Ploughing): Small, hard particles like sand, scale, glass fiber, or mineral dust slide across the tool steel matrix, cutting microscopic grooves and rounding the sharp cutting edges. This blunts the edge, increases power draw, and causes material pull-out or stretching instead of clean cutting.
• Impact Fatigue (Chipping & Micro-Spalling): When heavy metallic impurities or uncrushable tramp components enter the machine, they exert high localized contact forces on the cutting edge. If the material’s fracture toughness (K_1c) is insufficient, this contact stress causes immediate micro-chipping or catastrophic section failure.
• Adhesive Wear & Thermal Softening: Processing dense polymers or highly elastic elastomers generates high friction at the cutting interface. This localized heat can cause localized temper-softening, which accelerates material loss and leads to polymer adhesion on the blade faces.
• Intergranular Chemical Corrosion: Processing municipal solid waste, food waste, or animal tissue exposes the steel to high moisture, chlorides, organic acids, and salts (pH < 4). This reactive environment induces rapid pitting and intergranular oxidation, stripping the steel matrix of chromium and accelerating mechanical wear.



3. Industrial Shredder Blades Applications

3.1 Advanced Plastics & Polymer Reclamation

• Target Processing Machinery: High-throughput single-shaft shredders with variable-torque hydraulic rams.
• Input Material Composition: Heavy-wall polyolefin pipes, injection-molded purges, automotive bumpers, and post-agricultural film contaminated with sand or soil.
• Operational Engineering Criteria: High abrasive friction from glass fibers and mineral fillers. Requires excellent edge retention to prevent plastic film from stretching and wrapping around the rotor.
• Recommended Specification: AISI D2 or DC53 rotary inserts through-hardened to 58–60 HRC. For heavy sand contamination, use an AISI 4140 base with brazed Tungsten Carbide (89–92 HRA) inserts.

3.2 High-Capacity Electrical Cable & E-Waste Processing

• Target Processing Machinery: High-precision, micro-clearance single-shaft granulators and shredders.
• Input Material Composition: Armor-clad copper/aluminum power cables, communication lines, and electronic waste assemblies.
• Operational Engineering Criteria: Requires precise, low-clearance cutting (0.1mm – 0.2mm) to cleanly separate copper strands from elastomer jackets without generating excess heat or insulation smear.
• Recommended Specification: DC53 tool steel to prevent micro-chipping caused by hidden steel fasteners. Apply a physical vapor deposition (PVD) Titanium Nitride (TiN) coating (>2000HV) to the stator face to extend service life.

3.3 Heavy-Duty Industrial Solid Waste & Hazardous Waste Management

• Target Processing Machinery: High-torque, low-speed dual-shaft or quad-shaft heavy industrial shredders.
• Input Material Composition: Steel drums, structural automotive scrap, reinforced storage containers, and mixed hazardous waste containing structural steel plates.
• Operational Engineering Criteria: Extreme shock loading and high torsion forces on the cutting claws when encountering thick uncrushable components.
• Recommended Specification: AISI H13 (1.2344) or modified AISI A8 tool steel through-hardened to 48–54 HRC. This selection prioritizes high impact toughness and structural resistance over pure abrasive wear resistance to prevent blade shattering.

3.4 End-of-Life Vehicle (ELV) Tire & Rubber Processing

• Target Processing Machinery: Double-shaft heavy environmental shredders equipped with progressive hook designs.
• Input Material Composition: Whole commercial vehicle tires containing thick, high-tensile steel bead wire bundles.
• Operational Engineering Criteria: Severe combination of high abrasive friction from vulcanized rubber compounds and high tensile/shear loads from cutting high-carbon spring steel wire.
• Recommended Specification: Special M6V vanadium-rich wear-resistant tool steel or premium DC53 hardened to 56–58 HRC to prevent claw breakage under wire tension.

3.5 Large-Scale Biomass & Agricultural Fuel Processing

• Target Processing Machinery: High-torque quad-shaft shredder systems utilizing multi-claw configurations.
• Input Material Composition: High-density baled agricultural straw, crop stalks, forestry residues, and wood pallets containing structural fasteners.
• Operational Engineering Criteria: Fibrous biomass materials easily wrap around shredding shafts, creating high radial forces and friction. Hidden stones or metal wires can cause sudden impact loads.
• Recommended Specification: AISI 4140 (1.7225) structural tool steel through-hardened to 48–54 HRC for standard operations requiring cost-effective toughness. For continuous RDF (Refuse-Derived Fuel) processing lines, upgrade to premium M6V vanadium steel.

3.6 Organic Municipal Waste, Food Waste & Animal Rendering

• Target Processing Machinery: Double-shaft organic waste shredders with liquid-tight sealing arrays.
• Input Material Composition: Post-consumer food waste with mixed cutlery/ceramics, whole animal carcasses, dense bone structures, and hooves from rendering operations.
• Operational Engineering Criteria: Severe exposure to high-moisture organic acids, high salt concentrations, and continuous corrosive wear, combined with shock impacts from dense bone or mixed tableware.
• Recommended Specification: For highly acidic food waste containing mixed ceramics/cutlery, use AISI 420 martensitic stainless steel hardened to 48–52 HRC. For pure carcass processing and animal rendering without heavy tramp metal, use high-carbon AISI 440C martensitic steel hardened to 58–60 HRC for high corrosion resistance and bone-shredding edge life.

4. Common Failure Problems & Engineering Solutions

4.1 Single-Shaft Tool Chipping from Tramp Metal

• Root Cause Analysis: When uncrushable steel components (e.g., hardened bolts, structural brackets) enter a single-shaft shredder, they get trapped between the high-hardness rotary knife (58–60 HRC) and the stator bed. This sudden obstruction generates localized stresses that exceed the fracture toughness (K_1c) of AISI D2 steel, causing severe edge chipping or body fracturing.
• Engineering Redesign & Trade-offs: Replace AISI D2 with DC53 steel. DC53 features uniform, fine carbide structures that double the Charpy V-notch impact energy compared to traditional D2. Engineering Trade-off: Material costs increase by approximately 25%, but tool lifetime and resistance to catastrophic failure improve substantially.

4.2 Multi-Shaft Claw Fracture Under High Biomass Stress

• Root Cause Analysis: Processing dense, fibrous biomass or agricultural straw bundles can cause long fibers to wrap tightly around the root of the cutter claws. This wrapping action wedges material between adjacent blades, creating high bending moments and tensile loads that can snap the claws off at the root.
• Engineering Redesign & Trade-offs: Change the blade material from high-hardness D2 steel to high-toughness AISI H13 (1.2344) or a modified AISI A8 steel, heat-treated to 48–54 HRC. This shifts the steel matrix from a wear-focused carbide structure to a shock-resistant martensitic structure. Engineering Trade-off: Lowering the hardness reduces abrasive wear resistance, requiring more frequent edge sharpening to maintain throughput.

4.3 Inner Drive Bore Cracking via Wire EDM Residual Stress

• Root Cause Analysis: Precise internal driven profiles (such as hex or octagonal shapes) are commonly finished using Wire Electrical Discharge Machining (EDM) after heat treatment. The high temperatures of the EDM process melt and re-solidify the steel surface, creating a microscale brittle “white layer” filled with residual tensile stresses. Under high torque, these internal corners act as stress concentrators, initiating cracks that propagate outward and split the blade.
• Engineering Redesign & Trade-offs: Implement an immediate post-EDM low-temperature stress-relief temper at 180℃ – 200℃ for 4 hours to relieve the residual tensile stresses. Alternatively, upgrade the material to DC53, which can absorb these stresses without requiring special multi-step tempering steps.

4.4 Axial Expansion and Seizure of Multi-Shaft Assemblies

• Root Cause Analysis: Processing dense materials over long, continuous runs generates high friction, heating the shredder blades up to 80℃ – 120℃. If the thermal expansion of the blades exceeds the original engineered axial clearances, the side faces of the interlocking cutters will grind against each other, leading to frictional lockup, shaft deflection, and gear drive overload.
• Engineering Redesign & Trade-offs: Increase the thickness of the spacer collars relative to the blades, setting a single-side clearance gap of 0.15 mm to 0.40 mm (making the spacer 0.3 mm to 0.8 mm wider than the corresponding blade). Additionally, apply a -196℃ cryogenic treatment during heat treatment to eliminate retained austenite, ensuring high dimensional stability over a wide temperature range. Engineering Trade-off: Larger clearance gaps can allow thin sheet materials to pass through without being fully shredded.

4.5 Rapid Chemical Corrosion and Edge Softening in Biomass Processing

• Root Cause Analysis: Processing organic food waste or animal carcasses releases high-moisture organic acids and chlorides (pH < 4). Standard cold-work tool steels like AISI D2 or DC53 lack sufficient free chromium, causing them to form iron oxides and pit rapidly under these conditions. This corrosion compromises the steel matrix, accelerating mechanical wear and causing the cutting edge to dull quickly.
• Engineering Redesign & Trade-offs: Upgrade the cutter material to AISI 420 martensitic stainless steel (hardened to 48–52 HRC) or AISI 440C high-carbon stainless steel (hardened to 58–60 HRC), depending on the amount of mixed tramp metal present. Engineering Trade-off: Stainless tool steels are more difficult to precision-grind, increasing manufacturing costs and lead times.

4.6 Single-Shaft Rotary Blade Seating Loosening

• Root Cause Analysis: High-frequency cutting forces apply cyclic, pulsing loads to single-shaft rotary inserts. If the dimensional tolerance between the insert’s bottom seating face and the rotor’s machined pocket exceeds 0.05 mm, the insert can shift micro-axially during operation. This movement puts high cyclic shear stresses on the central fastening bolt, leading to bolt fatigue and eventual failure.
• Engineering Redesign & Trade-offs: Tighten the dimensional tolerances on the blade’s bottom seating and locator faces to a strict ±0.02mm via precision grinding. Engineering Trade-off: Requires high-precision CNC grinding fixtures, which increases tool manufacturing costs.

4.7 Severe Abrasive Edge Rounding from Glass-Fiber Reinforced Polymers

• Root Cause Analysis: Glass fibers (GF) used in engineering plastics act as high-hardness abrasives during shredding. When these fibers slide across standard tool steel, they cause micro-ploughing that rapidly rounds the sharp cutting edge. Once rounded, the blade can no longer cut the plastic cleanly, increasing power consumption and generating friction that melts the polymer.
• Engineering Redesign & Trade-offs: Use composite blades featuring an AISI 1045 or 4140 structural steel body with brazed Tungsten Carbide (WC-Co) inserts at the cutting edges. The carbide inserts provide high hardness (89–92 HRA) to resist fiber abrasion, while the steel body maintains structural toughness. Engineering Trade-off: High-vibration environments or tramp metal impacts can cause the brittle carbide inserts to crack or debond from the steel base.

4.8 Premature Corner Chipping on Square Concave Inserts

• Root Cause Analysis: The four corner tips of single-shaft square concave inserts concentrate stress during operation. If the concave radius is ground too deep, the resulting edge geometry becomes too fragile, making the corners prone to micro-chipping under standard impact loads.
• Engineering Redesign & Trade-offs: Optimize the grinding geometry by reducing the concave depth and introducing a small, controlled 0.1 mm chamfer or hone to the cutting edge. This reinforces the corner geometry with minimal impact on overall cutting sharpness.

4.9 Frictional Galling on Multi-Shaft Interlocking Faces

• Root Cause Analysis: When shredding ductile materials like aluminum alloys or soft polymers, high lateral pressures can force the material into the side gaps between interlocking blades. This trapped material undergoes high friction and pressure, leading to localized cold-welding and material transfer (galling) onto the blade faces, which increases torque and friction.
• Engineering Redesign & Trade-offs: Precision-grind the blade side faces to a smooth surface finish of Ra< 0.8μm to reduce friction. For highly ductile applications, add shallow radial escape grooves across the blade faces to help eject trapped particles. Introduce radial scraper fins onto the side profiles of the blades to help eject fine particles from the gap.

4.10 Thermal Cracking (Heat Checking) from Continuous Friction

• Root Cause Analysis: Shredding highly elastic materials can generate high continuous friction, creating localized thermal gradients across the blade edge. The resulting cyclical thermal expansion and contraction can cause microscale thermal cracks (heat checking) perpendicular to the cutting edge, which can lead to larger structural failures.
• Engineering Redesign & Trade-offs: Select tool steels with high thermal conductivity and temper resistance, such as AISI H13. Ensure the shredding system uses an automated reverse cycle or external cooling to manage operating temperatures.

5. Material Engineering Guide

Selecting the proper steel alloy requires balancing three conflicting properties: wear resistance, impact toughness, and manufacturability (grindability).



5.1 Metallurgical Matrix Comparison

The following alloy comparison reflects Maxtor Metal’s qualified material library for shredder blade production.

International Alloy Standard	Primary Microstructural Carbides	Charpy V-Notch Impact Energy (Toughness)	Abrasive Wear Resistance	Machining & Grindability Index
AISI D2 / DIN 1.2379 / SKD11	Large, banded eutectic chromium carbides (Cr7C3).	Low (20 – 25 J/cm2).	High.	Difficult; high wheel wear.
DC53 (Premium Cold-Work)	Fine, evenly dispersed secondary alloy carbides.	Very High (28 – 45 J/cm2).	Excellent.	Fair; superior to D2.
AISI H13 / DIN 1.2344	Fine vanadium/molybdenum carbides.	Exceptional (50 – 80 J/cm2).	Moderate.	Good; high machinability.
AISI A8 Mod (Toughness Tool)	Balanced chromium/molybdenum matrix.	Excellent (80 – 100J/cm2).	Medium-High.	Fair.
M6V (High-Vanadium Tool)	Ultra-hard vanadium carbides (VC, 2800HV).	Moderate-High (35 – 40J/cm2).	Superior long-life.	Difficult; requires specialized wheels.
AISI 4140 / DIN 1.7225	Homogeneous tempered martensite (no primary carbides).	High structural ductility.	Low; requires base support.	Excellent; low manufacturing cost.
AISI 420 / DIN 1.4021	Dispersed chromium carbides in a stainless matrix.	High (60 – 80J/cm2).	Medium.	Good.
AISI 440C / DIN 1.4125	High-density primary chromium carbides.	Low-Moderate (15 – 22J/cm2).	High.	Difficult.
Tungsten Carbide (WC-Co)	Pure sintered Tungsten Carbide grains.	Brittle; low impact threshold.	Maximum Industrial.	Requires diamond grinding.

Impact energy values are measured at target working hardness after vacuum hardening and triple tempering. Values at annealed state are significantly higher and are not representative of service conditions.

5.2 Advanced Metallurgical Selection Guidelines

5.2.1 AISI D2 vs. DC53

Traditional D2 steel contains large, non-uniform chromium carbides that form during solidification. These carbides act as stress concentration sites where micro-cracks can easily initiate under heavy shock loads. In contrast, DC53 modifies the chemical composition to eliminate these large carbide bands, resulting in a fine, uniform carbide distribution. This microstructural improvement doubles the material’s impact toughness while maintaining equivalent or superior wear resistance at high hardness levels (58–60 HRC).

5.2.2 Specialized Environmental Alloys (M6V, 420, 440C)

• M6V: Contains high amounts of vanadium, which forms ultra-hard vanadium carbides throughout the matrix. This alloy is ideal for high-volume, continuous processing lines like RDF generation, where long tool life is critical to reducing downtime.
• AISI 420 & 440C: These martensitic stainless steels are selected for highly corrosive applications. AISI 420 provides the impact toughness needed to handle mixed municipal waste containing occasional hard impurities. AISI 440C features higher carbon and chromium content, providing excellent edge retention and wear resistance for pure organic processing, such as animal carcass rendering.

6. Shredder Blades Heat Treatment & Hardness Balance

Industrial shredder blades require precise heat treatment to achieve the proper balance of hardness and toughness. Incorrect tempering or incomplete phase transformation can lead to premature tool failure.

6.1 Vacuum Austenitizing & Controlled Quenching

Blades are heat-treated in a high-vacuum furnace (10^-4mbar) to prevent surface decarburization and oxidation. For premium tool steels like D2 and DC53, the material is preheated in stages to minimize thermal distortion before being brought to its final austenitizing temperature (1020℃ – 1040℃). Once uniform carbon dissolution is reached, the parts undergo a high-pressure gas nitrogen quench (6 – 10bar) to quickly transform the austenite matrix into hard martensite.

6.2 Deep Cryogenic Transformation Process

Following the quench, the steel matrix can retain up to 5% to 15% unstable retained austenite. To ensure long-term dimensional stability and prevent distortion or cracking under heavy structural loads, blades undergo a deep cryogenic treatment:

• The temperature is lowered at a controlled rate (1℃/min) down to -196℃ using liquid nitrogen.
• The blades are held at -196℃ for 12 to 24 hours.

This process forces the complete transformation of retained austenite into martensite and promotes the precipitation of fine η-carbides, improving both wear resistance and structural stability.

6.3 Precision Tempering Strategies

Tempering modifies the hard, brittle martensitic structure into a tougher, more resilient tempered martensite.

• High-Temperature Tempering (Secondary Hardening Window): For D2 and DC53 blades used in high-wear applications, triple tempering is performed at 520℃ – 540℃. This triggers secondary carbide precipitation, maximizing wear resistance while maintaining a stable hardness of 58–60 HRC.
• Low-Temperature Tempering (Toughness Window):
  • For shredder blades utilizing AISI D2, tempering is conducted at 180℃ – 200℃ to relieve quenching stresses and achieve peak impact toughness while maintaining a high working hardness of 58–61 HRC. To prevent micro-cracking during subsequent Wire EDM for internal shaft bores, a mandatory post-EDM stress-relief temper at 180℃ – 200℃ for 4 hours must be enforced.
  • For multi-shaft claw configurations subjected to severe operational shock loads, AISI H13 items must undergo high-temperature tempering cycles within 550℃ – 580℃. This drives complete secondary transformation and matrix stress-relief, establishing a stable tempered martensite structure that delivers its peak Charpy impact energy while targeting a hardness of 48–54 HRC.

7. Shredder Blade Geometry & Edge Engineering

The geometric design of a shredder blade determines its cutting efficiency, material throughput, and structural durability.

7.1 Single-Shaft Insert Architecture

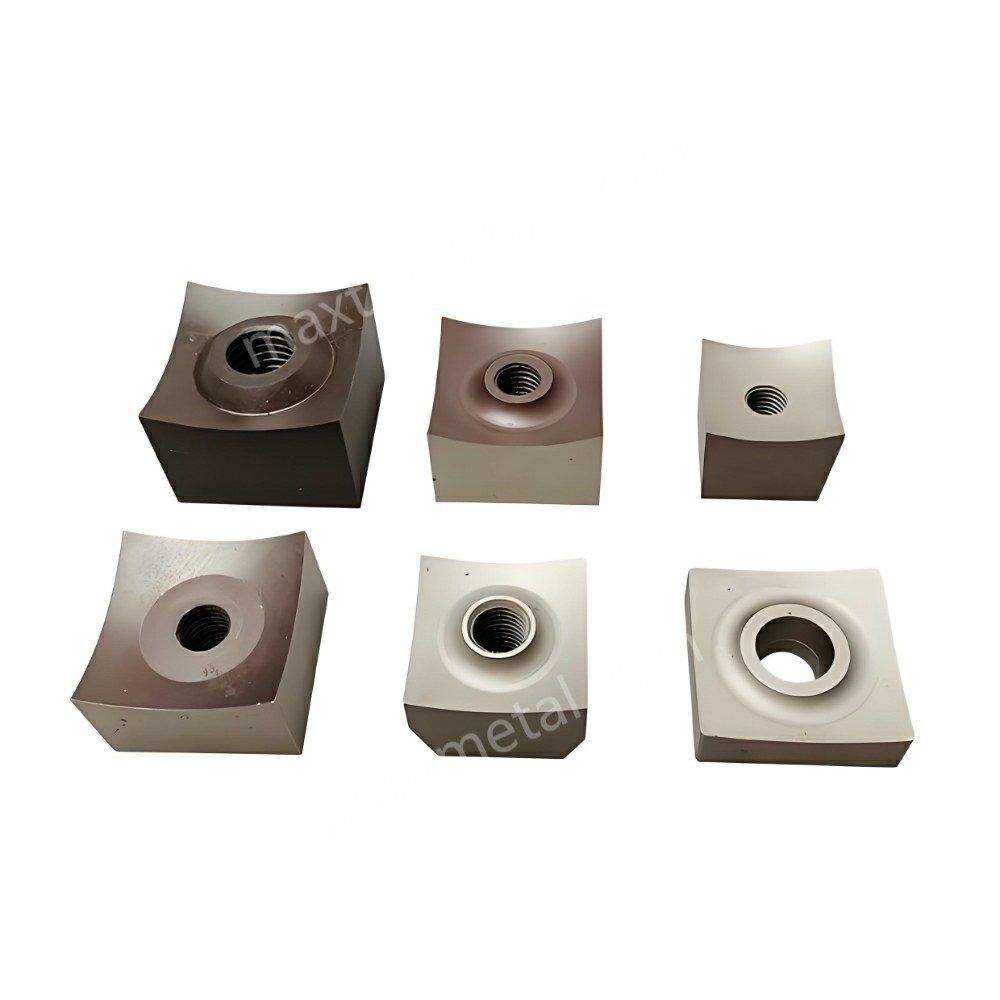

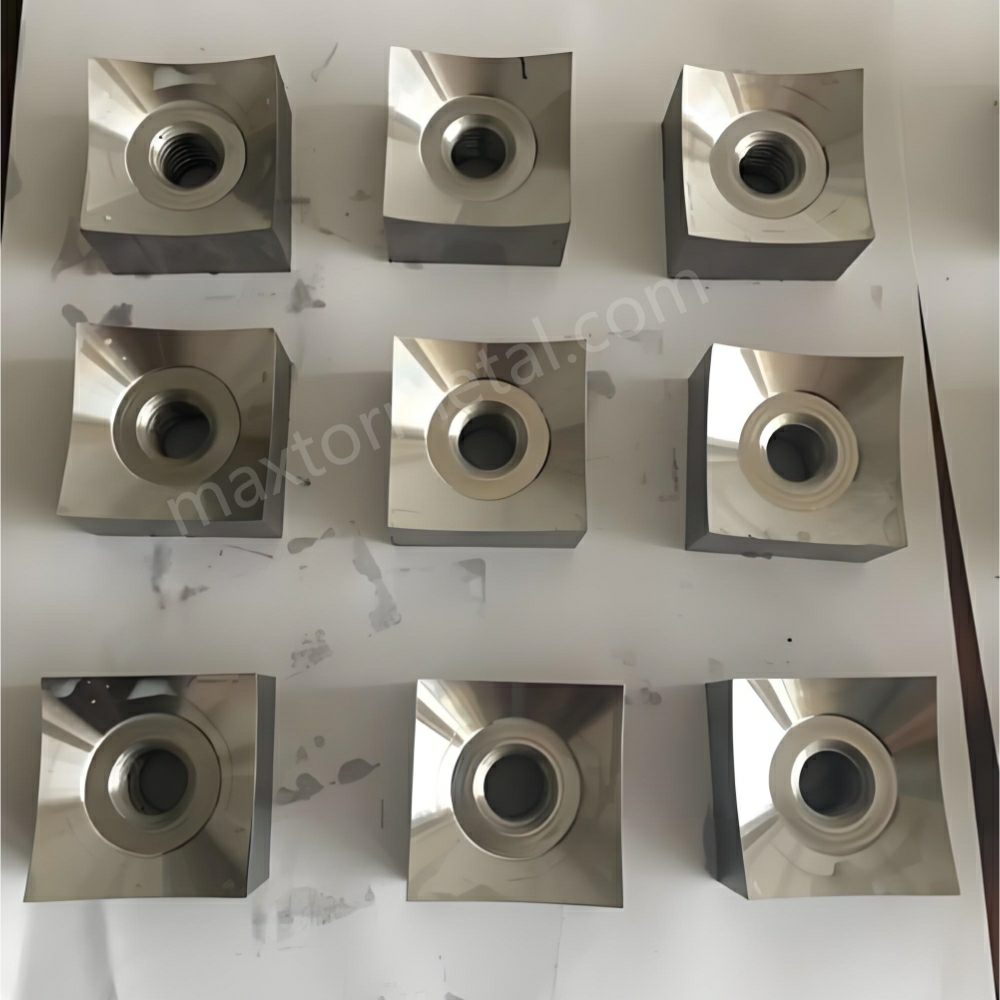

Single-shaft rotary knives are typically designed as multi-angle square concave inserts. The concave face creates an aggressive, positive rake angle (α = +10°to +15°) that helps pull material into the cutting zone, lowering the required drive motor power.

The center of the insert features a precision-machined countersunk hole designed to accept high-tensile socket head cap screws, securing the blade tightly into its rotor pocket. This pocket provides multi-surface support to absorb high radial and axial cutting forces.

7.2 Multi-Shaft Claw Profiles and Bore Mechanics

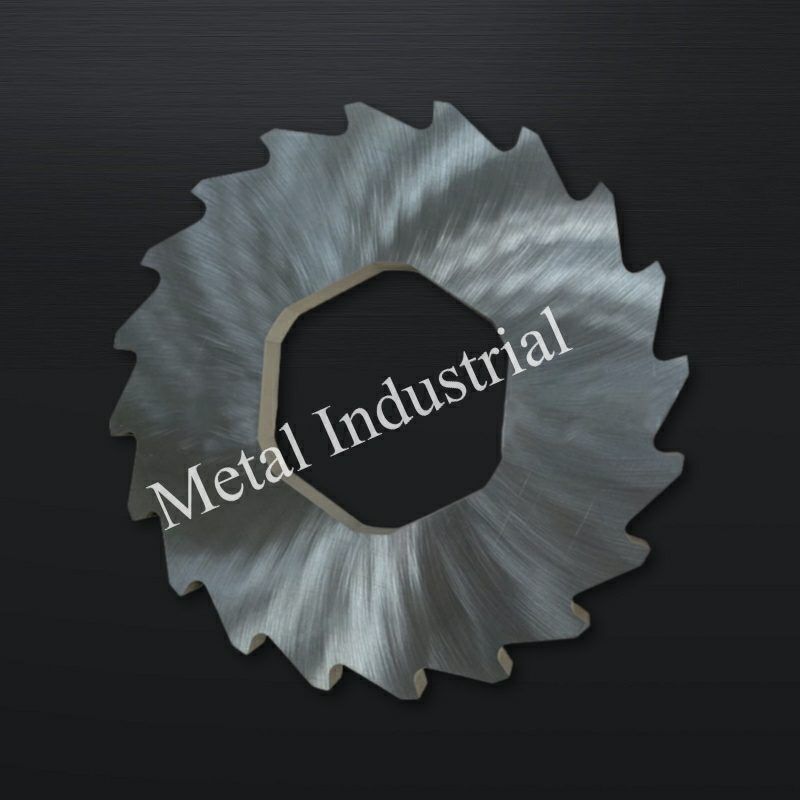

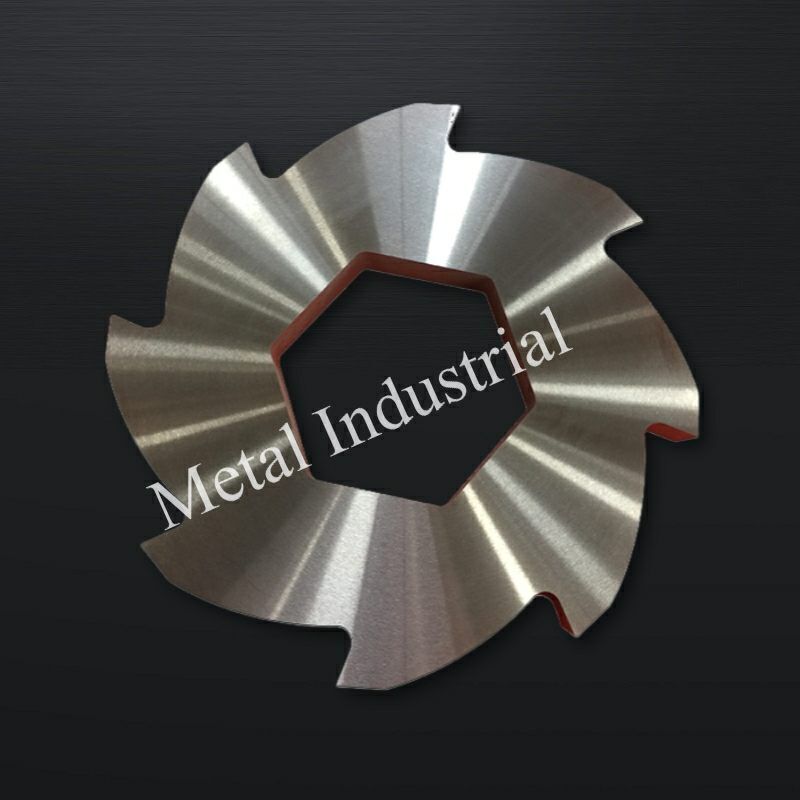

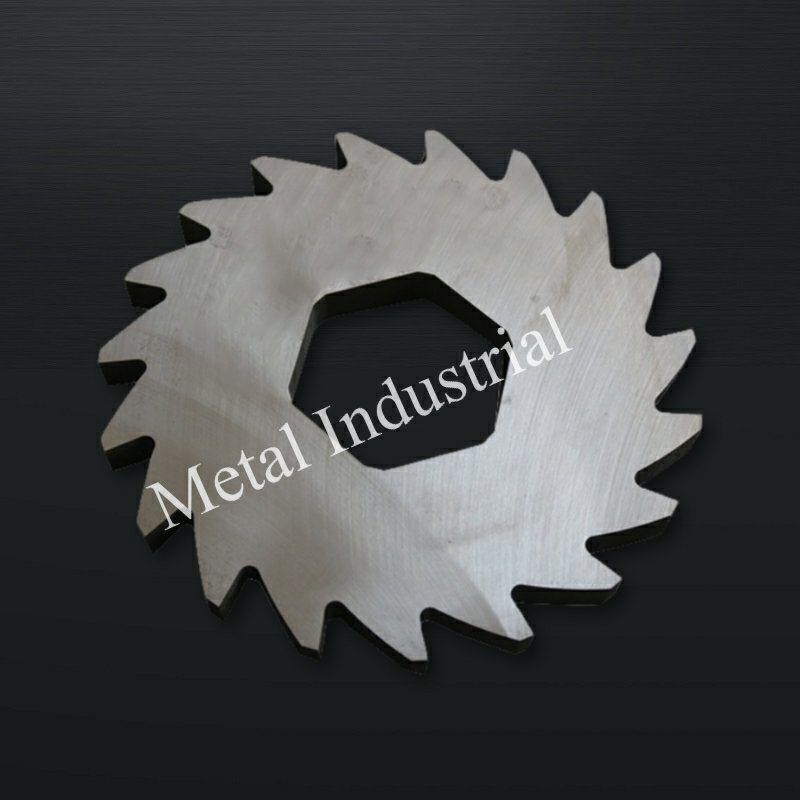

Multi-shaft blades are styled as disk cutters featuring a variable number of cutting claws (typically 3-claw, 5-claw, or 8-claw configurations).

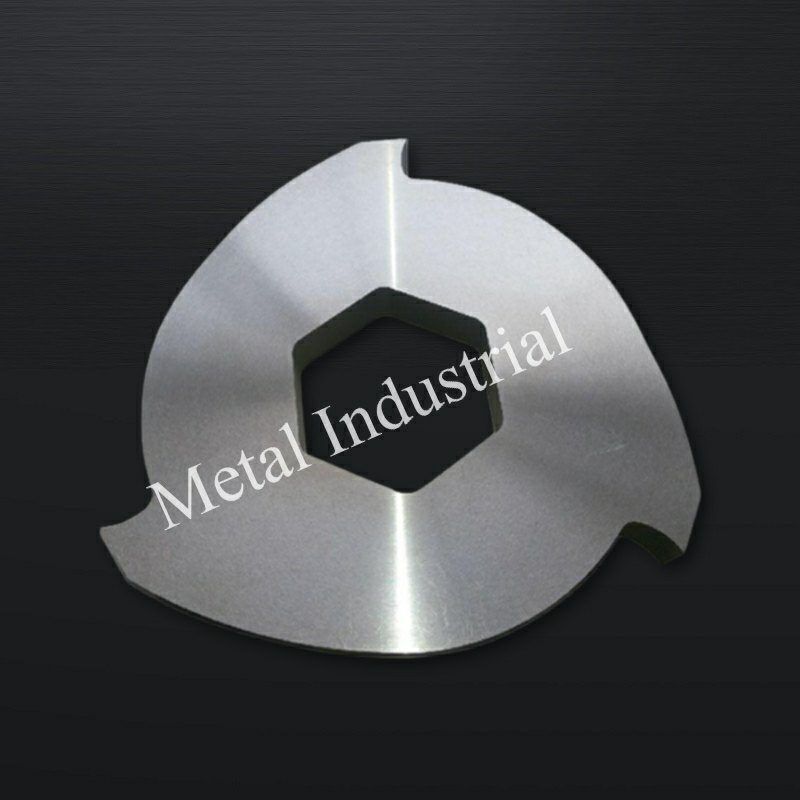

• 3-Claw Profile: Features deep, aggressive hooks with a tall profile, making it ideal for grabbing and tearing bulky, hollow items like plastic drums or car body shells.
• 8-Claw Profile: Features shorter, closely spaced claws designed for high-density, uniform sizing applications, such as tire shredding or fine biomass processing.

The design of the internal drive bore is critical for delivering high torque from the main drive shaft:

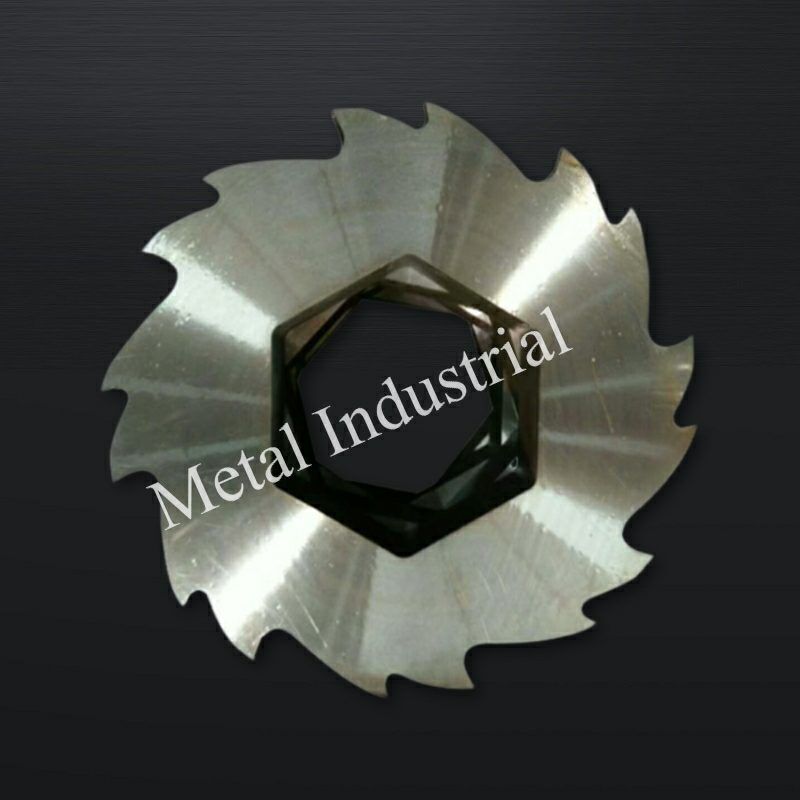

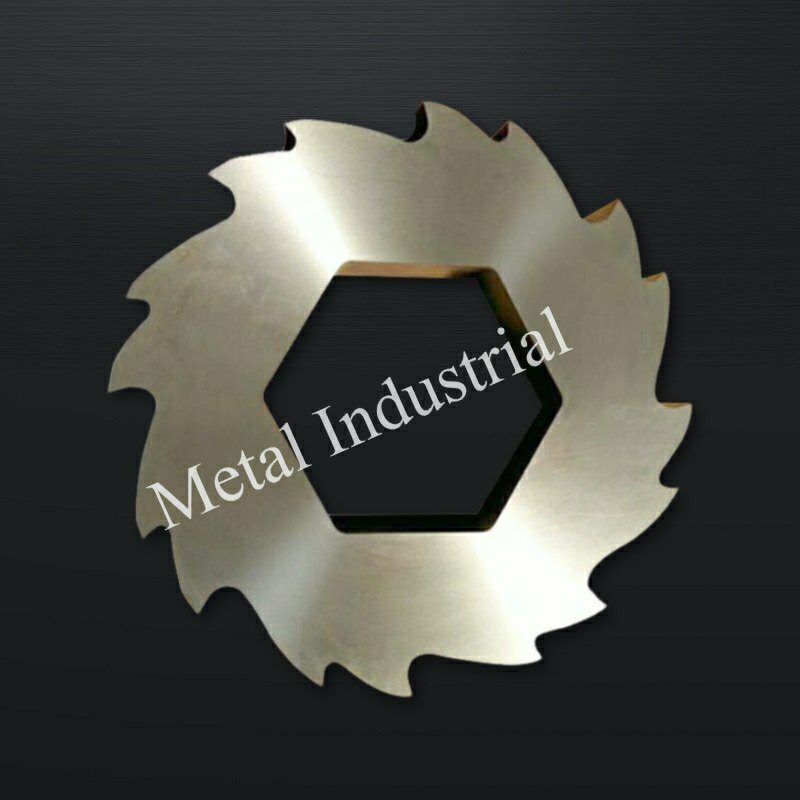

• Hexagonal / Octagonal Bores: Provide positive mechanical engagement but feature sharp internal corners that act as stress concentrators.
• Involute Spline Bores: Feature a series of matching internal teeth that distribute torsional loads evenly across the entire circumference. This design significantly reduces localized stress concentration, making it ideal for heavy-duty recycling operations.

8. Shredder Blades Manufacturing Process & Quality Inspection

To ensure reliable performance in demanding recycling environments, shredder blades must follow strict, quality-controlled manufacturing stages.

8.1 Advanced Manufacturing Workflow

Maxtor Metal’s standard manufacturing sequence for industrial shredder blades follows eight controlled stages:

1. Material Sourcing & Forging: Use clean, vacuum-degassed tool steel ingots. Perform 3D multi-directional forging to ensure uniform grain structure and break up coarse carbide bands.
2. Spheroidized Annealing: Heat-treat to produce a uniform distribution of granular carbides within a soft ferrite matrix, ensuring consistent machinability and dimensional stability.
3. CNC Rough Machining: Mill the core blade profiles, drill countersunk holes, and rough-turn the outer diameter, leaving a uniform 0.3mm – 0.5mm grinding allowance across all critical faces.
4. Vacuum Heat Treatment & Cryogenic Stabilization: Execute the complete vacuum hardening, liquid nitrogen deep freeze, and triple tempering sequence to fix the material’s microstructural properties.
5. Precision Super-Grinding: Use specialized CNC surface grinders equipped with vitrified CBN (Cubic Boron Nitride) or diamond wheels to finish the cutting edges to a smooth surface finish of Ra< 0.8μm.
6. Wire EDM Profiling (For Complex Bores): Use high-precision wire EDM to cut internal hexagonal or spline bores into the hardened blade body.
7. Low-Temperature Stress-Relief Tempering: Immediately temper the parts at 180℃ – 200℃ for a minimum of 4 hours to eliminate residual tensile stresses and the brittle EDM “white layer”.
8. Final Quality Control Inspection: Validate all dimensions using automated Coordinate Measuring Machines (CMM).

8.2 Metrology Protocols & Inspection Tolerances

Every finished blade must pass three quality control checks before release:

• End-Face Flatness Verification: Measured using an optical flat or high-precision digital indicator across the entire blade diameter. For high-precision applications, flatness variation must not exceed ±0.01mm.
• Dual-Face Parallelism Testing: The thickness variation between opposing parallel faces is verified at four symmetric points. Total thickness deviation must remain within ±0.05mm to ensure uniform seating when blades are stacked together on a multi-shaft assembly.

9. Case Studies

9.1 Case Study 1: Preventing Cracking in Industrial Silver Recycling

The following data comes from Maxtor Metal’s project support for a precious metals reclamation operator; the customer name has been anonymized.

• Industrial Operator Profile: A high-volume precious metals reclamation plant processing dense, high-purity industrial silver scrap.
• Original Equipment Configuration: Multi-shaft heavy shredder using standard AISI D2 steel blades through-hardened to 60 HRC. Internal drive engagement was handled via a standard wire EDM-cut internal hexagonal bore.
• Operational Failure Analysis: The original D2 blades frequently cracked and split from the sharp corners of the internal hex bore outward during early operation. Investigation revealed that the high torque required to process dense silver scrap amplified the residual tensile stresses left behind by the wire EDM process. The localized micro-cracking was heavily aggravated by the uncontrolled tensile stress fields generated during the legacy vendor’s post-EDM wire cutting, which omitted the critical stress-relief tempering protocol required to eliminate the brittle recast white layer. The large, brittle carbide structures typical of standard D2 steel could not absorb these combined loads, leading to rapid crack propagation and failure.



Evaluation of Engineering Solutions

Solution A: Upgrade to Material DC53

• Engineering Approach: Replace AISI D2 steel with premium DC53 cold-work tool steel while maintaining standard, high-efficiency manufacturing methods.
• Result Matrix: The fine, uniform carbide structure of DC53 doubled the material’s impact energy compared to D2. This increased toughness allowed the steel matrix to naturally absorb the residual stresses from the EDM process and handle the high torque loads without cracking. The blades maintained a high surface hardness of 58–60 HRC, preserving full wear life while shortening manufacturing lead times.

Solution B: Modify Manufacturing via a Four-Step Process

• Engineering Approach: Maintain the original AISI D2 material but completely restructure the manufacturing sequence to isolate and relieve internal stresses:
  1. Vacuum-harden the blank to a lower, tougher hardness level of 52 HRC.
  2. Rough-grind both faces, leaving a 0.1mm – 0.2mm machining allowance.
  3. Wire-EDM cut the internal hexagonal bore profile.
  4. Perform a long, low-temperature stress-relief temper at 180℃ – 200℃ to relieve internal tensile stresses before a final finish grind.
• Result Matrix: This process successfully prevented internal bore cracking and achieved a precise flatness tolerance of ±0.01mm. However, lowering the hardness to 52 HRC reduced the blades’ wear life by roughly 35%. This approach also significantly increased manufacturing costs, required more complex processing steps, and extended production lead times.
• Final Implementation Decision: The operator chose Solution A. Upgrading to DC53 eliminated the cracking failures, maintained optimal edge wear life, simplified manufacturing, and reduced overall tool production times.

9.2 Case Study 2: Extending Tool Life in Corrosive Organic Waste Processing

The following data comes from Maxtor Metal’s project support for a municipal solid waste processing facility; the customer name has been anonymized.

• Industrial Operator Profile: A municipal solid waste facility operating continuous organic waste and animal rendering lines.
• Original Equipment Configuration: Heavy-duty dual-shaft shredder fitted with standard AISI D2 tool steel multi-claw blades.
• Operational Failure Analysis: The original D2 blades showed severe surface rust and pitting corrosion within hours of processing acidic organic waste (pH < 4.5). This chemical corrosion quickly dulled the cutting edges, causing fibrous materials to wrap around the shafts and clog the machine. The resulting friction led to high operating temperatures, motor overloads, and frequent unscheduled maintenance shutdowns.
• Implemented Engineering Redesign: The D2 blades were replaced with high-carbon martensitic stainless steel (AISI 440C), vacuum-hardened and low-temperature tempered to a stable 59 HRC. The side clearance gaps were also opened to 0.25 mm using wider, corrosion-resistant spacers to handle thermal expansion.
• Quantified Performance Improvement: The upgraded AISI 440C stainless blades resisted organic acid pitting, maintaining a clean cutting edge over long runs. Continuous operating life between sharpening intervals increased from 72 hours to 300 – 580 hours depending on waste stream acidity and throughput rate. Frictional heat generation was significantly reduced, eliminating thermal clogging and lowering overall motor power consumption by 14%.

10. FAQ Section

Q1: Why does AISI D2 steel often chip or fail when shredding mixed municipal solid waste?

A1: AISI D2 contains large, non-uniform chromium carbides that form during solidification. These carbide bands are brittle and act as internal stress concentrators. When the shredder encounters uncrushable tramp metal or heavy stones, the sudden impact loads exceed the fracture toughness of the D2 matrix, leading to micro-chipping or major body cracks.

Q2: How does upgrading to DC53 help prevent shredder blades from cracking?

A2: DC53 reduces the large chromium carbide bands typical of D2, replacing them with a fine, uniform carbide distribution. Based on Maxtor Metal’s material qualification testing, this microstructural adjustment approximately doubles the Charpy V-notch impact energy compared to standard D2 at equivalent working hardness (58–60 HRC), allowing the blade to better absorb sudden impacts and high torque without fracturing.

Q3: What is the optimal side clearance gap for multi-shaft shredder blades, and why is it necessary?

A3: Based on Maxtor Metal’s multi-shaft assembly specifications, the standard single-side clearance gap ranges from 0.15 mm to 0.40 mm, achieved by making the spacer collar 0.3 mm to 0.8 mm wider than the blade thickness. This built-in clearance accommodates thickness tolerances (ISO 2768-mK) and allows the blades to expand freely as friction heats them up during operation, preventing axial binding and seizure.

Q4: When should Tungsten Carbide inserts be used instead of solid tool steel for single-shaft shredders?

A4: Tungsten Carbide inserts are ideal for high-abrasion applications with low risk of heavy impact, such as shredding agricultural film contaminated with sand or processing glass-fiber reinforced engineering plastics. The carbide tips provide high hardness (89–92 HRA) to resist abrasive wear, while a tough steel base like AISI 4140 provides structural support.

Q5: Why is deep cryogenic treatment (-196℃) recommended for heavy-duty shredder blades?

A5: Cryogenic treatment forces unstable retained austenite to transform completely into stable martensite. In Maxtor Metal’s heat treatment protocol, blades are held at −196℃ for 12 to 24 hours following quench, eliminating residual microstructural stresses that could cause warping or distortion in service, and promoting the precipitation of fine secondary carbides that improve overall wear resistance.

Q6: What causes inner drive bores (hex or octagonal) to split open, and how can this be fixed?

A6: Finishing internal drive bores with wire EDM creates a thin, brittle “white layer” on the steel surface that contains high residual tensile stresses. The sharp corners of hexagonal or octagonal bores also naturally concentrate stress. Under heavy torque, cracks can easily initiate at these corners and propagate outward. This can be prevented by applying a post-EDM stress-relief temper at 180℃ – 200℃ or by upgrading the blade material to high-toughness DC53.

Q7: Which blade material is best for processing corrosive organic food waste?

A7: For organic waste containing high moisture and acids, AISI 420 or AISI 440C martensitic stainless steels are recommended. AISI 420 provides good impact toughness for mixed waste streams, while AISI 440C offers higher hardness (58–60 HRC) and excellent edge retention for high-volume rendering applications, such as carcass processing.

Q8: What surface finish is required for single-shaft rotary blade faces?

A8: Per Maxtor Metal’s grinding and inspection standards, the concave cutting face must be precision-ground to Ra < 0.8 μm to maintain a sharp, low-friction cutting edge, while the flat mounting seats require Ra < 1.6 μm to ensure rigid, secure seating in the rotor pocket.

Q9: Why are standard tool steels ineffective for animal rendering and carcass processing?

A9: Animal fluids contain high concentrations of organic acids and salts that cause standard tool steels like D2 or DC53 to rust and pit rapidly. This corrosive wear breaks down the steel matrix and quickly dulls the cutting edge, leading to material wrapping, friction, and eventual machine overload. Martensitic stainless steels like AISI 440C are required to withstand these conditions.

Q10: What is the purpose of a PVD TiN coating on single-shaft stator blades?

A10: A Titanium Nitride (TiN) coating increases surface hardness to over 2000 HV on the primary shearing faces. This coating acts as a barrier against abrasive wear, making it highly effective for precision applications like electrical cable recycling, where maintaining a clean, sharp edge is critical to preventing insulation smearing.

Q11: How does a 3-claw multi-shaft blade profile differ in application from an 8-claw profile?

A11: A 3-claw profile features tall, aggressive hooks designed to grab and rip bulky, hollow materials like plastic drums, tires, or car scrap. An 8-claw profile features shorter, more frequent hooks that provide less aggressive tearing but deliver higher, more uniform sizing, making it ideal for processing loose biomass or shredded rubber.

Q12: Why are dimensional tolerances for single-shaft blade bases restricted to ±0.02mm?

A12: Single-shaft shredders operate with a high-frequency, pulsing cutting action. Maxtor Metal enforces a strict ±0.02 mm tolerance on blade base seating and locator faces — verified via precision CNC grinding — to ensure a rigid fit within the rotor pocket and prevent the micro-movements that cause fatigue failure of the primary fastening bolts.

Q13: What engineering trade-offs occur when lowering blade hardness to improve toughness?

A13: Lowering a blade’s hardness (for example, tempering D2 steel down to 52 HRC) increases its impact toughness and resistance to cracking. However, this reduces its abrasive wear resistance, meaning the cutting edges will dull faster and require more frequent sharpening or replacement, which increases operational downtime.

Q14: What is the benefit of an involute spline bore over a standard hexagonal bore for multi-shaft drives?

A14: A hexagonal bore concentrates torsional stresses at its six sharp corners, which can lead to fatigue cracks over time. An involute spline bore uses a series of curved teeth to distribute driving torque evenly across the entire circumference of the shaft, significantly lowering localized stress and extending blade life under heavy loads.

Q15: How can you identify if a blade failure was caused by abrasive wear versus impact fatigue?

A15: Abrasive wear shows up as smooth micro-grooves, scratches, and a gradual rounding of the cutting edge over time. Impact fatigue causes sudden micro-chipping, spalling, or large, jagged cracks across the blade body, typically triggered by encountering an uncrushable object.

Final Engineering CTA

Optimize Your Shredder System Throughput

Does your production line experience frequent downtime due to blade chipping, corner cracking, or rapid wear? Shifting from generic replacement parts to precision-engineered shredder blades can stabilize your processing costs and improve system reliability.

Maxtor Metal’s engineering team can review your system drawings and material requirements to develop customized solutions:

• Custom Alloy Matching: We select and treat materials (including DC53, M6V, and AISI 440C) based on your specific waste stream dynamics.
• Precision Manufacturing: All parts are finished with advanced vacuum heat treatments, cryogenic stabilization, and precision CNC grinding down to ±0.01mm tolerances.
• Direct RFQ Support: Submit your CAD files (.STEP, .DWG) or OEM part numbers today for a detailed technical review and production quote.

Contact our engineering consulting office directly to speak with an industrial knife specialist.

---

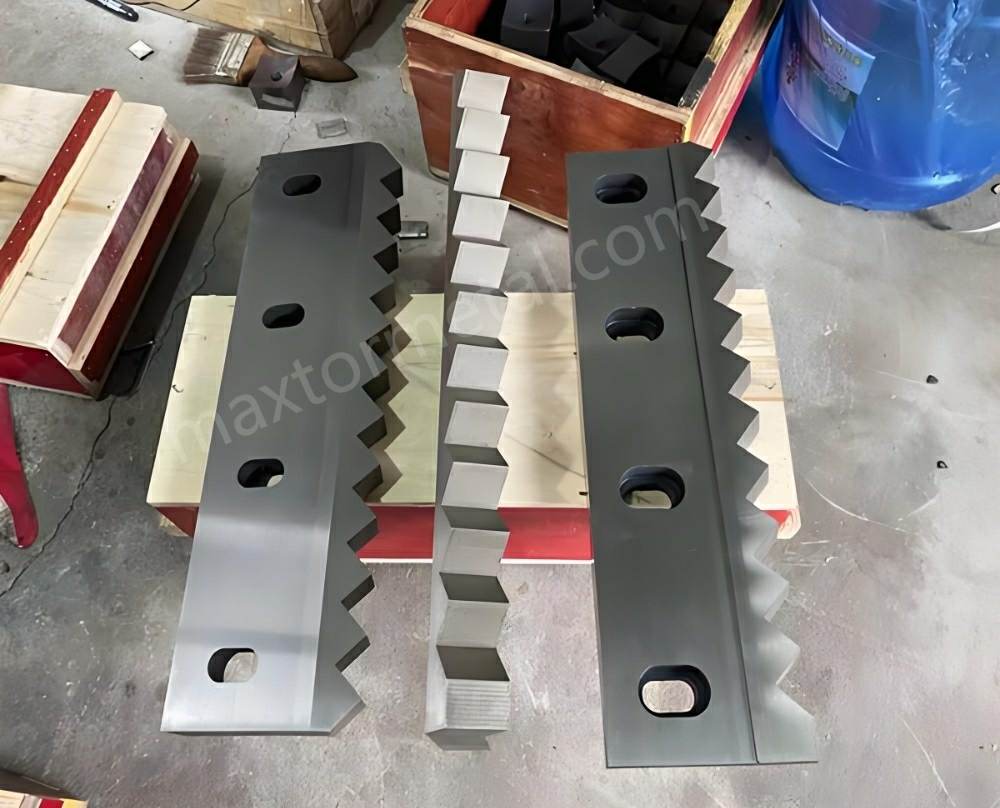

Shredding Blades Display:



---

Video：

---

Related Blogs:

1. Comprehensive Analysis of Dual-Shaft Shredders

2. Comprehensive Guide to Single Shaft Shredders: Types, Working Process, Components, Maintenance and Blade

3. Shredder Blades: Analysis of Classification, Material Selection, Service Life, and Design Techniques

More blogs……
