| Other Names | Bevelled Blade Strip, Continuous Steel Blade, Grid Blade Material, Steel Blade Reel |
|---|---|
| Material | 440C, 420, C100S, C75, SK5 |
| Model Number | FD-BSS |
| OEM Service | Available |
| Payment Terms | L/C, T/T, Western Union, XTransfer |
| Package | Carton box, In wooden cases |
| Delivery Time | Based on Quantity |
Share to:

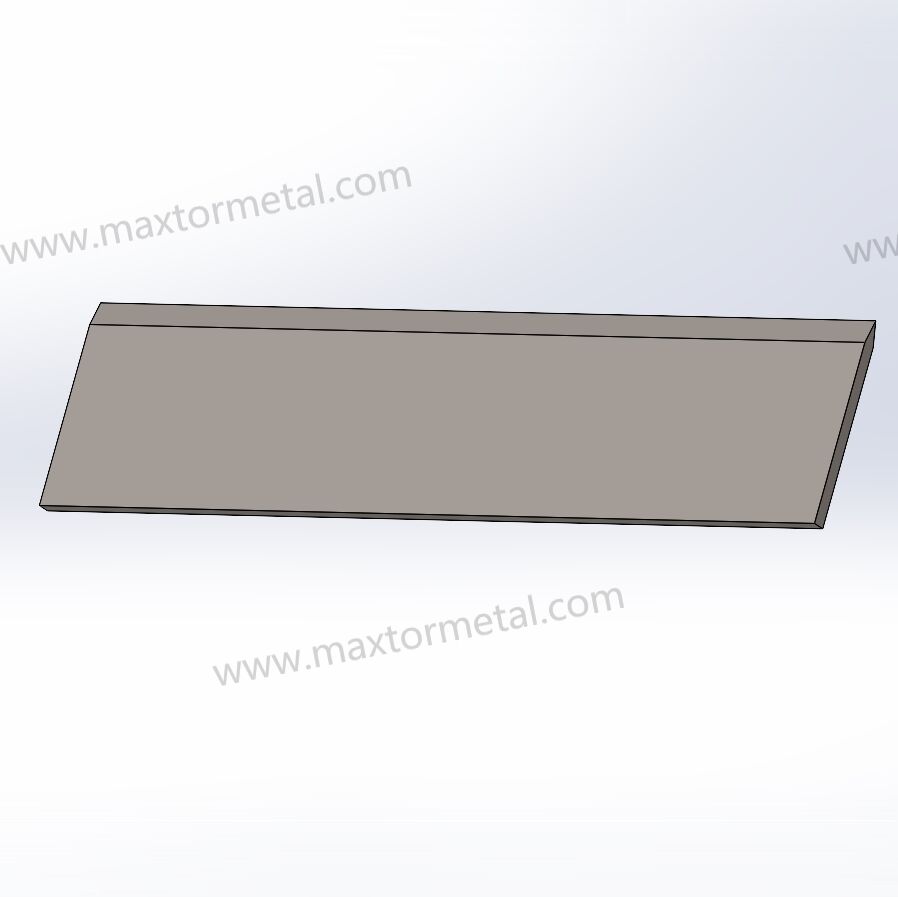

Blade Strip Steel (also known as Bevelled Blade Strip or Continuous Blade Steel) is a high-precision industrial cutting material supplied in a continuous coiled format. Unlike standard pre-cut blades, Bevelled Blade Strip allows manufacturers to cut the exact length required for their specific machinery. The primary advantage of using Blade Strip Steel in a reel format is the significant reduction in machine downtime—since the tool change frequency is lowered—and the minimization of material waste, as each segment can be precisely tailored to the task.
The adaptability of Blade Strip Steel makes it indispensable across multiple industries:
Grid Blade Manufacturing: The most common use where Bevelled Blade Strip is notched and assembled into interlocking grids for industrial vegetable and meat dicing.
Automated Food Processing: Used as a continuous cutting element in reciprocating slicers for bread, cake, and protein.
Converting & Packaging: Ideal for slitting flexible materials like plastic films, foam, rubber, and non-woven fabrics.
Textile Processing: Bevelled Blade Strip provides a sharp, continuous edge for high-speed fabric trimming and leather splitting.
Choosing the right grade of Blade Strip Steel ensures optimal performance:
Stainless Steel (e.g., 420, 440, 7C27Mo2): Offers exceptional corrosion resistance and hygiene. It is the standard Blade Strip Steel for food and medical industries.
High Carbon Steel (e.g., SK5, C100S): Known for superior hardness (up to HRC 62) and edge retention. This Blade Strip Steel is best for heavy-duty industrial cutting where wear resistance is critical.
Blade Strip Steel is defined by its edge profile and continuous format:

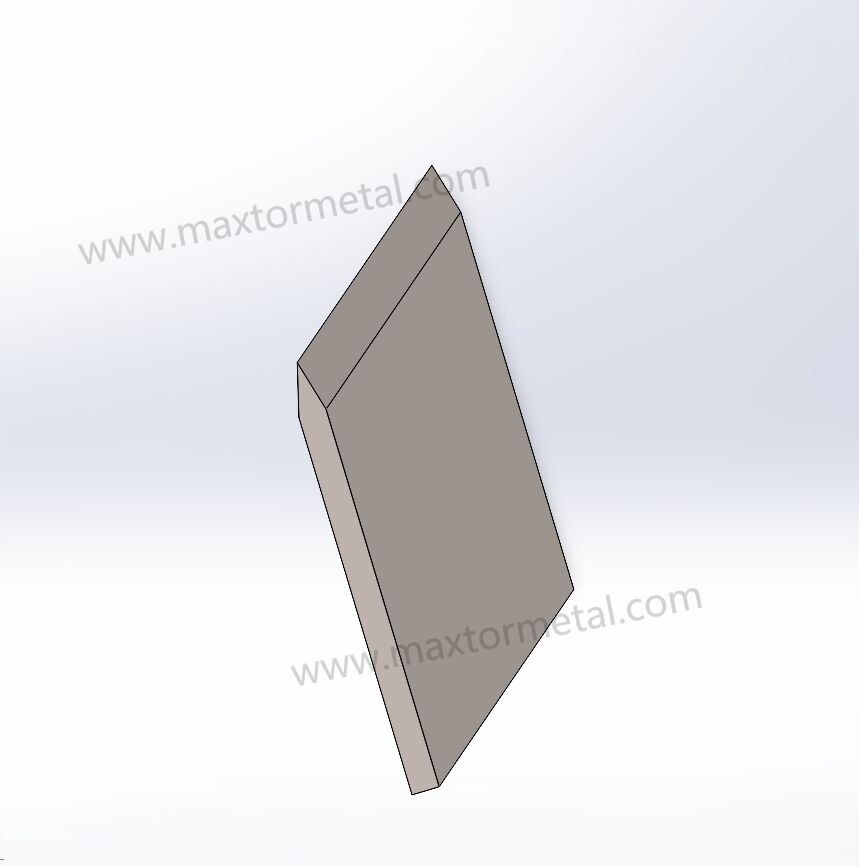

Single Bevel (Chisel Edge): Sharpened on one side, allowing for a straight cut against a flat surface or anvil.
Double Bevel (V-Shape): Sharpened on both sides for balanced cutting and deep penetration into thick materials.

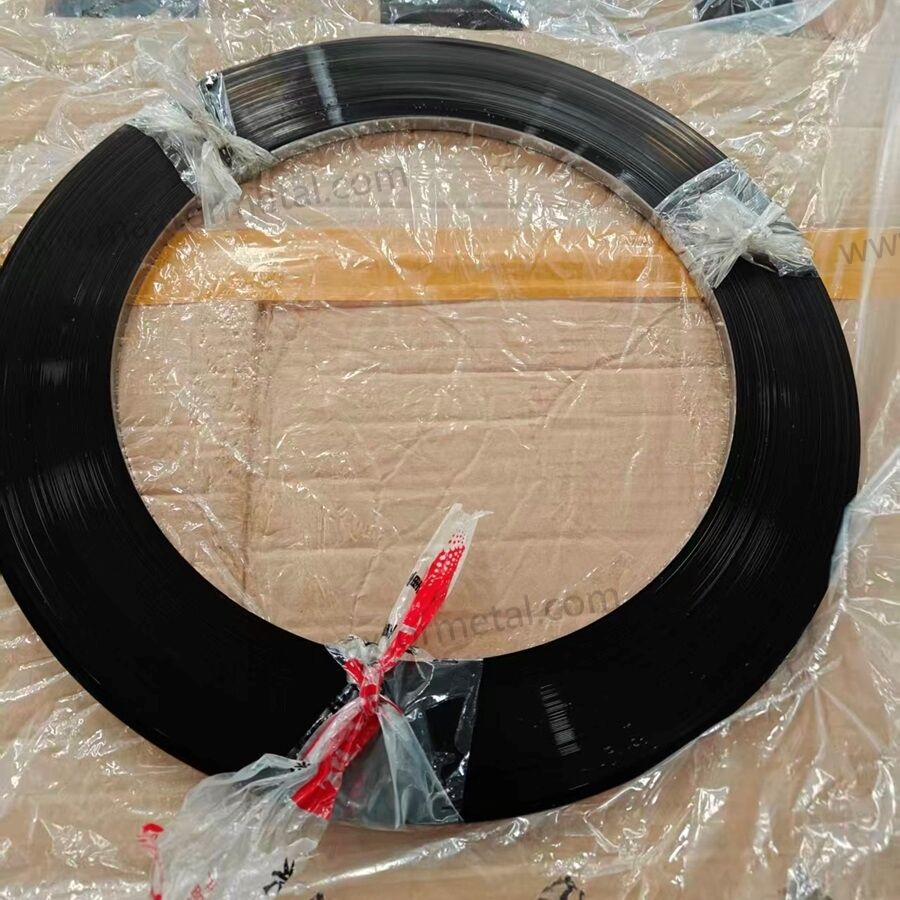

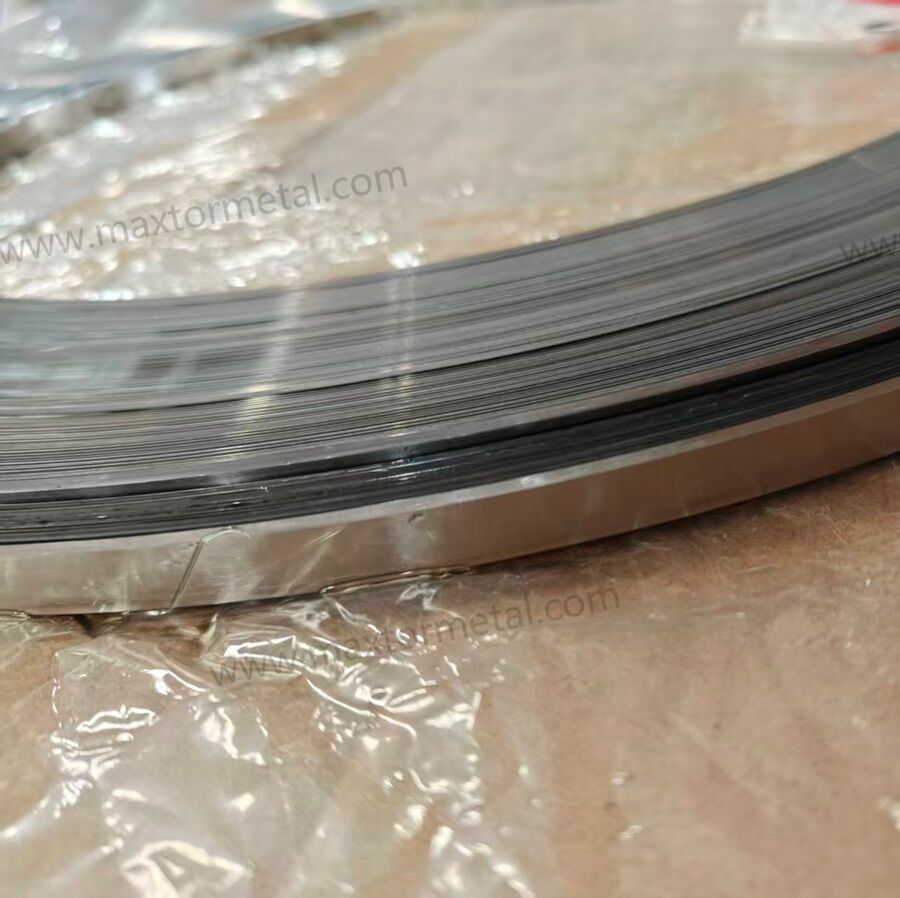

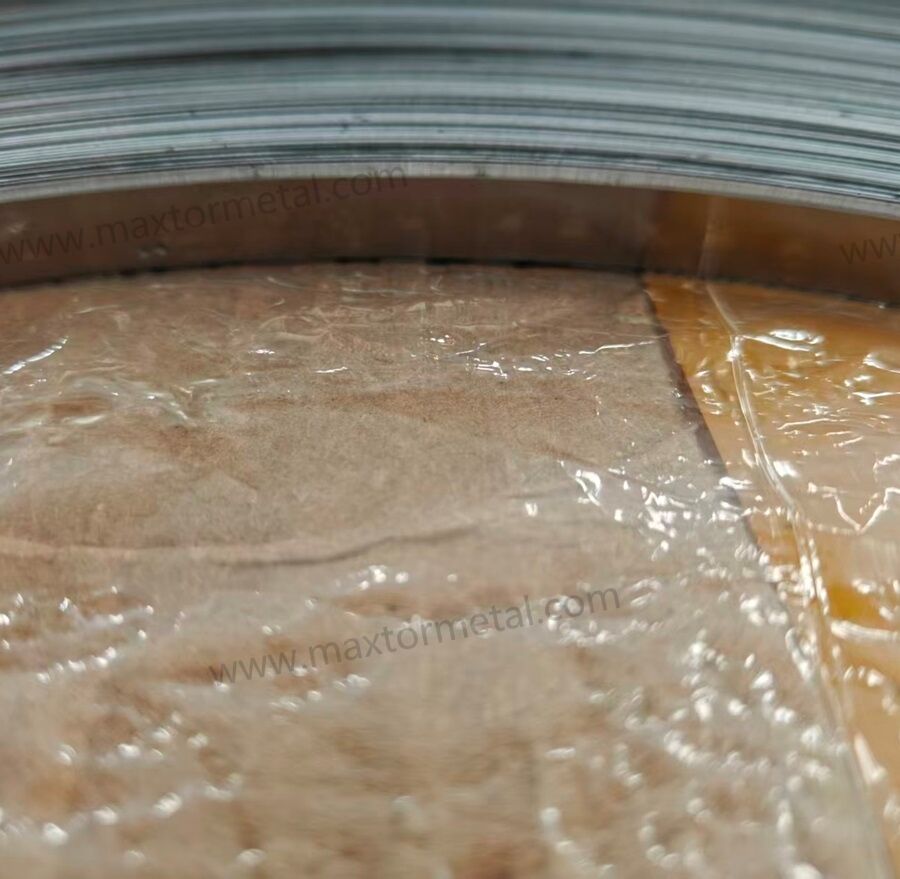

Coiled Format: The Blade Strip Steel is wound onto reels (100m/200m), working alongside a decoiler or tensioner to feed directly into the production line.
Not only do we offer standard-sized knives, but we also offer special knives designed to improve your productivity. All you need to do is provide drawings or samples.
Contact our friendly sales team today and they’ll help assess your specific needs and provide you with proven upgrade options. Alternatively, submit a quote request.
A: Most industrial Blade Strip Steel ranges from 0.10mm to 2.0mm. Common thicknesses for grid blades are 0.45mm and 0.70mm.
A: Yes. While standard widths range from 8mm to 100mm, we can slit the Blade Strip Steel to any specific width required by your equipment.
A: A continuous Blade Strip Steel reel allows for “cut-to-length” flexibility, reducing inventory of different blade sizes and significantly lowering machine downtime during setup.
A: Carbon steel Blade Strip Steel should be kept in a dry environment and lightly oiled. For applications involving moisture, we recommend our stainless steel variants.
A: Depending on the material, our Blade Strip Steel ranges from HRC 45 to HRC 62, ensuring the perfect balance between toughness and sharpness.
A: Yes, our stainless steel Blade Strip Steel (420/440 grade) is food-safe and widely used in meat and vegetable dicing machinery.
A: Absolutely. Our Blade Strip Steel is heat-treated to allow for secondary processing like notching and punching while maintaining edge integrity.
A: Standard reels are 100m or 200m, but we can provide continuous Blade Strip Steel up to 500m depending on the thickness and width.
A: While the Blade Strip Steel arrives razor-sharp, it can be re-sharpened using standard industrial grinding equipment suitable for the specific bevel type.

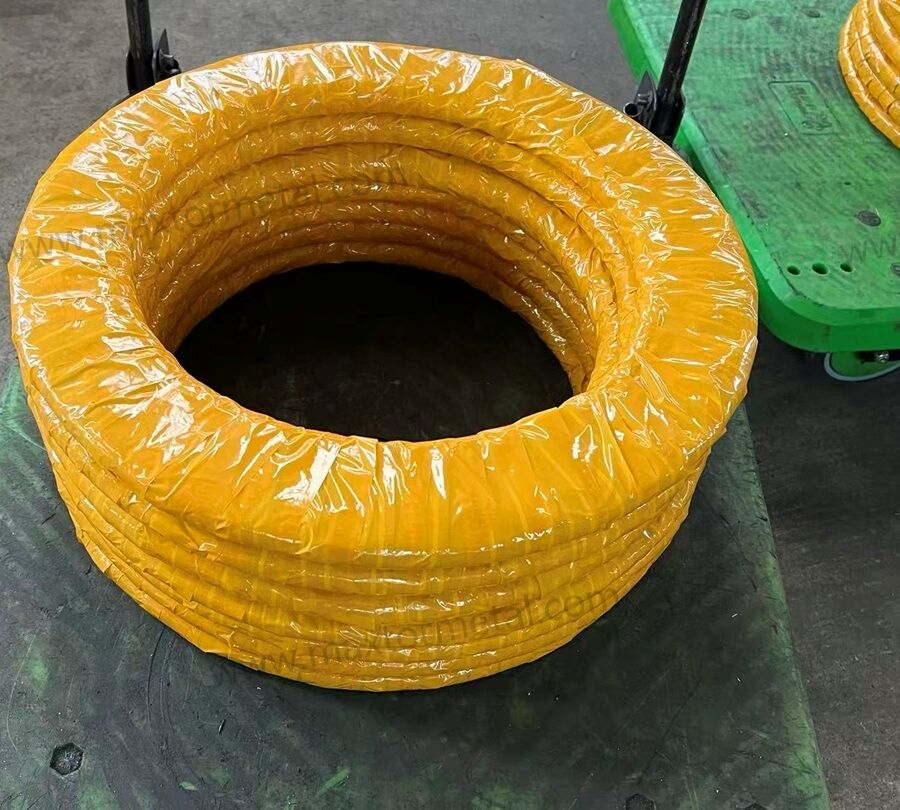

A: We package Blade Strip Steel in reinforced wooden crates or heavy-duty cartons with anti-rust wrapping to ensure they arrive in perfect condition.
1. One-stop hassle-free import service
Easy to enjoy the convenience of importing, from transportation to customs clearance, we handle the whole process, you just need to pay VAT and wait for the goods to arrive at the company.
2. Competitive Pricing
We have seen its blades used in countless applications and is ready to handle whatever project you throw our way -delivering accuracy, durability, and unmatched competitive pricing.
3. ODM & OEM Available
Whether you provide drawings, sketches or samples, we are able to draw and manufacture for you. We also have the ability to assist in modifying existing designs and specifications to improve almost any industrial tooling application. Please contact our dedicated sales team to discuss your specific requirements.
4. Quality Control
A series of testing and inspections are performed to control quality, including first article inspection, Incoming material inspection, and materials certified, In-process quality inspection, Final quality inspection.
5. Flexible procurement, unlimited cooperation
Whether you are an importer, distributor, wholesaler or end-user, we welcome you to join us with a minimum MOQ, no hassle for inquiry and more freedom for purchasing.
6. Overseas monitor, production progress real-time report
Become your exclusive monitor, regular transmission of every important node in the production line, no matter how far away, the progress of the product as far as possible to grasp!
